New machine · Articulating boom lifts
Haulotte HA16 E
Need a lift that reaches over an obstacle? Haulotte HA16 E is a cherry picker with a vertical reach of 16 m and a side reach of 7.9 m, capacity 300 kg. The articulating arm clears structures and gets to places a straight boom cannot. New machine with the manufacturer's warranty; RK Rental arranges transport, servicing and UDT operator training throughout the country.
We will prepare a quote for Haulotte HA16 E with the current price and availability.
Prefer to write or call directly?
Brand new · manufacturer's warranty · delivery across Poland
Your logo on the machine
Before handover we will brand the Haulotte HA16 E with your company logo or with a telephone number cut out of vinyl. Send us the logo or a ready design, and if you do not have one, a graphic designer we work with will prepare it. The price is agreed individually and we give it in the offer.
What are the technical specifications of Haulotte HA16 E?
- Working height
- 16 m
- Platform height
- 14 m
- Capacity
- 300 kg
- Horizontal outreach
- 7.9 m
- Power source
- Electric
- Drive
- 4WD
- Weight
- 7,030 kg
- Tyres
- Rough terrain, non-marking
- Intended use
- Indoor / outdoor
- Platform occupants
- 2
- Maximum reach
- 7.9 m
- Maximum articulation height
- 7.9 m
- Maximum capacity
- 300 kg
- Platform dimensions
- 1.8 × 0.8 m (option 2.44 × 0.9 m)
- Tail swing
- 16.2 cm
- Permissible tilt angle
- 5°
- Drive speed
- 0.5 - 4.9 km/h
- Outdoor use up to a maximum wind speed of
- 45 km/h
- Maximum gradeability
- 40%
- Outside turning radius
- 5.05 m
- Total weight
- 7030 kg
- Batteries
- 48 V - 390 Ah (C20)
- Warranty
- Manufacturer's

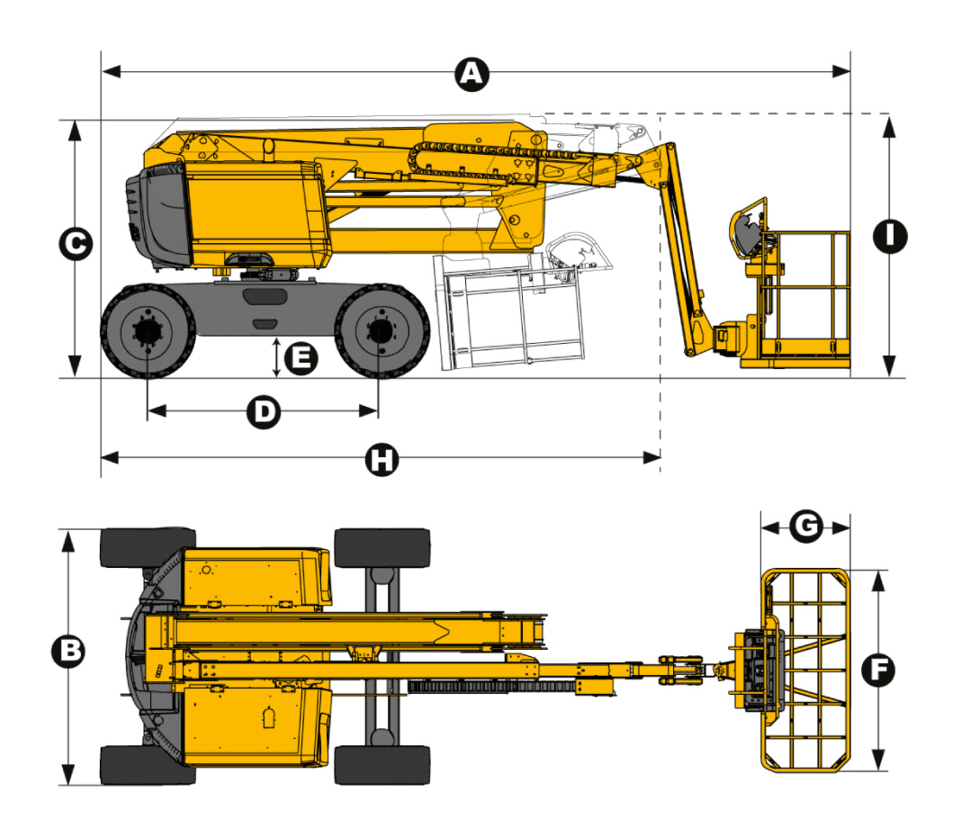

What are the dimensions of Haulotte HA16 E?
- AOverall length
- 6.78 m
- BWidth
- 2.3 m
- CHeight
- 2.29 m
- DWheelbase
- 2.11 m
- EGround clearance
- 23.5 cm
- FPlatform width
- 0.8 m
- GPlatform length
- 1.8 m
- HTransport length
- 5.79 m
- ITransport height
- 3 m
Need a slightly different machine?
Explore similar machines
If this exact model is not available, we will find a similar machine with a similar working height and capacity. Ask us and we will help you choose.
Haulotte HA16 E PRO
Genie Z-45 DC
LGMG AR14JE-2
Skyjack SJ45 AJE+
Haulotte HA16 E: frequently asked questions
What is the working height of Haulotte HA16 E?
The working height of Haulotte HA16 E is 16 m, the platform height 14 m. Working height is the platform height plus the reach of the person working on it (2 m is assumed).
What is the capacity of Haulotte HA16 E?
The platform capacity of Haulotte HA16 E is 300 kg (people on the platform: 2). The capacity covers the operator, tools and material.
What is the outreach of Haulotte HA16 E?
Haulotte HA16 E has a horizontal outreach of 7.9 m. This is how far the machine reaches sideways from the chassis, that is, over obstacles such as a spoil heap, a ditch, greenery or parked cars.
Is Haulotte HA16 E suitable for use inside buildings?
Yes. Haulotte HA16 E has electric (battery) drive, so it works without exhaust fumes and quietly, including in halls and warehouses. Power source: electric, drive: 4WD, tyres: rough terrain, non-marking. Intended use according to the manufacturer: indoor / outdoor.
How much does Haulotte HA16 E weigh and how do I transport it?
Haulotte HA16 E: transport dimensions 5.79 × 2.3 × 3 m, weight 7,030 kg. These figures determine the choice of trailer and whether the floor or ground can carry the machine. We arrange transport anywhere in Poland.
How much does Haulotte HA16 E cost?
We quote the price of Haulotte HA16 E individually, because it depends on the configuration, availability and delivery date. Send an enquiry and we will prepare an offer with the net price and delivery date.
Does RK Rental service Haulotte machines?
Yes. We service Haulotte lifts: periodic inspections, repairs, preparation for the UDT inspection and parts. Our mobile service comes to the machine on site or to your company premises.
