New machine · Telescopic boom lifts
Haulotte HT23 RTJ O
Looking for a lift with a long reach? Haulotte HT23 RTJ O is a telescopic cherry picker with a height of 22.5 m and a horizontal outreach of 18.3 m, capacity 230 kg. The telescopic arm takes the basket far and high, for work on large sites, in halls and in industry. Sale of a brand new machine with the manufacturer's warranty. RK Rental provides delivery, service and UDT operator training across Poland.
We will prepare a quote for Haulotte HT23 RTJ O with the current price and availability.
Prefer to write or call directly?
Brand new · manufacturer's warranty · delivery across Poland
Your logo on the machine
Before handover we will brand the Haulotte HT23 RTJ O with your company logo or with a telephone number cut out of vinyl. Send us the logo or a ready design, and if you do not have one, a graphic designer we work with will prepare it. The price is agreed individually and we give it in the offer.
What are the technical specifications of Haulotte HT23 RTJ O?
- Working height
- 22.5 m
- Platform height
- 20.5 m
- Capacity
- 230 kg
- Horizontal outreach
- 18.3 m
- Power source
- Diesel
- Drive
- 4WD
- Weight
- 13,320 kg
- Tyres
- Rough terrain
- Intended use
- Outdoor
- Platform occupants
- 2
- Maximum reach
- 18.3 m
- Reach below ground level
- 4 m
- Maximum capacity
- 230 kg (2 people), option 450 kg (3 people)
- Platform dimensions
- 2.44 × 0.91 m
- Transport height
- 3.3 m
- Jib vertical articulation angle
- 133° (+68/-65)
- Platform rotation angle
- 180° (+90/-90)
- Boom elevation angle
- 90° (+75/-15)
- Turntable rotation angle
- 360° continuous
- Permissible tilt angle
- 5°
- Drive speed
- 0.5 - 6.5 km/h
- Outdoor use up to a maximum wind speed of
- 45 km/h
- Maximum gradeability
- 40%
- Outside turning radius
- 6.3 m
- Foam-filled tyres
- 385/65 - 22.5
- Fuel tank capacity
- 166 l
- Engine
- Kubota 37 kW, (stage 5); Kubota 36.5 kW (LRC & China 4)
- Total weight
- 13,320 kg
- Warranty
- Manufacturer's

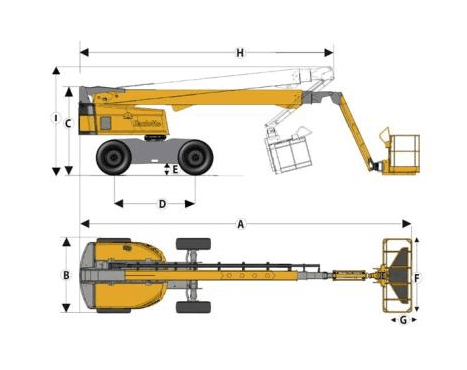

What are the dimensions of Haulotte HT23 RTJ O?
- AOverall length
- 10.4 m
- BWidth
- 2.47 m
- CHeight
- 2.7 m
- DWheelbase
- 2.5 m
- EGround clearance
- 34 cm
- FPlatform width
- 0.91 m
- GPlatform length
- 2.44 m
- HTransport length
- 7.8 m
Need a slightly different machine?
Explore similar machines
If this exact model is not available, we will find a similar machine with a similar working height and capacity. Ask us and we will help you choose.

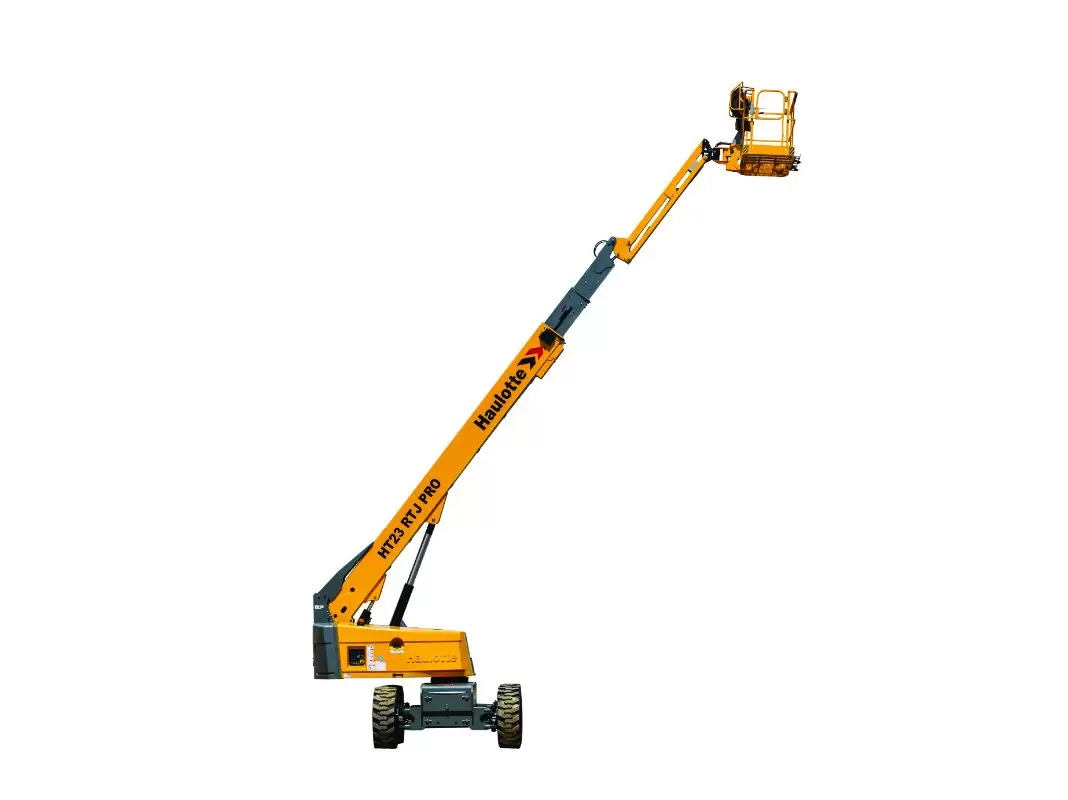

Haulotte HT23 RTJ PRO

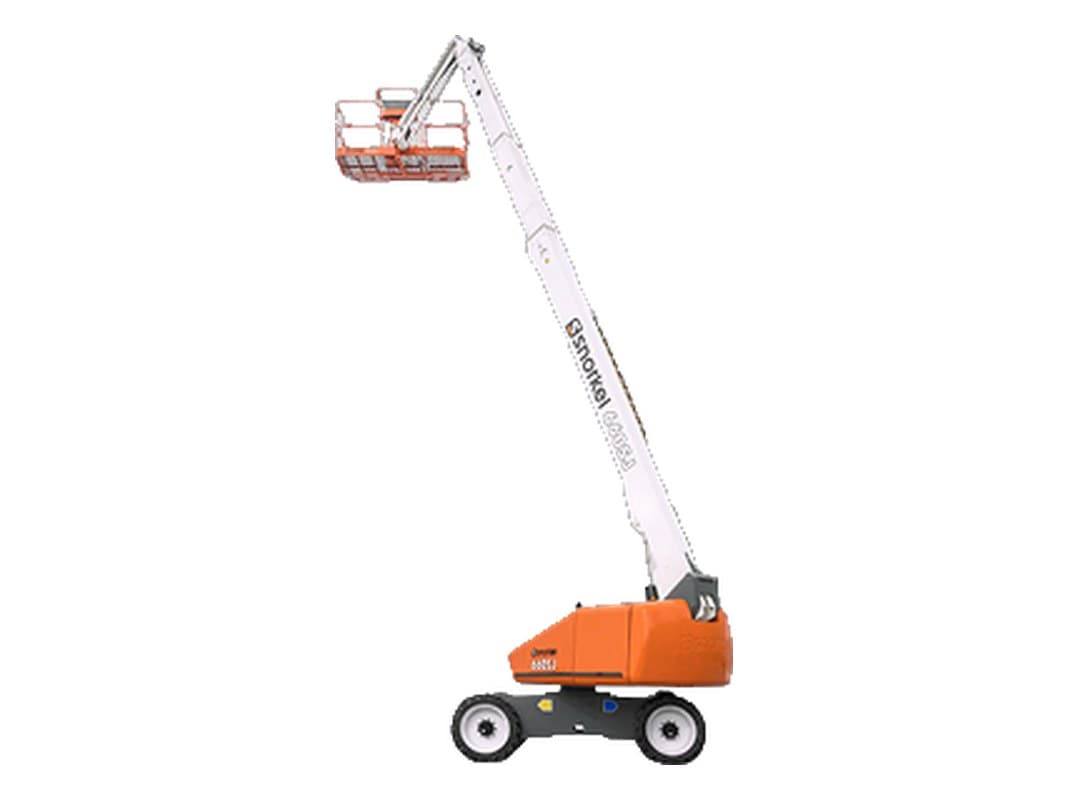

Snorkel 660SJ
Zoomlion ZT20J 4×4

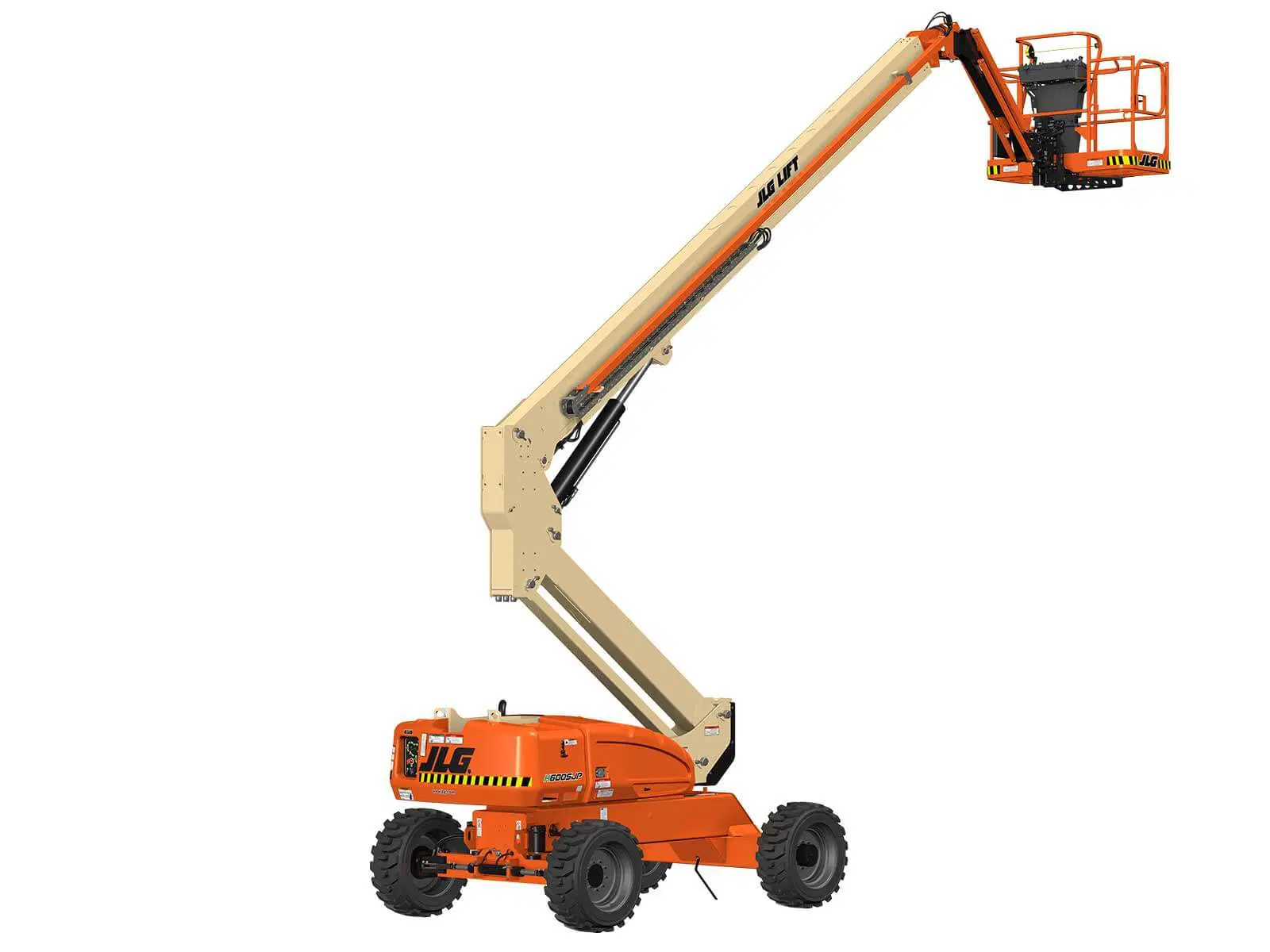

JLG H600SJP
Haulotte HT23 RTJ O: frequently asked questions
What is the working height of Haulotte HT23 RTJ O?
The working height of Haulotte HT23 RTJ O is 22.5 m, the platform height 20.5 m. Working height is the platform height plus the reach of the person working on it (2 m is assumed).
What is the capacity of Haulotte HT23 RTJ O?
The platform capacity of Haulotte HT23 RTJ O is 230 kg (people on the platform: 2). The capacity covers the operator, tools and material.
What is the outreach of Haulotte HT23 RTJ O?
Haulotte HT23 RTJ O has a horizontal outreach of 18.3 m. This is how far the machine reaches sideways from the chassis, that is, over obstacles such as a spoil heap, a ditch, greenery or parked cars.
Is Haulotte HT23 RTJ O suitable for use inside buildings?
Haulotte HT23 RTJ O has a diesel drive, so it is intended for use outdoors and in places with ventilation. Power source: diesel, drive: 4WD, tyres: rough terrain. Intended use according to the manufacturer: outdoor.
How much does Haulotte HT23 RTJ O weigh and how do I transport it?
Haulotte HT23 RTJ O: transport dimensions 7.8 × 2.47 × 3.3 m, weight 13,320 kg. These figures determine the choice of trailer and whether the floor or ground can carry the machine. We arrange transport anywhere in Poland.
How much does Haulotte HT23 RTJ O cost?
We quote the price of Haulotte HT23 RTJ O individually, because it depends on the configuration, availability and delivery date. Send an enquiry and we will prepare an offer with the net price and delivery date.
Does RK Rental service Haulotte machines?
Yes. We service Haulotte lifts: periodic inspections, repairs, preparation for the UDT inspection and parts. Our mobile service comes to the machine on site or to your company premises.
