New machine · Articulating boom lifts
LGMG A16JE-2

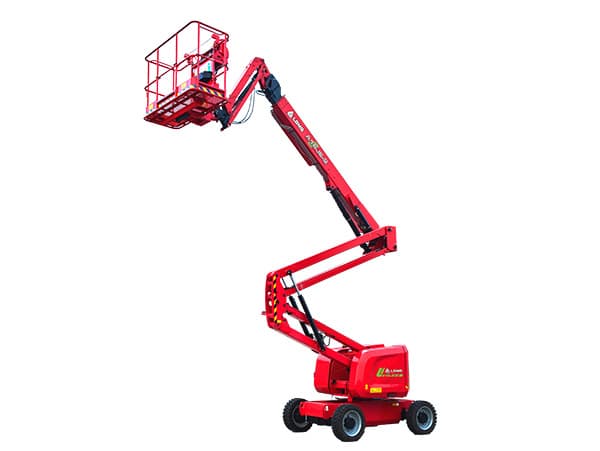

New LGMG A16JE-2 electric articulating boom lift: working height 17.7 m, capacity 230 kg, horizontal outreach 9.49 m. Platform 1.83 × 0.76 m, max. 2 (unrestricted) / 3 (restricted) on the platform, transport dimensions 7.407 × 1.87 × 1.96 m. Tyres: solid. Technical data taken directly from the manufacturer's official data sheet (LGMG, European market). Brand new machine; ask us for the price, delivery time and configuration.
We will prepare a quote for LGMG A16JE-2 with the current price and availability.
Prefer to write or call directly?
Brand new · manufacturer's warranty · delivery across Poland
Your logo on the machine
Before handover we will brand the LGMG A16JE-2 with your company logo or with a telephone number cut out of vinyl. Send us the logo or a ready design, and if you do not have one, a graphic designer we work with will prepare it. The price is agreed individually and we give it in the offer.
What are the technical specifications of LGMG A16JE-2?
- Working height
- 17.7 m
- Platform height
- 15.7 m
- Capacity
- 230 kg
- Horizontal outreach
- 9.49 m
- Power source
- Electric
- Weight
- 7,650 kg
- Tyres
- Solid
- Platform occupants
- 2 (unrestricted range) / 3 (restricted range)
- Up-and-over height
- 7.26 m
- Capacity (restricted range)
- 350 kg
- Drive speed (stowed position)
- 5 km/h
- Drive speed (platform raised)
- 0.8 km/h
- Gradeability
- 30%
- Inside turning radius
- 2.22 m
- Outside turning radius
- 4.6 m
- Turntable rotation
- 355°
- Max. working slope
- 4.5°/4.5°
- Permissible wind speed
- 12.5 m/s
- Tyre size
- 250-15
- Wheel ground pressure
- 1160 kPa
- Warranty
- Manufacturer's

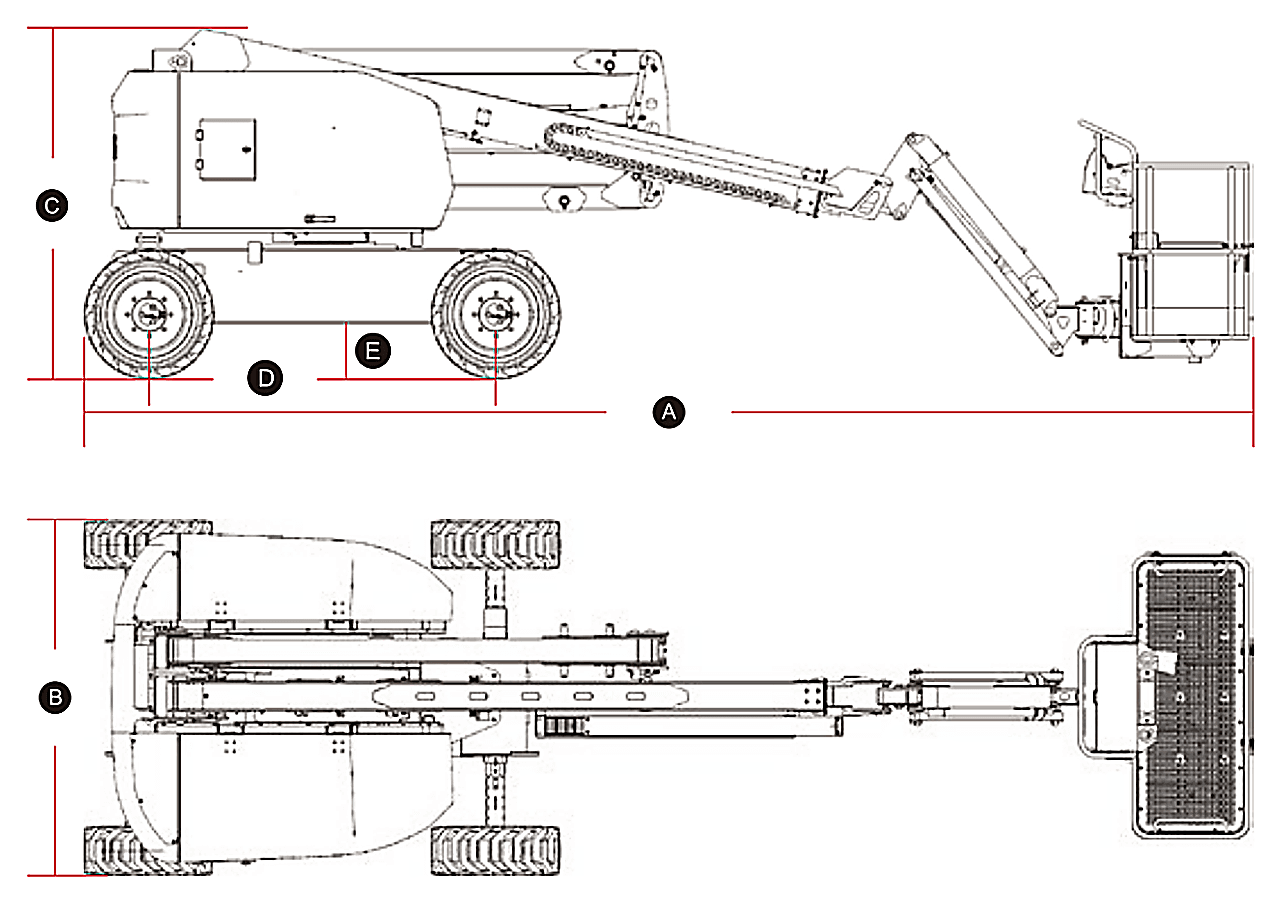

What are the dimensions of LGMG A16JE-2?
- ALength in transport position
- 7.407 m
- BMachine width
- 1.87 m
- CHeight in transport position
- 1.96 m
- DWheelbase
- 2.03 m
- EGround clearance
- 0.18 m
Need a slightly different machine?
Explore similar machines
If this exact model is not available, we will find a similar machine with a similar working height and capacity. Ask us and we will help you choose.

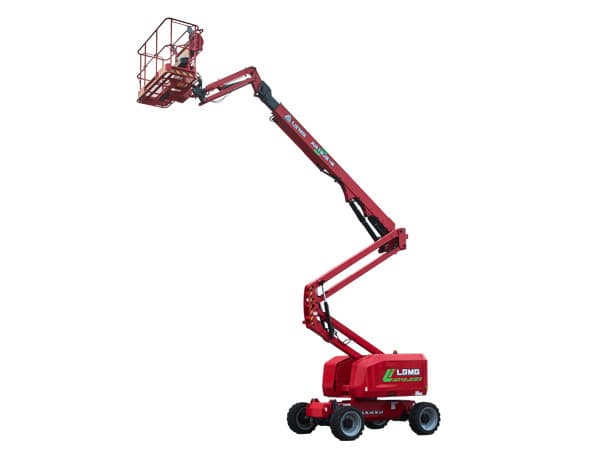

LGMG AR16JE-2

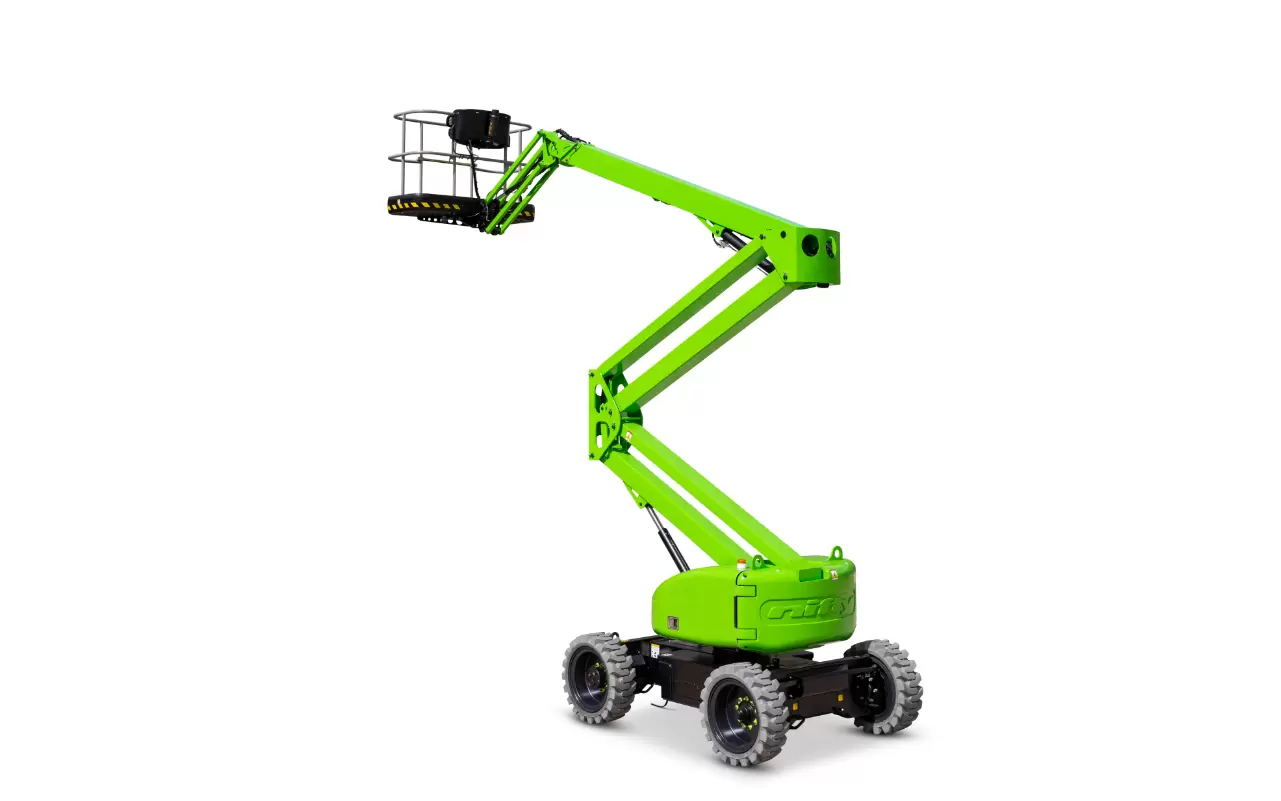

Niftylift HR17E

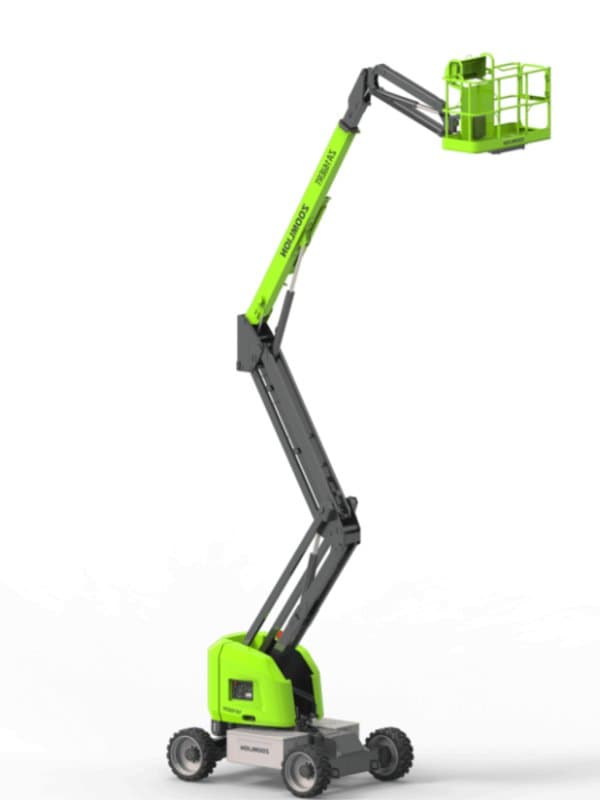

Zoomlion ZA16JERT Li 4×4

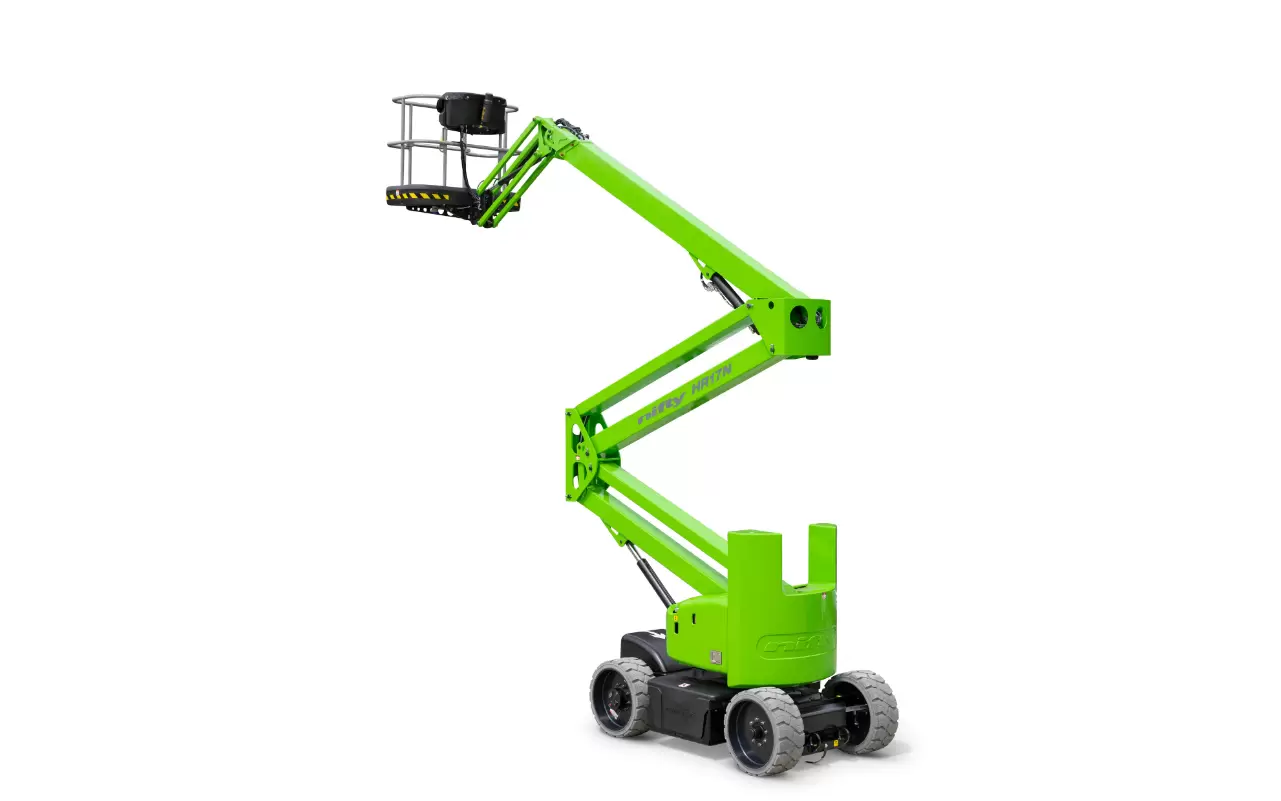

Niftylift HR17N
LGMG A16JE-2: frequently asked questions
What is the working height of LGMG A16JE-2?
The working height of LGMG A16JE-2 is 17.7 m, the platform height 15.7 m. Working height is the platform height plus the reach of the person working on it (2 m is assumed).
What is the capacity of LGMG A16JE-2?

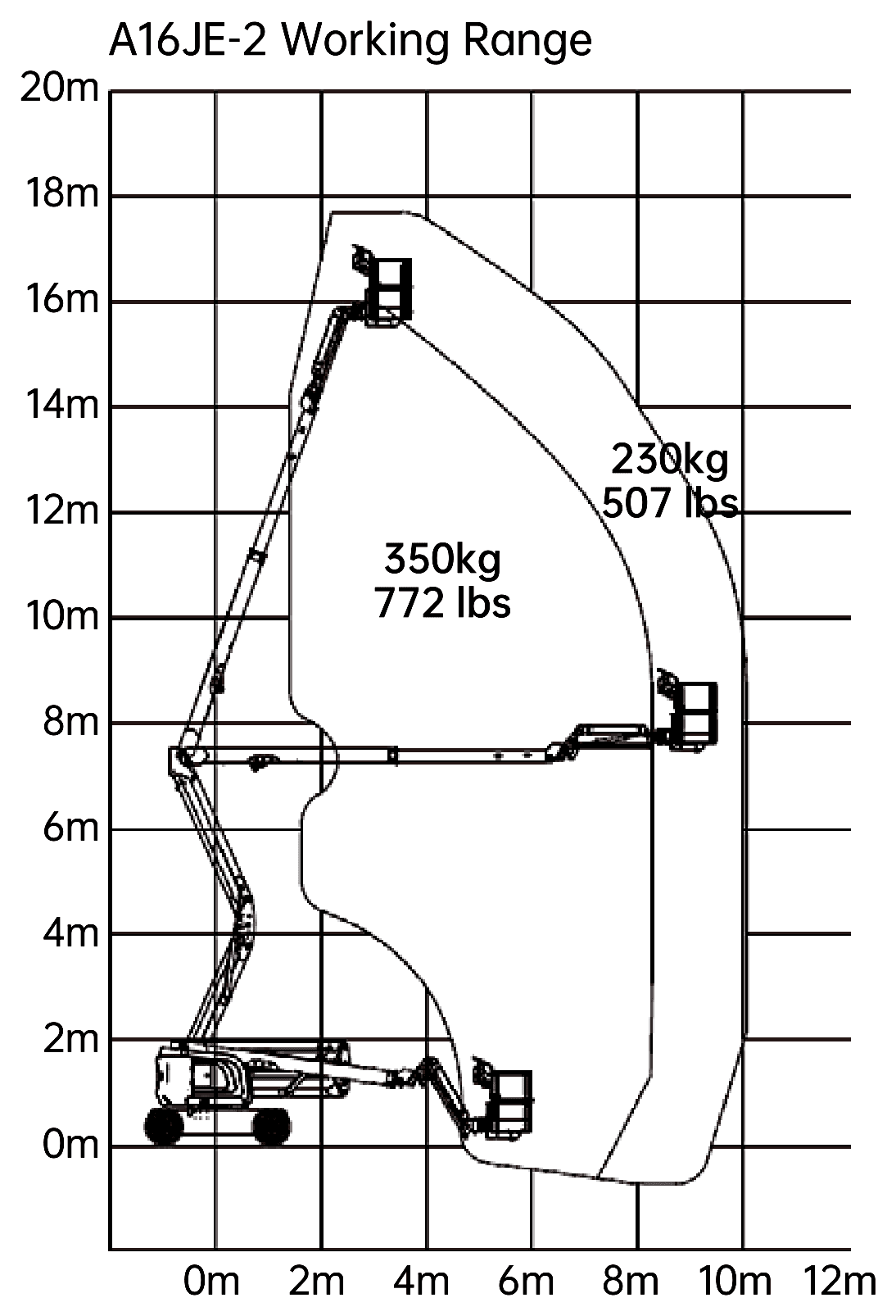

The platform capacity of LGMG A16JE-2 is 230 kg, and 350 kg in the restricted working range (people on the platform: 2 (unrestricted range) / 3 (restricted range)). The capacity covers the operator, tools and material.
What is the outreach of LGMG A16JE-2?
LGMG A16JE-2 has a horizontal outreach of 9.49 m. This is how far the machine reaches sideways from the chassis, that is, over obstacles such as a spoil heap, a ditch, greenery or parked cars.
Is LGMG A16JE-2 suitable for use inside buildings?
Yes. LGMG A16JE-2 has electric (battery) drive, so it works without exhaust fumes and quietly, including in halls and warehouses. Power source: electric, tyres: solid.
How much does LGMG A16JE-2 weigh and how do I transport it?
LGMG A16JE-2: transport dimensions 7.407 × 1.87 × 1.96 m, weight 7,650 kg. These figures determine the choice of trailer and whether the floor or ground can carry the machine. We arrange transport anywhere in Poland.
How much does LGMG A16JE-2 cost?
We quote the price of LGMG A16JE-2 individually, because it depends on the configuration, availability and delivery date. Send an enquiry and we will prepare an offer with the net price and delivery date.
Does RK Rental service LGMG machines?
Yes. We service LGMG lifts: periodic inspections, repairs, preparation for the UDT inspection and parts. Our mobile service comes to the machine on site or to your company premises.
