New machine · Articulating boom lifts
LGMG AR20JE-2
New LGMG AR20JE-2 electric articulating boom lift: working height 21.58 m, capacity 260 kg, horizontal outreach 11.87 m. Platform 2.44 × 0.9 m, max. 2 (unrestricted) / 3 (restricted) on the platform, transport dimensions 9.42 × 2.5 × 2.46 m. Tyres: solid. Technical data taken directly from the manufacturer's official data sheet (LGMG, European market). Brand new machine; ask us for the price, delivery time and configuration.
We will prepare a quote for LGMG AR20JE-2 with the current price and availability.
Prefer to write or call directly?
Brand new · manufacturer's warranty · delivery across Poland
Your logo on the machine
Before handover we will brand the LGMG AR20JE-2 with your company logo or with a telephone number cut out of vinyl. Send us the logo or a ready design, and if you do not have one, a graphic designer we work with will prepare it. The price is agreed individually and we give it in the offer.
What are the technical specifications of LGMG AR20JE-2?
- Working height
- 21.58 m
- Platform height
- 19.58 m
- Capacity
- 260 kg
- Horizontal outreach
- 11.87 m
- Power source
- Electric
- Weight
- 9,100 kg
- Tyres
- Solid
- Platform occupants
- 2 (unrestricted range) / 3 (restricted range)
- Up-and-over height
- 8.19 m
- Capacity (restricted range)
- 350 kg
- Drive speed (stowed position)
- 5 km/h
- Drive speed (platform raised)
- 0.8 km/h
- Gradeability
- 45%
- Inside turning radius
- 3.5 m
- Outside turning radius
- 6.35 m
- Turntable rotation
- 360°
- Max. working slope
- 4°/4°
- Permissible wind speed
- 12.5 m/s
- Tyre size
- 36×14-20
- Wheel ground pressure
- 519.8 kPa
- Warranty
- Manufacturer's

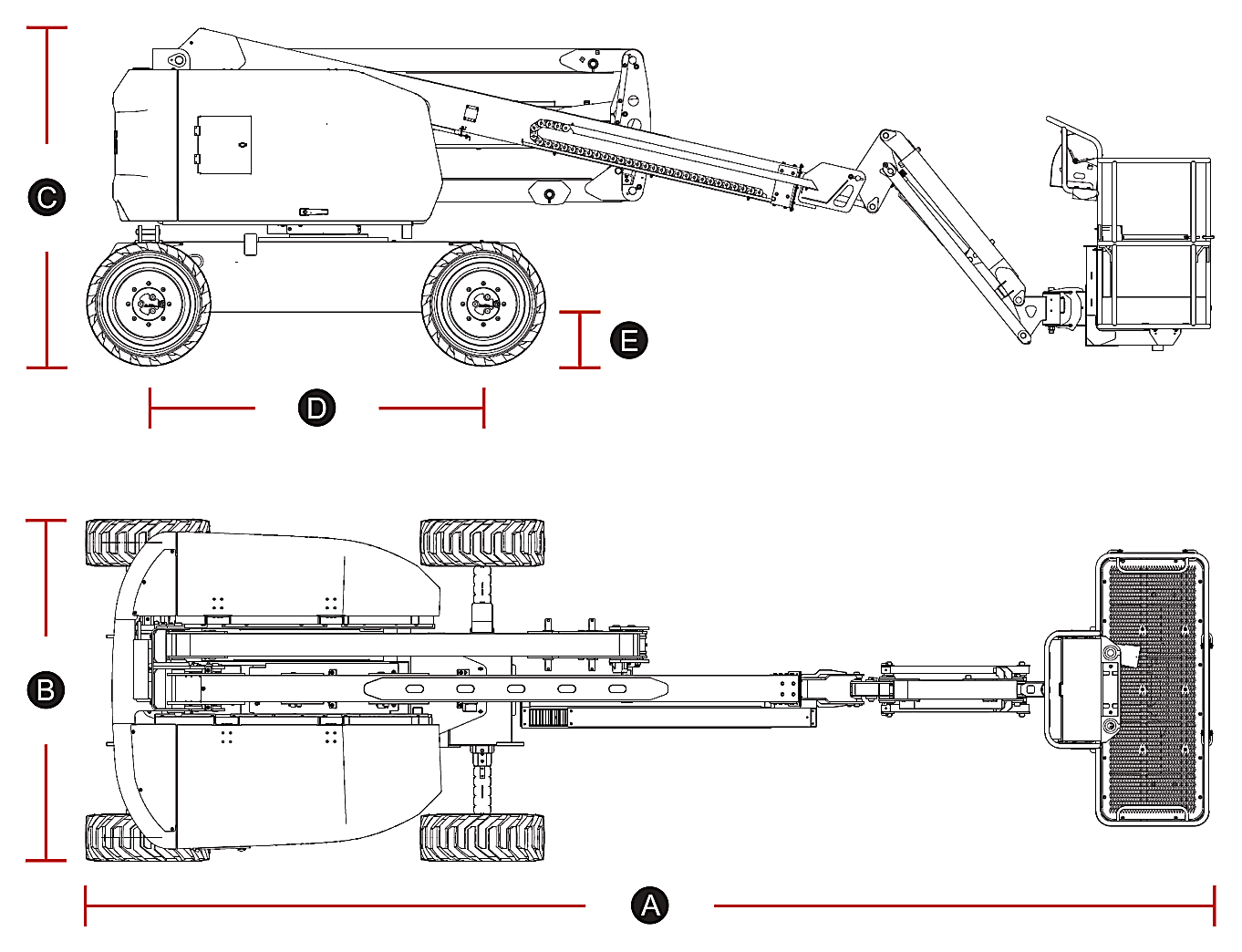

What are the dimensions of LGMG AR20JE-2?
- ALength in transport position
- 9.42 m
- BMachine width
- 2.5 m
- CHeight in transport position
- 2.46 m
- DWheelbase
- 2.51 m
- EGround clearance
- 0.4 m
Need a slightly different machine?
Explore similar machines
If this exact model is not available, we will find a similar machine with a similar working height and capacity. Ask us and we will help you choose.
Zoomlion ZA20JERT Li 4×4
Niftylift HR21E
Haulotte HA20 LE PRO
LGMG AR18JE-2
LGMG AR20JE-2: frequently asked questions
What is the working height of LGMG AR20JE-2?
The working height of LGMG AR20JE-2 is 21.58 m, the platform height 19.58 m. Working height is the platform height plus the reach of the person working on it (2 m is assumed).
What is the capacity of LGMG AR20JE-2?
The platform capacity of LGMG AR20JE-2 is 260 kg, and 350 kg in the restricted working range (people on the platform: 2 (unrestricted range) / 3 (restricted range)). The capacity covers the operator, tools and material.
What is the outreach of LGMG AR20JE-2?
LGMG AR20JE-2 has a horizontal outreach of 11.87 m. This is how far the machine reaches sideways from the chassis, that is, over obstacles such as a spoil heap, a ditch, greenery or parked cars.
Is LGMG AR20JE-2 suitable for use inside buildings?
Yes. LGMG AR20JE-2 has electric (battery) drive, so it works without exhaust fumes and quietly, including in halls and warehouses. Power source: electric, tyres: solid.
How much does LGMG AR20JE-2 weigh and how do I transport it?
LGMG AR20JE-2: transport dimensions 9.42 × 2.5 × 2.46 m, weight 9,100 kg. These figures determine the choice of trailer and whether the floor or ground can carry the machine. We arrange transport anywhere in Poland.
How much does LGMG AR20JE-2 cost?
We quote the price of LGMG AR20JE-2 individually, because it depends on the configuration, availability and delivery date. Send an enquiry and we will prepare an offer with the net price and delivery date.
Does RK Rental service LGMG machines?
Yes. We service LGMG lifts: periodic inspections, repairs, preparation for the UDT inspection and parts. Our mobile service comes to the machine on site or to your company premises.
