New machine · Telescopic boom lifts

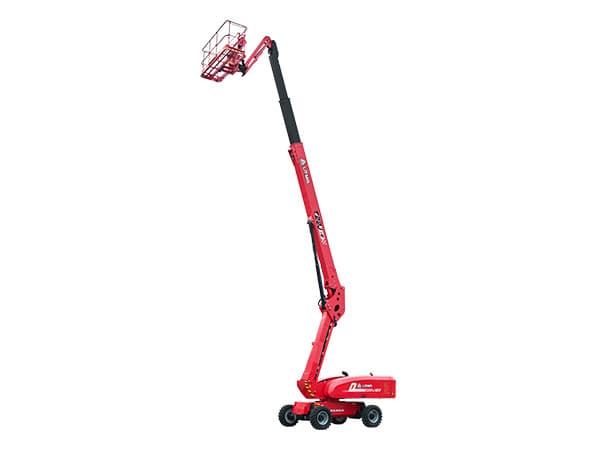

LGMG T22J-2
New LGMG T22J-2 diesel telescopic boom lift: working height 24.2 m, capacity 300 kg, horizontal outreach 15.47 m. Platform 2.44 × 0.9 m, max. 2 (unrestricted) / 3 (restricted) on the platform, transport dimensions 9.86 × 2.5 × 2.76 m. Tyres: solid. Technical data taken directly from the manufacturer's official data sheet (LGMG, European market). Brand new machine; ask us for the price, delivery time and configuration.
We will prepare a quote for LGMG T22J-2 with the current price and availability.
Prefer to write or call directly?
Brand new · manufacturer's warranty · delivery across Poland
Your logo on the machine
Before handover we will brand the LGMG T22J-2 with your company logo or with a telephone number cut out of vinyl. Send us the logo or a ready design, and if you do not have one, a graphic designer we work with will prepare it. The price is agreed individually and we give it in the offer.
What are the technical specifications of LGMG T22J-2?
- Working height
- 24.2 m
- Platform height
- 22.2 m
- Capacity
- 300 kg
- Horizontal outreach
- 15.47 m
- Power source
- Diesel
- Weight
- 11,060 kg
- Tyres
- Solid
- Platform occupants
- 2 (unrestricted range) / 3 (restricted range)
- Drive speed (stowed position)
- 5 km/h
- Drive speed (platform raised)
- 0.8 km/h
- Gradeability
- 45%
- Inside turning radius
- 3.5 m
- Outside turning radius
- 6.35 m
- Turntable rotation
- 360°
- Max. working slope
- 5°/5°
- Permissible wind speed
- 12.5 m/s
- Tyre size
- 36×14-20
- Wheel ground pressure
- 618.8 kPa
- Fuel tank
- 100 L
- Warranty
- Manufacturer's

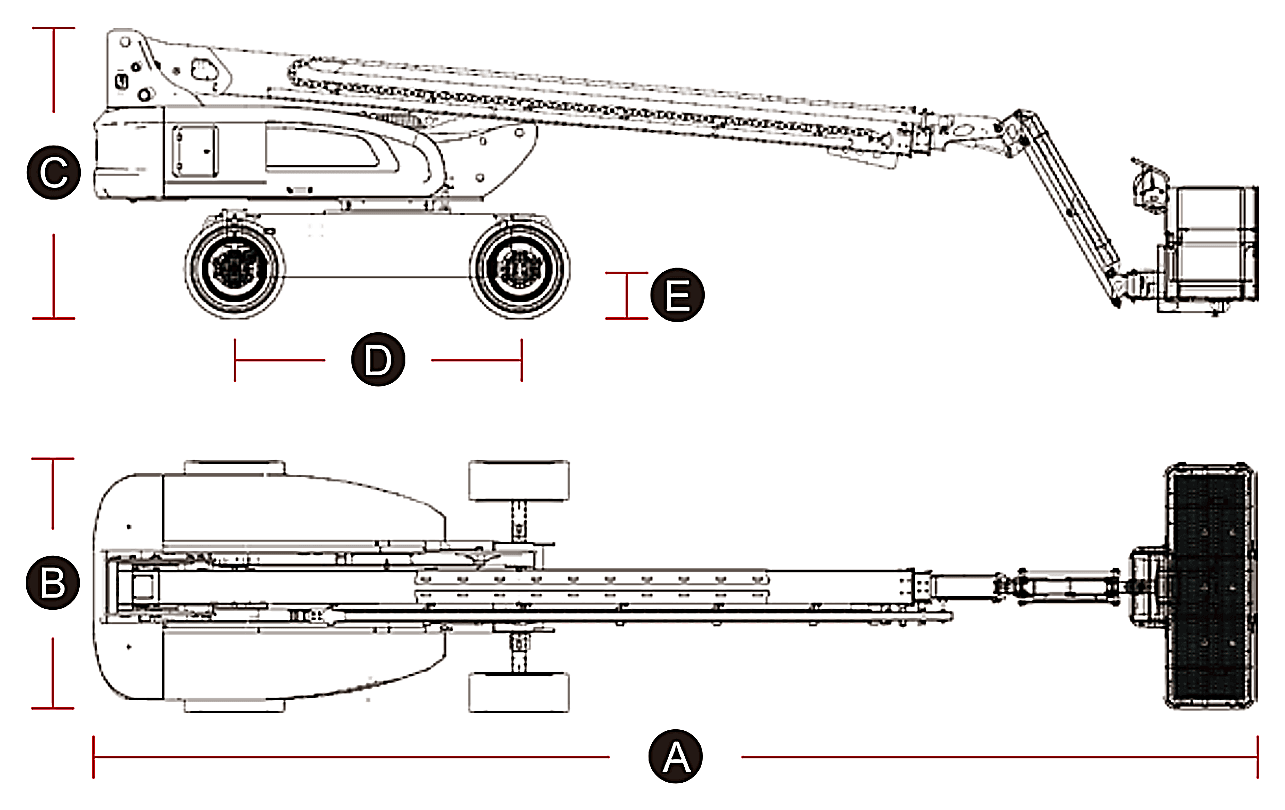

What are the dimensions of LGMG T22J-2?
- ALength in transport position
- 9.86 m
- BMachine width
- 2.5 m
- CHeight in transport position
- 2.76 m
- DWheelbase
- 2.51 m
- EGround clearance
- 0.4 m
Need a slightly different machine?
Explore similar machines
If this exact model is not available, we will find a similar machine with a similar working height and capacity. Ask us and we will help you choose.

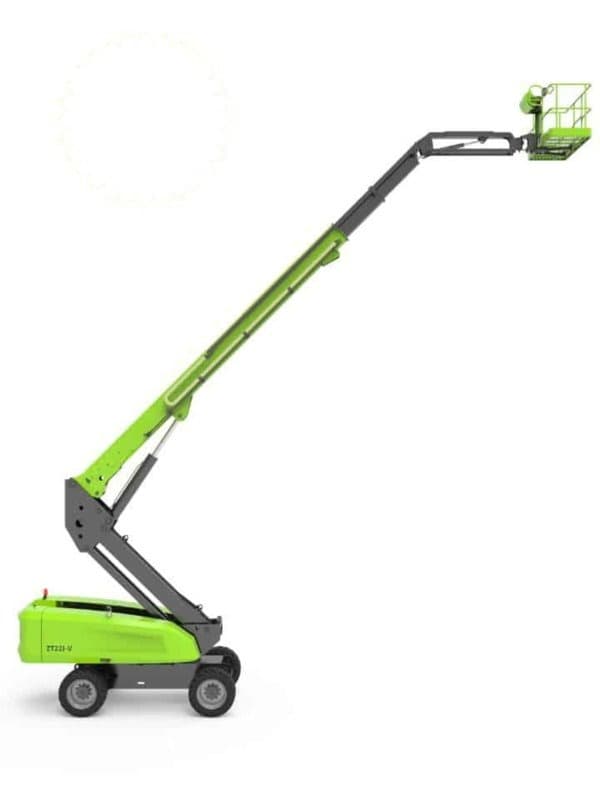

Zoomlion ZT22J-V

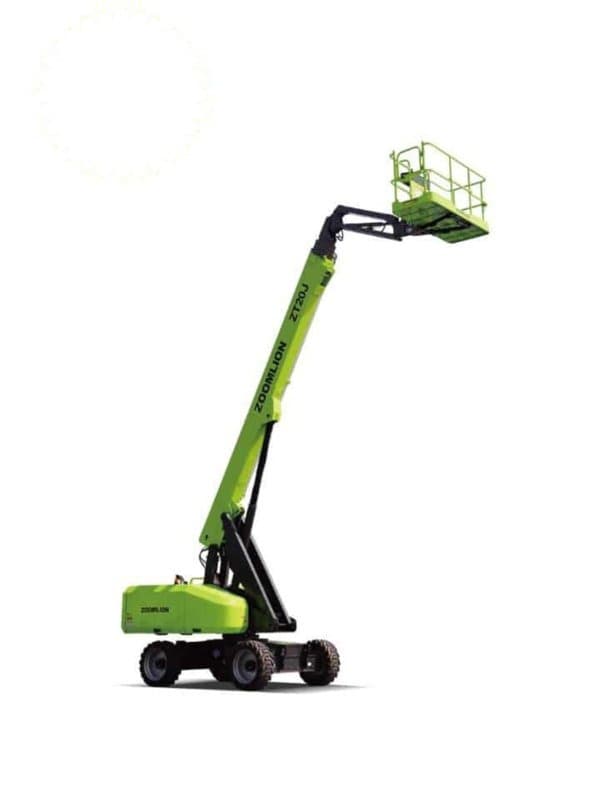

Zoomlion ZT20J 4×4

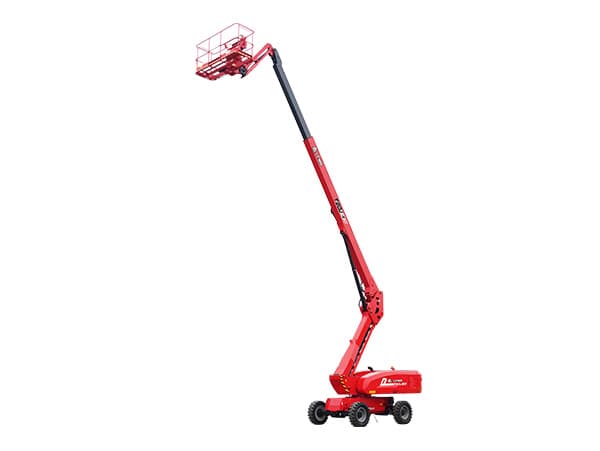

LGMG T20J-2

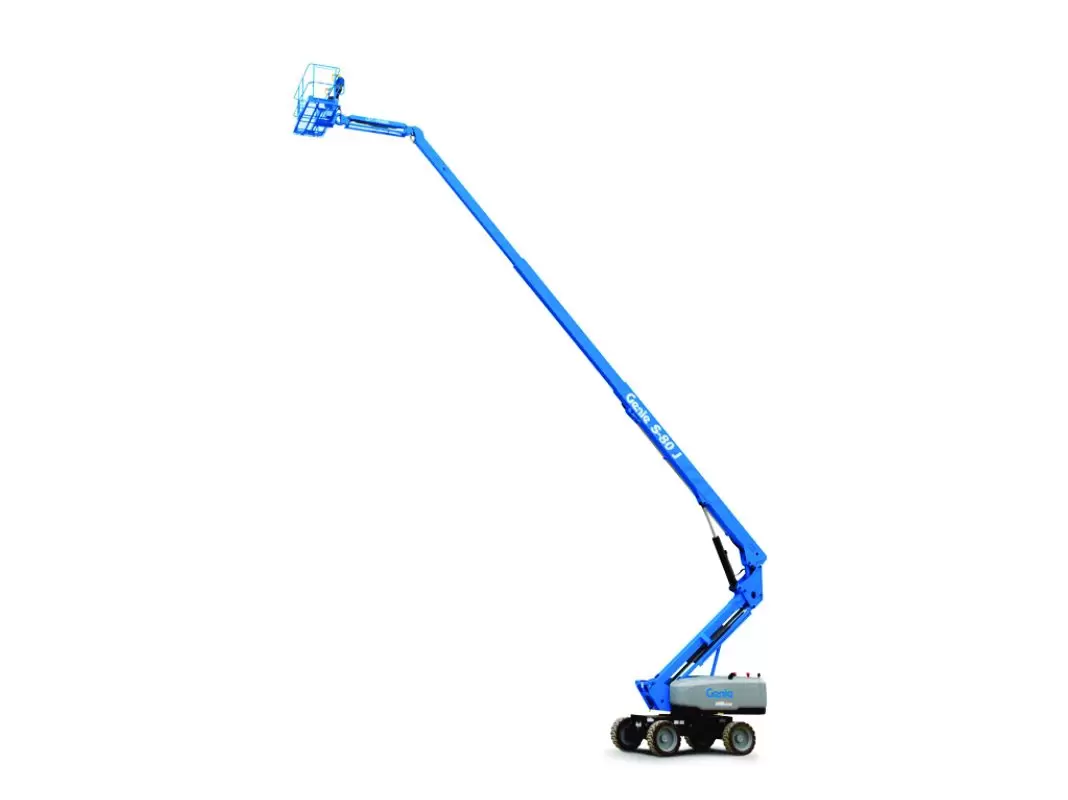

Genie S-80J
LGMG T22J-2: frequently asked questions
What is the working height of LGMG T22J-2?
The working height of LGMG T22J-2 is 24.2 m, the platform height 22.2 m. Working height is the platform height plus the reach of the person working on it (2 m is assumed).
What is the capacity of LGMG T22J-2?
The platform capacity of LGMG T22J-2 is 300 kg (people on the platform: 2 (unrestricted range) / 3 (restricted range)). The capacity covers the operator, tools and material.
What is the outreach of LGMG T22J-2?
LGMG T22J-2 has a horizontal outreach of 15.47 m. This is how far the machine reaches sideways from the chassis, that is, over obstacles such as a spoil heap, a ditch, greenery or parked cars.
Is LGMG T22J-2 suitable for use inside buildings?
LGMG T22J-2 has a diesel drive, so it is intended for use outdoors and in places with ventilation. Power source: diesel, tyres: solid.
How much does LGMG T22J-2 weigh and how do I transport it?
LGMG T22J-2: transport dimensions 9.86 × 2.5 × 2.76 m, weight 11,060 kg. These figures determine the choice of trailer and whether the floor or ground can carry the machine. We arrange transport anywhere in Poland.
How much does LGMG T22J-2 cost?
We quote the price of LGMG T22J-2 individually, because it depends on the configuration, availability and delivery date. Send an enquiry and we will prepare an offer with the net price and delivery date.
Does RK Rental service LGMG machines?
Yes. We service LGMG lifts: periodic inspections, repairs, preparation for the UDT inspection and parts. Our mobile service comes to the machine on site or to your company premises.
