JLG · Diesel articulating boom lift
JLG 800AJ
Diesel articulating boom lift rental · working height 26.38 m · capacity 230 kg · 4×4 drive
- Working height
- 26.38m
- Capacity
- 230kg
- Horizontal outreach
- 15.8m
- Width
- 2.48m
- Weight
- 15,757kg
Renting the JLG 800AJ diesel articulating boom lift gives you 26.38 m of working height, 15.8 m of horizontal outreach and 230 kg of capacity. It is a 4×4 rough terrain cherry picker for work on tall buildings, steel structures and industrial installations. It stands out for its articulation point at a height of 9.78 m, which lets the platform be carried over roofs and pipelines, and for four-wheel steering (4WS) with an outside turning radius of 3.53 m. We deliver the machine across Bydgoszcz, Toruń, Poznań and the whole of Poland.
JLG
Rental
JLG 800AJ: from PLN 350 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Buy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the JLG 800AJ?
- Working height
- 26.38 m
- Platform height
- 24.38 m
- Capacity
- 230 kg
- Horizontal outreach
- 15.8 m
- Unladen weight
- 15,757 kg
- Power source
- Diesel
- Engine type
- Diesel
- Drive
- 4WD
- Tyres
- Rough terrain
- Intended use
- Outdoor
- Horizontal outreach
- 15.80 m
- Working outreach (including 0.65 m beyond the platform)
- 16.45 m
- Up-and-over height (articulation height)
- 9.78 m
- Platform occupants
- 2
- Turntable rotation
- 360° (continuous)
- Platform rotation (hydraulic)
- 180°
- Jib articulation
- 130° (+70° / −60°)
- Inside turning radius
- 3.81 m (2WS) / 1.83 m (4WS)
- Outside turning radius
- 6.02 m (2WS) / 3.53 m (4WS)
- Drive speed (4WD)
- 5.8 km/h

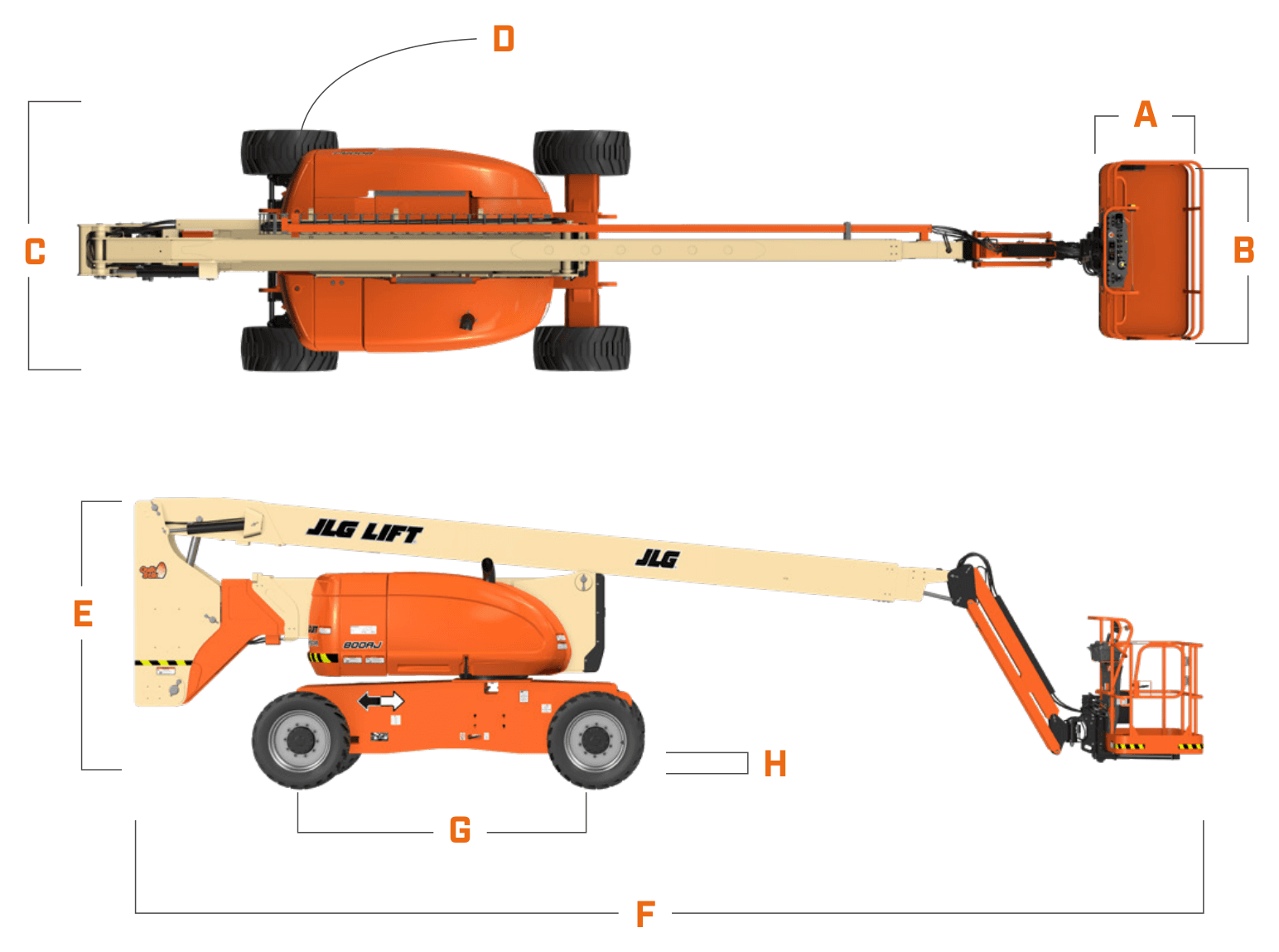

What are the dimensions of the JLG 800AJ?
- APlatform width
- 0.91 m
- BPlatform length
- 1.83 m
- COverall width
- 2.48 m
- DTail swing (in working position)
- 0.76 m
- EStowed height (transport)
- 3.00 m
- FStowed length (transport)
- 11.13 m
- GWheelbase
- 3.06 m
- HGround clearance
- 0.28 m
What is the JLG 800AJ used for?
The JLG 800AJ is a tall articulating boom lift built for outdoor use: on construction sites, industrial plant grounds and large-area facilities. The Deutz TD 2.9 L4 engine rated at 50 kW (67 hp), compliant with Stage V with a DPF, together with 4WD and 0.20 m front axle oscillation, lets it travel over uneven ground. The 148 l fuel tank provides a large working reserve between refuelling stops.
A horizontal outreach of 15.8 m (16.45 m of working reach, counting the operator's 0.65 m beyond the platform) and an articulation point at 9.78 m mean that you can cover a large section of façade from a single position, or reach over an obstacle that cannot be driven around. A jib with a 130° range (+70° / −60°), 180° hydraulic platform rotation and 360° continuous turret rotation let you position the platform precisely at the structure. Two people work on the platform within the 230 kg capacity.
When choosing, allow for its size: a weight of 15,757 kg, transport length of 11.13 m, stowed height of 3.00 m and width of just under 2.5 m. Wheel load reaches 8,054 kg and ground pressure 5.30 kg/cm², so on soft ground it is worth providing ground mats. In the working position the rear of the turret swings out by 0.76 m. Gradeability is 45% in 4WD mode, and the tilt alarm is triggered at 4°.
- Work on tall façades
- Steel structure erection
- Servicing industrial installations
- Work above hall roofs
- Construction sites on uneven ground
- Large-format advertising
What does renting the JLG 800AJ include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
