Genie · Diesel articulating boom lift
Genie Z-135/70
Diesel articulating boom lift rental · working height 43.15 m · capacity 272 kg · 4×4 drive
- Working height
- 43.15m
- Capacity
- 272kg
- Horizontal outreach
- 21.26m
- Width
- 3.94m
- Weight
- 20,366kg
Renting the Genie Z-135/70 diesel articulating boom lift gives you access to a working height of 43.15 m and horizontal outreach of 21.26 m with a capacity of 272 kg; one of the tallest self-propelled cherry pickers, it is well suited to chimneys, towers, tall façades and power-sector structures. Its long horizontal reach lets you set the machine up far from the building, and the compact 0.76 × 1.83 m platform is easy to guide between structural members. We deliver the Genie Z-135/70 from the RK Rental fleet to Bydgoszcz, Toruń, Poznań and anywhere in Poland.
Genie
Rental
Genie Z-135/70: from PLN 600 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Buy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Genie Z-135/70?
- Working height
- 43.15 m
- Platform height
- 41.15 m
- Capacity
- 272 kg
- Horizontal outreach
- 21.26 m
- Unladen weight
- 20,366 kg
- Power source
- Diesel
- Engine type
- Diesel
- Drive
- 4WD
- Tyres
- Rough terrain
- Intended use
- Outdoor
- Max. horizontal outreach (lower boom/riser lowered)
- 21.26 m
- Horizontal outreach (lower boom/riser raised)
- 18.03 m
- Up-and-over height (riser raised)
- 23.01 m
- Up-and-over height (riser lowered)
- 9.91 m
- Below-ground reach
- 5.87 m
- Extending jib (Jib-Extend)
- 3.66–6.10 m
- Platform rotation
- 160°
- Jib vertical articulation
- 110°
- Turntable rotation
- 360° continuous
- Turntable tail swing (axles extended, riser raised)
- 0.79 m

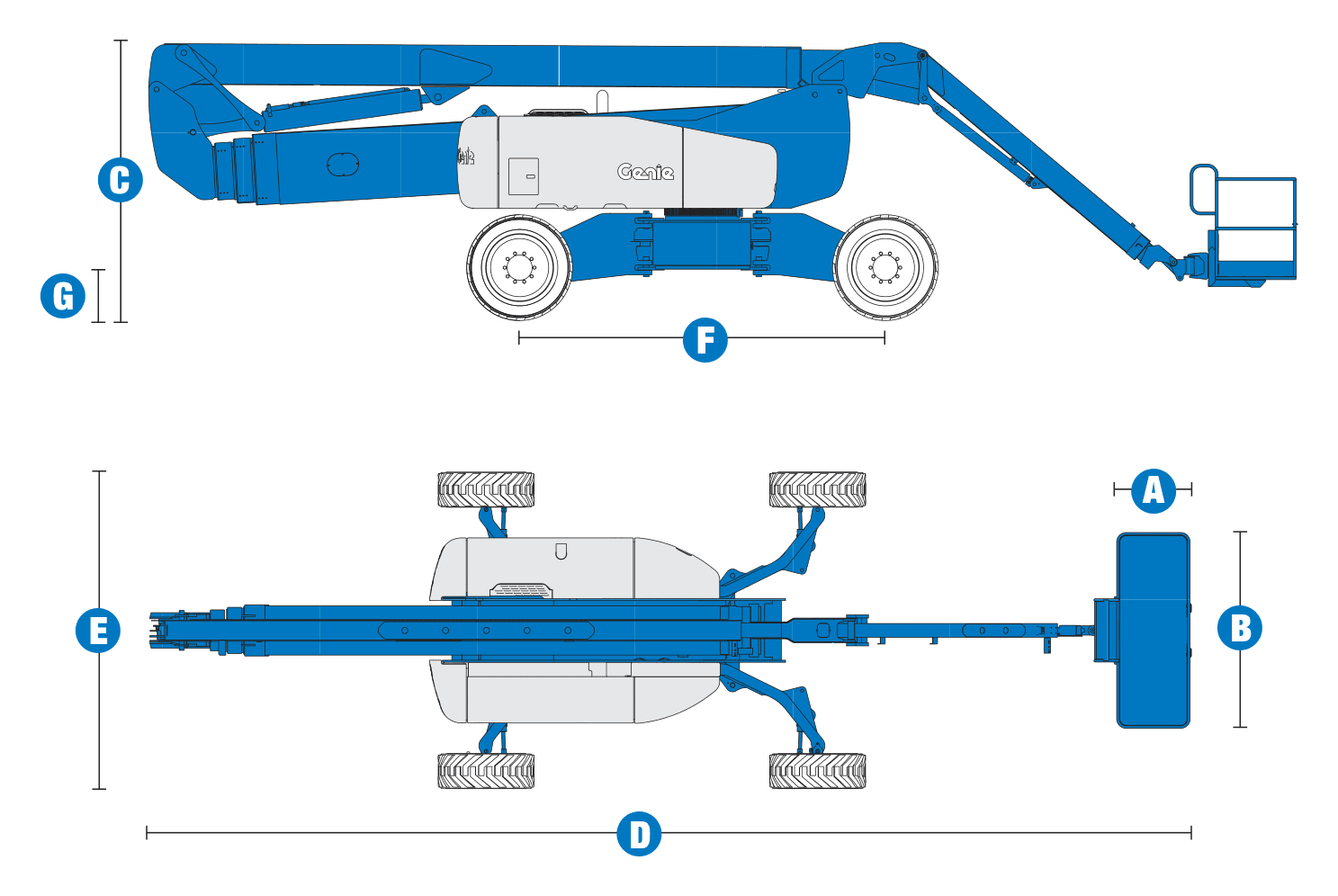

What are the dimensions of the Genie Z-135/70?
- APlatform length (short / long platform)
- 0.76 m / 0.91 m
- BPlatform width (short / long platform)
- 1.83 m / 2.44 m
- CStowed height
- 3.07 m
- DStowed length
- 12.93 m
- EOverall width (axles extended / retracted)
- 3.94 m / 2.46 m
- FWheelbase (axles extended / retracted)
- 4.11 m / 4.72 m
- GGround clearance (centre)
- 0.51 m
What is the Genie Z-135/70 used for?
The Genie Z-135/70 is one of the tallest self-propelled MEWPs with an articulating boom: the platform rises to 41.15 m and can reach 21.26 m sideways. The machine performs well in heavy industry, the power sector and high-rise construction: for inspections of chimneys and cooling towers, steel structure erection, work on the façades of tall buildings and on structures that cannot be approached closely.
The 0.76 × 1.83 m platform is narrower than the 2.44 m platforms found in this class, which makes manoeuvring around lattice trusses, pipelines and installations easier; the 272 kg capacity is enough for operators with tools. 4×4 drive with rough terrain tyres takes the machine across a construction site, but with a weight of 20,366 kg the ground must be load-bearing, and on unsurfaced ground load-spreading mats are required.
Transport dimensions of 12.93 × 2.46 × 3.07 m must be taken into account when planning the gate and access road. The diesel engine makes the machine suited mainly to outdoor use or to very large, ventilated buildings. Compared with the JLG 1250AJP, the Genie offers greater working height and longer outreach, while the JLG offers higher platform capacity.
- Industrial chimney inspections
- Power-sector work
- Steel structure erection
- Tall building façades
- Bridge and viaduct servicing
- Work at a large set-back distance
What does renting the Genie Z-135/70 include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
