Genie ZX-135/70
Diesel articulating boom lift rental · working height 43.15 m · capacity 272 kg · 4×4 drive
- Working height
- 43.15m
- Capacity
- 272kg
- Horizontal outreach
- 21.26m
- Width
- 2.49m
- Weight
- 21,092kg

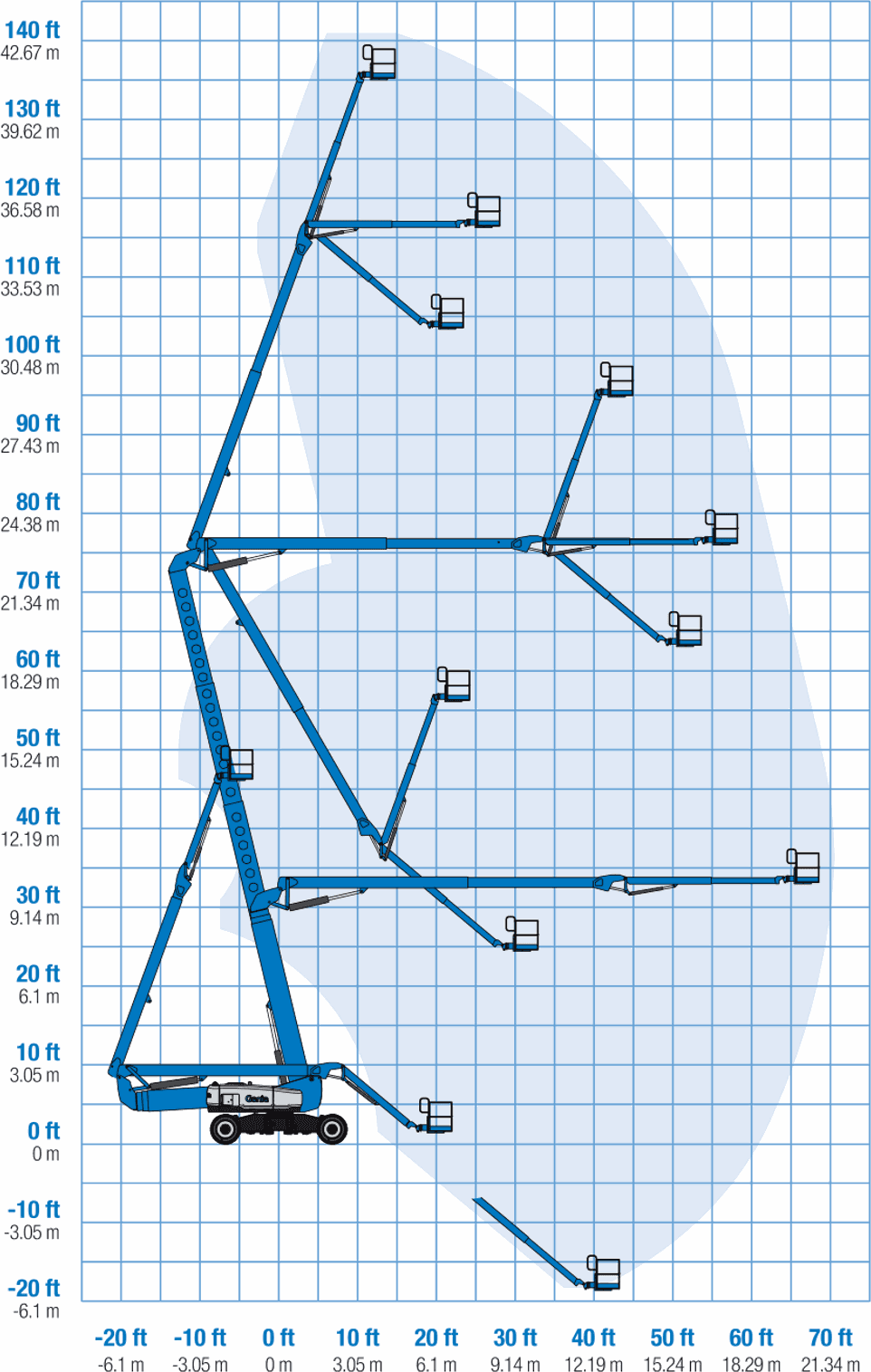

Renting the Genie ZX-135/70 diesel articulating boom lift gives you a working height of 43.15 m, horizontal outreach of 21.26 m and a reach of 5.87 m below ground level. It is a machine for work on tall structures and below the edges of quaysides, bridges and excavations. It stands out for its long 3.66 / 6.10 m jib and axles that extend from 2.49 to 3.94 m in width. We arrange transport to the customer around Bydgoszcz, Toruń, Poznań and anywhere in Poland.
Genie
Rental
Genie ZX-135/70: from PLN 600 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Prefer to buy? Genie ZX-135/70, newBuy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Genie ZX-135/70?
- Working height
- 43.15 m
- Platform height
- 41.15 m
- Capacity
- 272 kg
- Horizontal outreach
- 21.26 m
- Platform occupants
- 2
- Unladen weight
- 21,092 kg
- Power source
- Diesel
- Engine type
- Diesel
- Drive
- 4WD
- Tyres
- Rough terrain
- Intended use
- Outdoor
- Below-ground reach
- 5.87 m
- Jib length
- 3.66 / 6.10 m
- Drive speed (stowed position)
- 4.8 km/h
- Drive speed (platform raised)
- 1.1 km/h
- Tyre contact pressure
- 896 kPa
- Floor pressure (tyres)
- 9.99 kPa
- Vibration (platform)
- 2.5 m/s²
- Fuel tank
- 151 L
- Hydraulic tank capacity
- 246.1 L

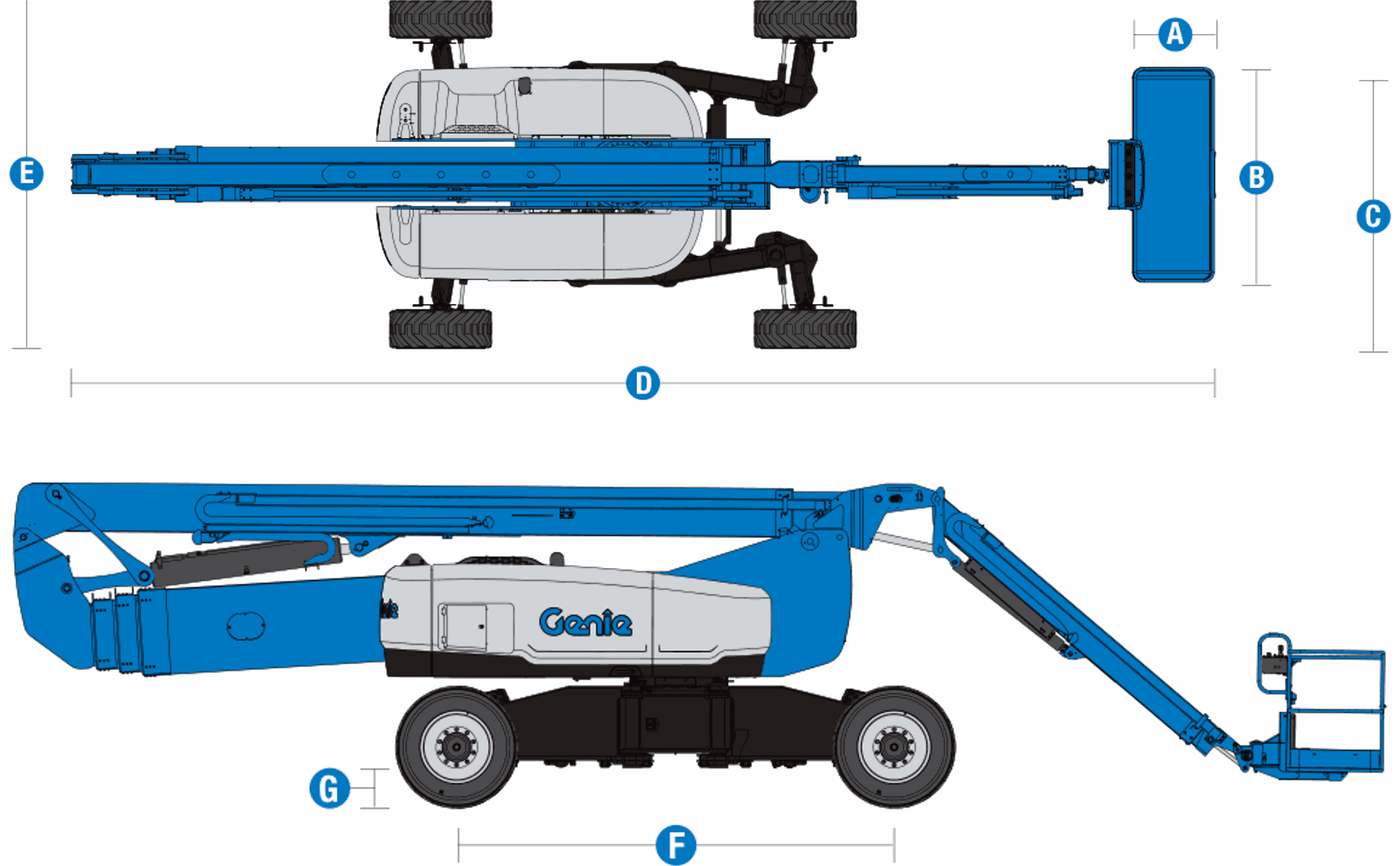

What are the dimensions of the Genie ZX-135/70?
- APlatform length
- 0.91 / 0.76 m
- BPlatform width
- 2.44 / 1.83 m
- CHeight (stowed position)
- 3.09 m
- DLength (stowed position)
- 12.93 m
- EMachine width (axles retracted / extended)
- 2.49 / 3.94 m
- FWheelbase
- 4.11 m
- GGround clearance under chassis
- 0.38 m
What is the Genie ZX-135/70 used for?
The Genie ZX-135/70 is a large articulating cherry picker fitted with a long jib (3.66 / 6.10 m), which makes it easier to position the platform precisely at the structure. The platform rises to 41.15 m, and the reach of 5.87 m below ground level lets you work below an edge: on bridge spans, quaysides, tanks or deep excavations. The platform holds 2 people within a capacity of 272 kg.
For travel and transport the axles are retracted, and the machine is then 2.49 m wide, 12.93 m long and 3.09 m high. For work the axles extend to 3.94 m, which must be taken into account when marking out the set-up position. A weight of 21,092 kg and tyre ground pressure of 896 kPa mean the ground must be load-bearing; on unsurfaced ground road plates are essential.

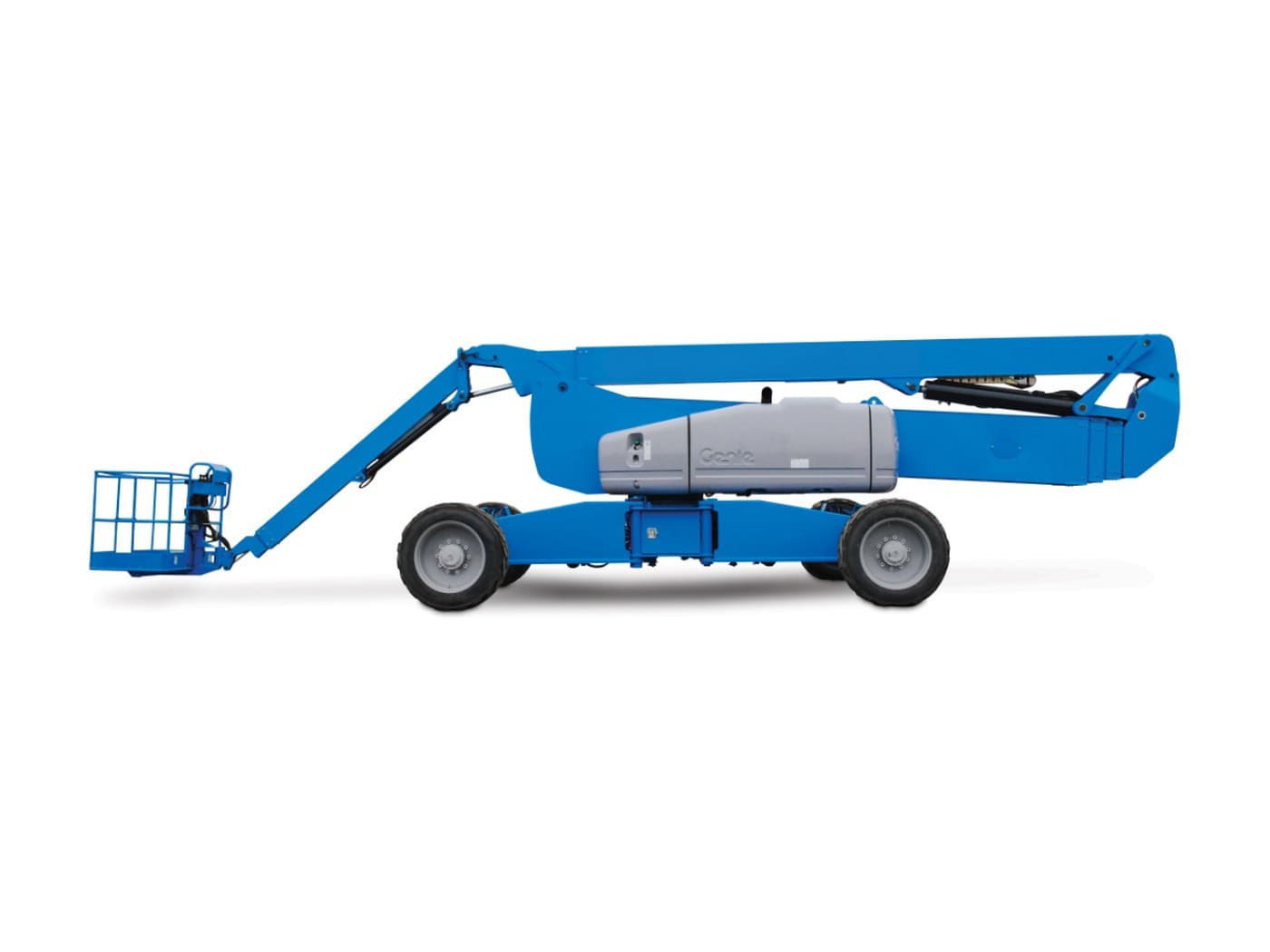

4×4 drive, rough terrain tyres and 0.38 m of ground clearance let it travel across a construction site at 4.8 km/h in the stowed position and 1.1 km/h with the platform raised. The platform is available in 0.91 × 2.44 m or 0.76 × 1.83 m sizes. When choosing, it is worth comparing this boom lift with the Genie Z-135/70, which has the same working height.
- Bridge underside inspections
- Work on port quaysides
- Precision work with the jib
- Chimney and silo maintenance
- Servicing tall façades
What does renting the Genie ZX-135/70 include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
