JLG · Telescopic boom lift
JLG 1350SJP
Telescopic boom lift rental · working height 43.3 m · capacity 450 kg · 4×4 drive
- Working height
- 43.3m
- Capacity
- 450kg
- Horizontal outreach
- 24.38m
- Width
- 3.81m
- Weight
- 20,369kg
Renting the JLG 1350SJP diesel telescopic boom lift gives you a working height of 43.3 m, a horizontal outreach of 24.38 m and a capacity of 450 kg: a cherry picker for the largest structures, such as tall industrial buildings, bridges, chimneys and industrial structures. It stands out for combining a very large horizontal outreach with a jib with a 130° range, extendable axles and 4×4 drive, which let you work at a great distance from the structure. We deliver the machine from Bydgoszcz to Toruń, Poznań and across Poland.
JLG
Rental
JLG 1350SJP: availability and price on request
We quote the rate for this machine on request: it depends on the rental period and the work location. We arrange delivery across Poland.
Ask about availability and price Buy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the JLG 1350SJP?
- Working height
- 43.3 m
- Platform height
- 41.3 m
- Capacity
- 450 kg
- Horizontal outreach
- 24.38 m
- Unladen weight
- 20,369 kg
- Power source
- Diesel
- Engine type
- Diesel
- Drive
- 4WD
- Tyres
- Rough terrain
- Intended use
- Outdoor
- Horizontal outreach
- 24.38 m
- Platform occupants
- 3 (at 450 kg) / 2 (at 230 kg)
- Turntable rotation
- 360° continuous
- Platform rotation
- 180° (hydraulic)
- Jib articulation
- 130° (+75° / -55°)
- Ground clearance
- 0.30 m (axle) / 0.65 m (chassis)
- Inside turning radius
- 4.39 m (axles retracted) / 2.44 m (axles extended)
- Outside turning radius
- 6.86 m (axles retracted) / 5.89 m (axles extended)
- Drive speed
- 5.2 km/h
- Gradeability
- 45%

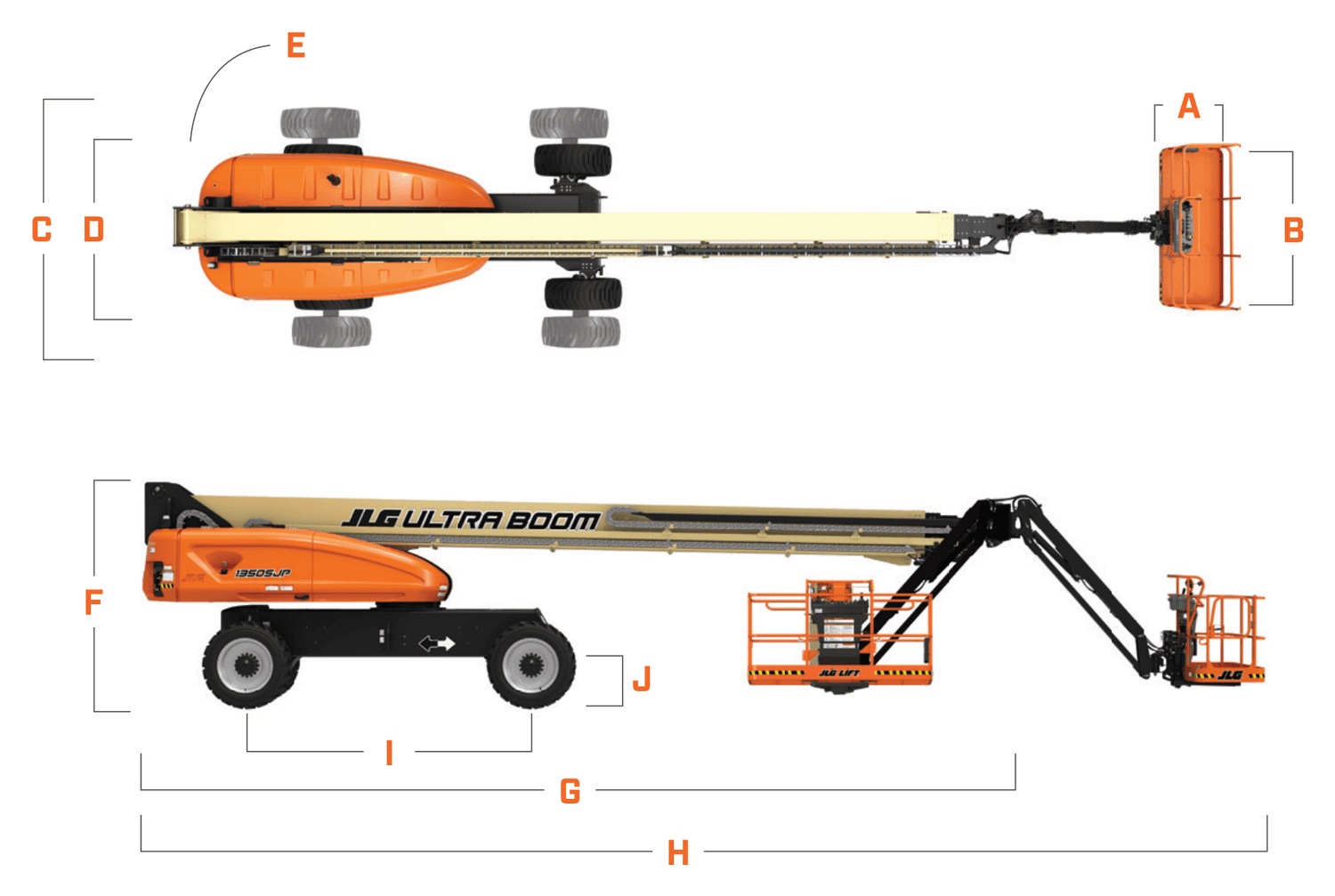

What are the dimensions of the JLG 1350SJP?
- APlatform width
- 0.91 m
- BPlatform length
- 2.44 m
- COverall width (axles extended)
- 3.81 m
- DOverall width (axles retracted)
- 2.49 m
- ETail swing
- 1.67 m
- FStowed height
- 3.04 m
- GLength in stowed position (platform tucked under)
- 11.86 m
- HOverall length (platform unfolded)
- 14.89 m
- IWheelbase
- 3.81 m
- JGround clearance (axle / chassis)
- 0.30 m / 0.65 m
What is the JLG 1350SJP used for?
The JLG 1350SJP is one of the largest self-propelled telescopic boom lifts, used where an ordinary cherry picker cannot reach or cannot get close to the structure. Its 24.38 m horizontal outreach lets you position the machine beyond an obstacle, such as a fence, railway tracks or a watercourse, and work from a safe distance. The 0.91 × 2.44 m basket with 180° hydraulic rotation holds three people at a load of 450 kg or two at 230 kg.
The machine is built for rough terrain work: 4×4 drive, rough terrain tyres, 45% gradeability and 0.65 m of ground clearance under the chassis. The axles extend from 2.49 m to 3.81 m in width, which widens the wheel track but requires space at the work position. With a weight of 20,369 kg and a ground pressure of up to 7.38 kg/cm², the ground must be load-bearing and level, and the 55.4 kW Deutz diesel means it is used mainly outdoors.
When choosing, it is worth comparing it with the JLG 1250AJP articulating boom lift on a similar chassis: the 1350SJP wins on horizontal outreach, the articulating model on getting around obstacles from above. You also need to plan access: the length with the basket unfolded is 14.89 m, with the basket folded under 11.86 m, and the height is 3.04 m. The 1.67 m tail swing requires clear space behind the turret every time it rotates.
- Erecting tall industrial building structures
- Bridge and flyover inspections
- Work on industrial chimneys
- Access over obstacles from a distance
- Servicing industrial installations
- Façades of tall buildings
What does renting the JLG 1350SJP include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
