Haulotte · Electric scissor lift
Haulotte Compact 14
Electric scissor lift rental · working height 13.75 m · capacity 320 kg
- Working height
- 13.75m
- Capacity
- 320kg
- Platform height
- 11.75m
- Width
- 1.2m
- Weight
- 3,070kg
Renting the Haulotte Compact 14 electric scissor lift gives you a 13.75 m working height, 320 kg capacity and a width of 1.2 m; it is a machine for work beneath the high ceilings of industrial halls and logistics centres, where lower scissor lifts no longer reach. Despite its considerable height it remains manoeuvrable thanks to an outside turning radius of 1.83 m, and indoors its platform holds three people. We provide delivery within Bydgoszcz, Toruń, Poznań and across Poland.
Haulotte
Rental
Haulotte Compact 14: from PLN 190 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Prefer to buy? Haulotte Compact 14, newBuy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Haulotte Compact 14?
- Working height
- 13.75 m
- Platform height
- 11.75 m
- Capacity
- 320 kg
- Platform occupants
- indoor 3
- Deck extension
- 0.92 m
- Unladen weight
- 3,070 kg
- Power source
- Electric
- Drive
- 2WD
- Tyres
- Non-marking
- Intended use
- Indoor
- Drivable at maximum height up to
- 11.75 m
- Maximum working height while driving (indoor)
- 11.75 m
- Extension length
- 0.92 m
- Height (without guardrails)
- 2.02 m
- Ground clearance (pothole guards deployed)
- 2 cm
- Drive speed
- 0.7 / 1.5 / 4.2 km/h
- Maximum gradeability
- 25%
- Tilt (longitudinal / lateral)
- 3.5° / 1.5°
- Outside turning radius
- 1.83 m

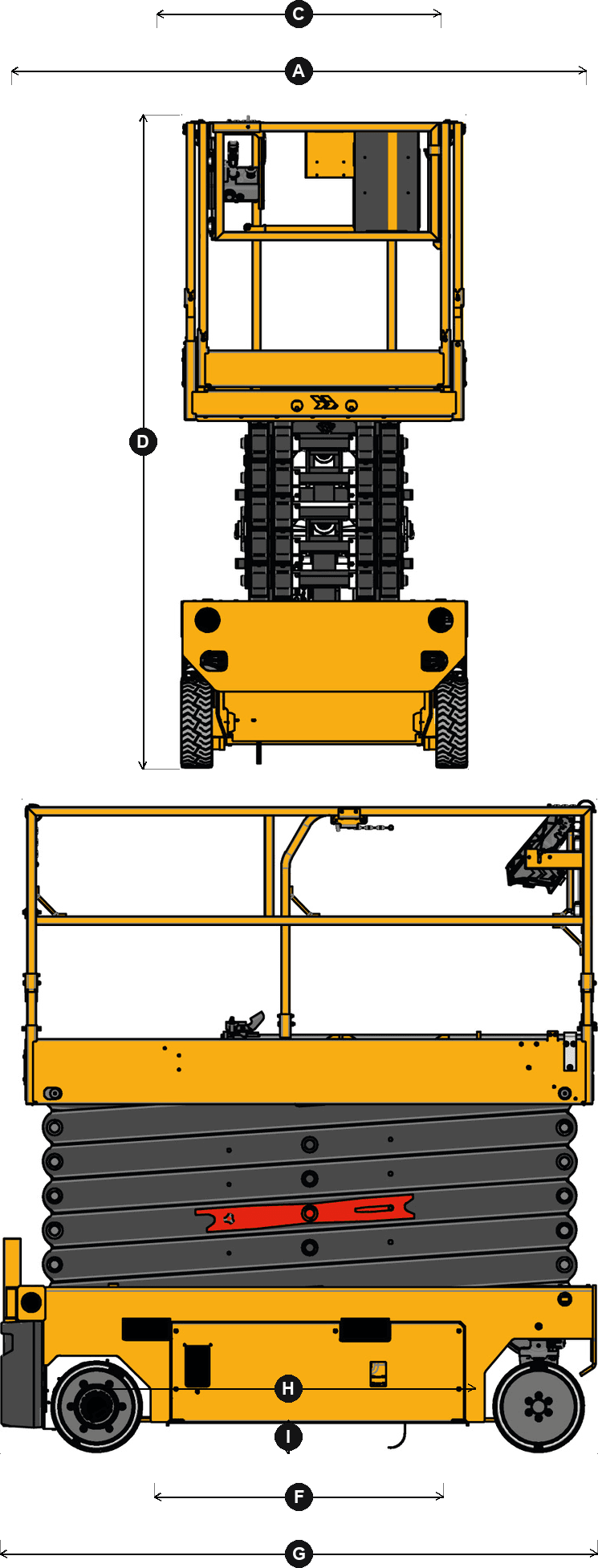

What are the dimensions of the Haulotte Compact 14?
- APlatform length
- 2.4 m
- Platform length (extended)
- 3.32 m
- CPlatform width
- 1.17 m
- DTransport height
- 2.72 m
- FWidth
- 1.2 m
- GLength
- 2.5 m
- HWheelbase
- 1.86 m
- IGround clearance
- 12.5 cm
What is the Haulotte Compact 14 used for?
The Haulotte Compact 14 is an electric scissor lift for indoor work, with a platform that rises to 11.75 m. The 2.4 × 1.17 m work platform with a 0.92 m slide-out extension reaches a total length of 3.32 m, which gives room for a crew and materials; this is useful when installing services along the ceiling, ventilation ducts or roof structure elements.
The unladen weight of 3,070 kg means the load capacity of the floor, floor slab or goods lift must be checked before driving on. The 1.2 m width allows it to pass through gates and double doors, and without guardrails the machine is 2.02 m high, which should be taken into account for lower access openings. Power from 24 V batteries with a capacity of 225 Ah allows work with no exhaust fumes in enclosed spaces.
The permissible tilt during work is 3.5° longitudinally and 1.5° laterally, and once the platform is raised the pothole guards deploy, reducing the ground clearance to 2 cm, which protects against a wheel dropping into an uneven patch in the floor. When choosing between a 12-metre and a 14-metre scissor lift, the ceiling height is decisive: the Compact 14 gives a 13.75 m working height, climbs gradients of up to 25% and has three drive speed ranges (0.7 / 1.5 / 4.2 km/h).
- Installations beneath high ceilings
- Work in logistics centres
- Maintenance of roof structures
- Installing ventilation ducts
- Painting tall halls
- Fire protection installations
What does renting the Haulotte Compact 14 include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
