JLG · Electric scissor lift
JLG 4069LE
Electric scissor lift rental · working height 14.2 m · capacity 360 kg
- Working height
- 14.2m
- Capacity
- 360kg
- Platform height
- 12.19m
- Width
- 1.75m
- Weight
- 5,300kg
Renting the JLG 4069LE electric scissor lift gives you a 14.2 m working height, 360 kg capacity and a 2.92 × 1.65 m platform; it is a machine for intensive installation work in large buildings where height and a spacious platform count. It stands out for its zero-emission electric drive with an oscillating rear axle and traction control, which lets it work both in a hall and on a paved yard, and for its non-marking tyres. The lift comes from RK Rental's own fleet; we arrange transport to site: Bydgoszcz, Toruń, Poznań and anywhere in Poland.
JLG
Rental
JLG 4069LE: from PLN 190 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Buy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the JLG 4069LE?
- Working height
- 14.2 m
- Platform height
- 12.19 m
- Capacity
- 360 kg
- Deck extension
- 0.91 m
- Unladen weight
- 5,300 kg
- Power source
- Electric
- Drive
- 2WD
- Tyres
- Non-marking
- Intended use
- Indoor and outdoor
- Inside turning radius
- 2.29 m
- Outside turning radius
- 4.88 m
- Maximum drive height
- 9.14 m
- Lifting / lowering time
- 54 / 50 s
- Drive speed (stowed)
- 4.8 km/h
- Gradeability
- 35%
- Maximum ground pressure
- 4.3 kg/cm²
- Charger
- automatic 20 A, 120/240 V, 50/60 Hz
What are the dimensions of the JLG 4069LE?
- AStowed height (guardrails up)
- 2.80 m
- BPlatform guardrail height
- 1.10 m
- CStowed height (guardrails folded)
- 2.04 m
- DPlatform dimensions (W × L)
- 1.65 m × 2.92 m
- EDeck extension
- 0.91 m
- FOverall width
- 1.75 m
- GOverall length
- 3.07 m
- HWheelbase
- 2.32 m
- IGround clearance
- 0.20 m
What is the JLG 4069LE used for?
The JLG 4069LE is a large scissor lift with a platform height of 12.19 m, chosen for installing building services, structures and finishes in industrial halls, logistics centres and industrial facilities. The 2.92 × 1.65 m platform with a 0.91 m deck extension gives plenty of room for a crew, tools and materials, and the 360 kg capacity allows heavier items to be taken up.
Power from eight 6 V batteries (370 Ah) and electric drive mean zero exhaust fumes and near-silent running, including in halls in use; the batteries are charged by a built-in 20 A charger from a 230 V socket. Our unit has no generator: the version with a generator is a separate model, the JLG M4069. The transport dimensions are 3.07 × 1.75 × 2.81 m and the unladen weight is 5,300 kg; before driving through a gate and onto a floor slab, compare these with the size of the opening and the load capacity of the structure.
The model's spec sheet allows both indoor and outdoor use: the oscillating rear axle, traction control and 35% gradeability help on a paved yard, while the non-marking tyres protect industrial floors. In the 14-metre MEWP class, the JLG 4069LE is an option for projects where the lift will work for long periods and intensively.
- Installing services in industrial halls
- Steel roof structures
- Building logistics centres
- Installing industrial lighting
- Finishing tall interiors
What does renting the JLG 4069LE include?

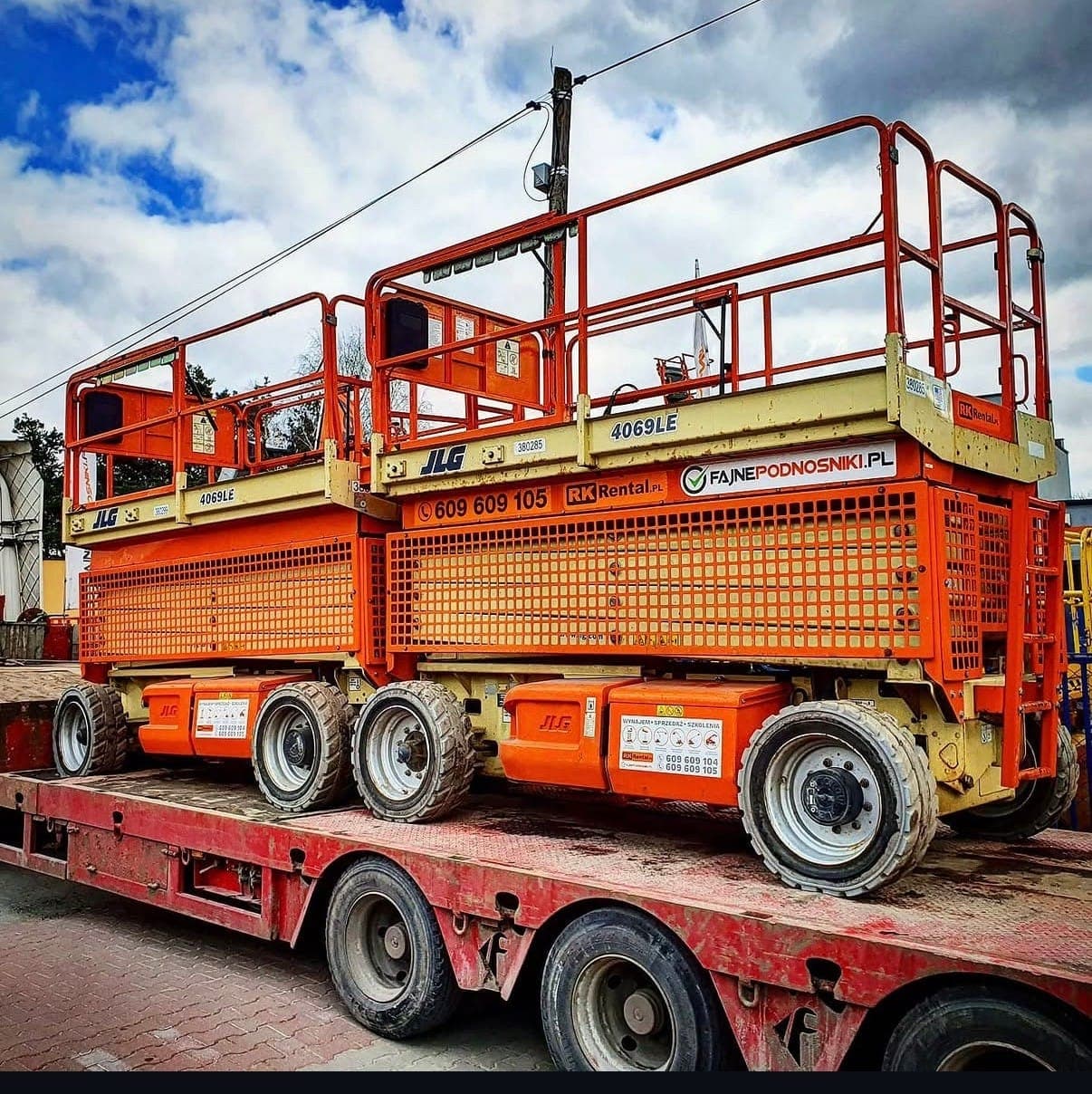

- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.

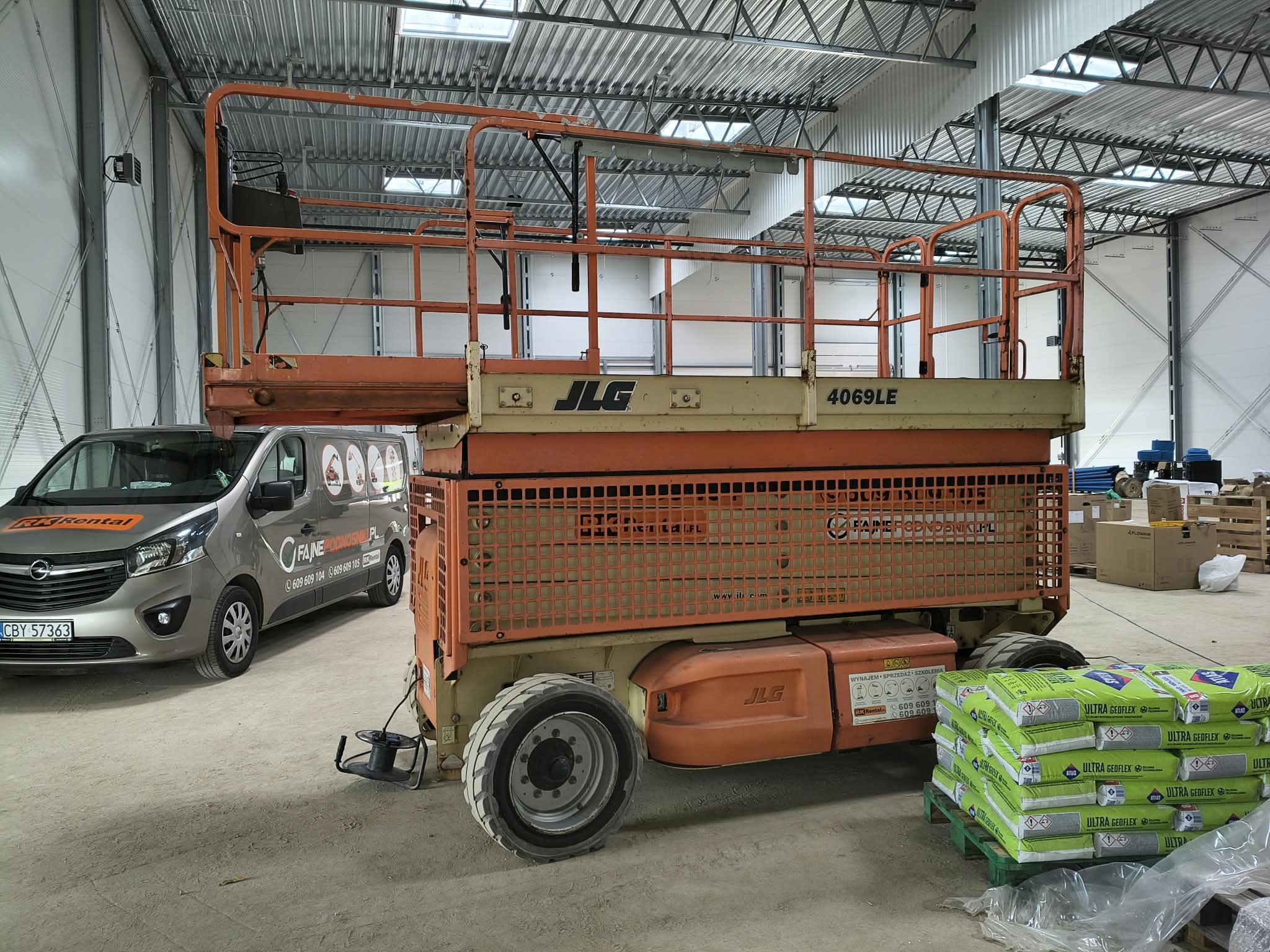

- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
