Haulotte · Diesel scissor lift
Haulotte Compact 12 DX
Diesel scissor lift rental · working height 12.06 m · capacity 450 kg · 4×4 drive
- Working height
- 12.06m
- Capacity
- 450kg
- Platform height
- 10.06m
- Width
- 1.78m
- Weight
- 3,965kg
Renting the Haulotte Compact 12 DX, a compact scissor lift, gives you 12.06 m of working height, 450 kg of capacity and a width of 1.78 m. It is a 4×4 diesel scissor lift for tight construction sites and places with difficult access. Within its class, it stands out for climbing gradients of up to 40%, self-levelling outriggers and a weight of 3,965 kg, lower than that of full-size rough terrain machines. RK Rental delivers it to Bydgoszcz, Toruń, Poznań and across Poland.
Haulotte
Rental
Haulotte Compact 12 DX: from PLN 160 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Prefer to buy? Haulotte Compact 12 DX, newBuy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Haulotte Compact 12 DX?
- Working height
- 12.06 m
- Platform height
- 10.06 m
- Capacity
- 450 kg
- Platform occupants
- 3
- Deck extension
- 1.2 m
- Unladen weight
- 3,965 kg
- Power source
- Diesel
- Engine type
- Diesel
- Drive
- 4WD
- Tyres
- Rough terrain
- Intended use
- Outdoor
- Stabilising outriggers
- Yes (self-levelling)
- Number of extensions
- 1
- Extension length
- 1.2 m
- Extended platform dimensions
- 3.7 x 1.45 m
- Stowed height
- 1.71 m
- Transport height (with guardrails)
- 2.56 m
- Drive speed
- 0.6 - 5.5 km/h
- Drivable at maximum height up to
- 8.15 m
- Maximum gradeability
- 40%

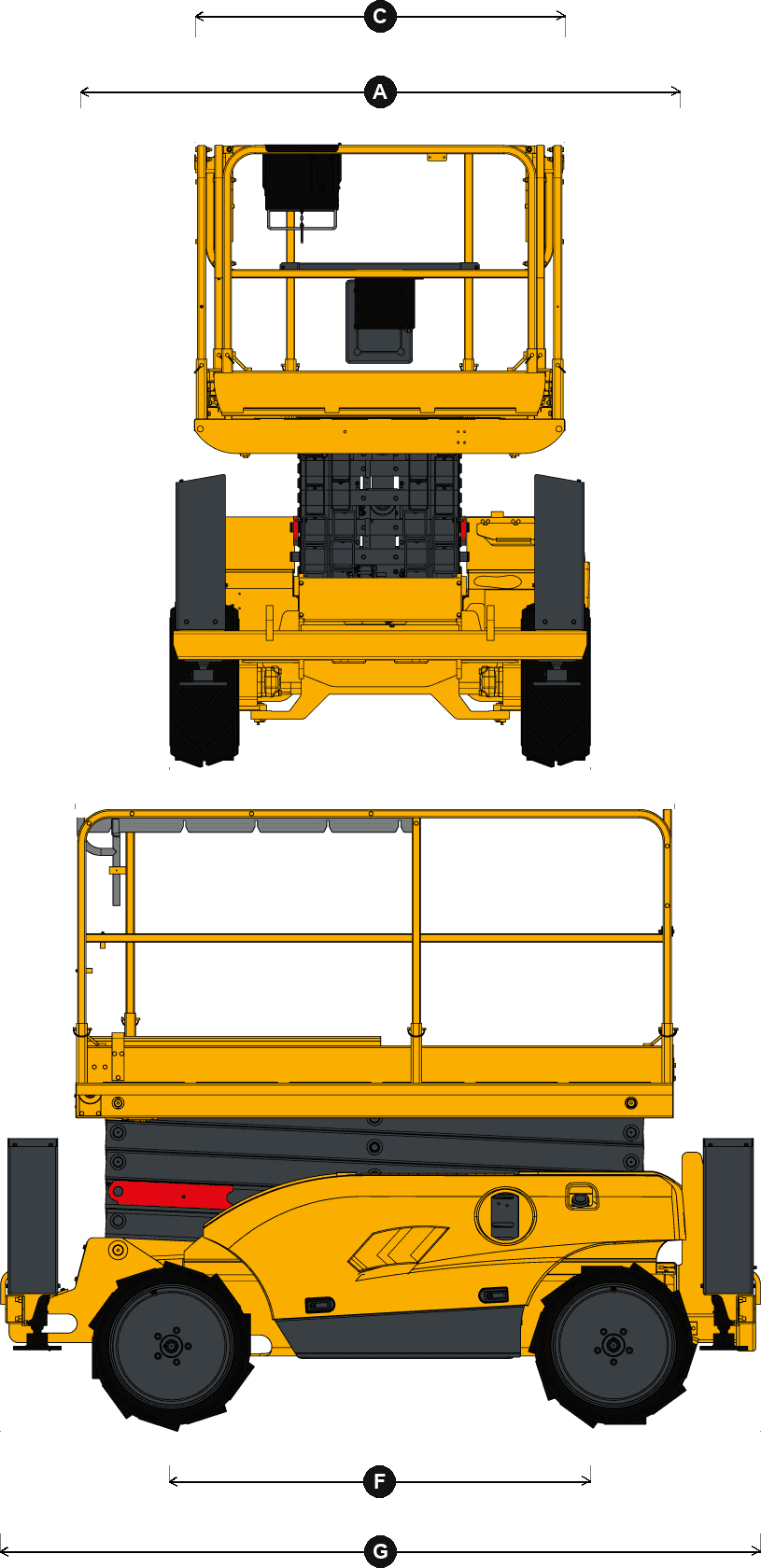

What are the dimensions of the Haulotte Compact 12 DX?
- APlatform length
- 2.45 m
- Platform length (extended)
- 3.7 m
- CPlatform width
- 1.45 m
- FWidth
- 1.78 m
- GLength
- 3.18 m
- HWheelbase
- 1.84 m
- IGround clearance
- 28 cm
What is the Haulotte Compact 12 DX used for?
The Haulotte Compact 12 DX is a compact diesel scissor lift with 4×4 drive and rough terrain tyres. With a length of 3.18 m and a width of 1.78 m, it fits where full-size rough terrain scissor lifts have no room to manoeuvre: between buildings, in rear service areas and in narrow access routes on construction sites. With the deck extended, the platform measures 3.7 × 1.45 m and takes 3 people within the 450 kg capacity.
Self-levelling stabilising outriggers let you level the machine on uneven ground, and 28 cm of ground clearance and gradeability of up to 40% make it easier to reach the work position. Driving with the platform raised is possible up to a height of 8.15 m, which speeds up linear work along façades. Drive speed is in the 0.6–5.5 km/h range, and the outer turning radius is 3.5 m.
An unladen weight of 3,965 kg and an 18.5 kW Kubota engine that meets the EU Stage V standard make this model a lighter alternative to large rough terrain scissor lifts: easier to transport and putting less load on the ground. The transport height with guardrails is 2.56 m. If you need greater capacity or a longer platform, a heavier RT-class MEWP will be a better choice.
- Façades in densely built-up areas
- Work on sloping ground
- Installations in rear service areas of buildings
- Linear work along walls
- Outdoor lighting and video surveillance
What does renting the Haulotte Compact 12 DX include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
