Genie · Telescopic boom lift

Genie S-45

Telescopic boom lift rental · working height 15.72 m · capacity 227 kg · 4×4 drive

Working height
15.72m
Capacity
227kg
Horizontal outreach
11.18m
Width
2.3m
Weight
6,926kg

Renting the Genie S-45 diesel telescopic boom lift gives you 15.72 m of working height, 11.18 m of horizontal outreach and 227 kg of platform capacity. It is a handy cherry picker for façade, roofing and installation work on construction sites. What sets it apart from straight telescopic booms is its 1.52 m jib and a reach of 1.5 m below ground level. We deliver it to Bydgoszcz, Toruń, Poznań and anywhere in Poland.

Genie S-45, telescopic boom lift for rentGenie
Working range

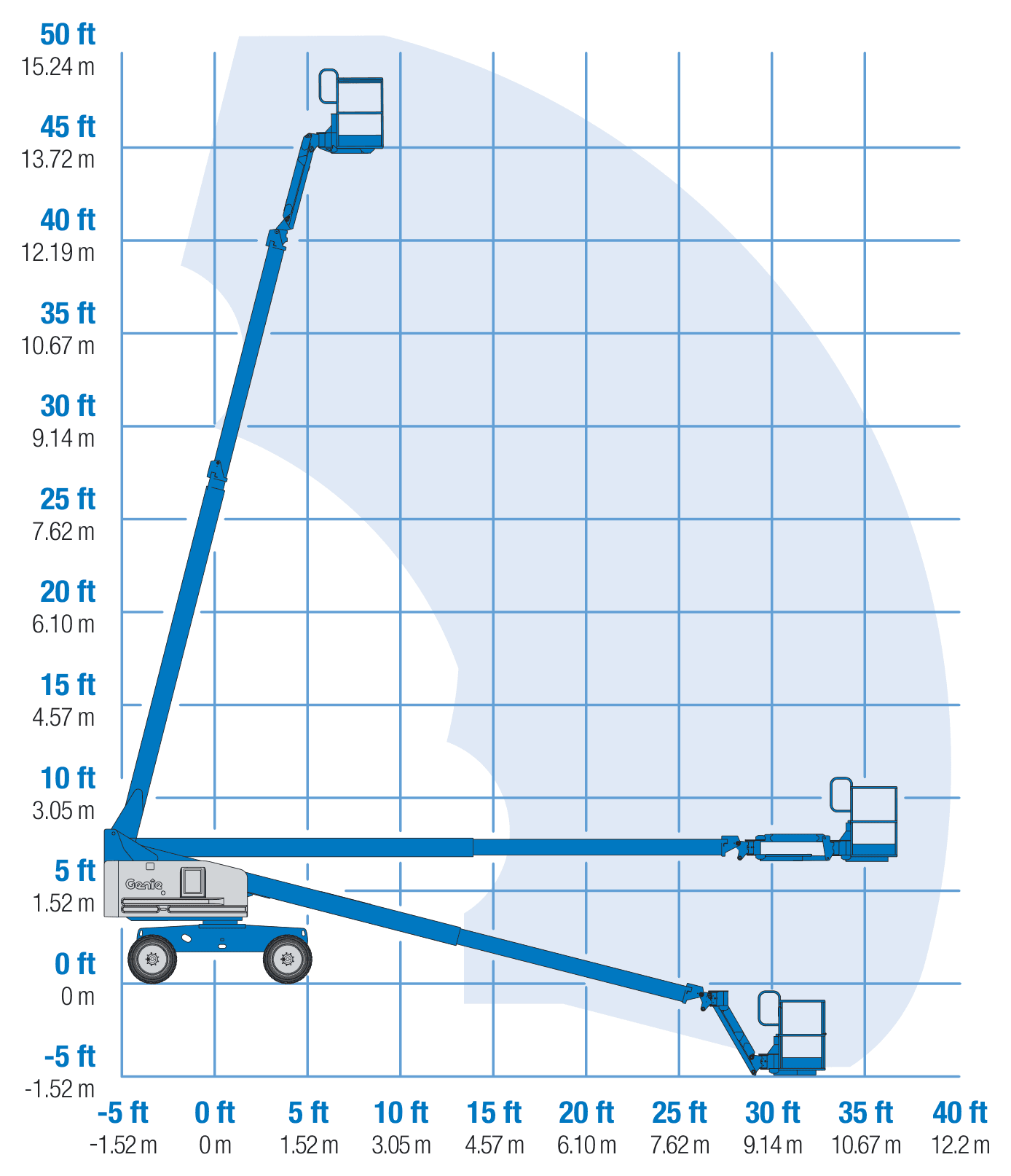

Genie S-45: working range chart (reach and capacity)

Rental

Genie S-45: from PLN 200 + VAT per day

The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.

See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price
wynajem@fajnepodnosniki.pl
4.9 on Google
New version for sale: Genie S-45 XCBuy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.
Technical specifications

What are the specifications of the Genie S-45?

Working height
15.72 m
Platform height
13.72 m
Capacity
227 kg
Horizontal outreach
11.18 m
Platform occupants
2
Unladen weight
6,926 kg
Power source
Diesel
Engine type
Diesel
Drive
4WD
Tyres
Rough terrain
Intended use
Outdoor
Below-ground reach
1.50 m
Jib length
1.52 m
Jib vertical articulation
135°
Platform rotation
160°
Turntable rotation
360° continuous
Turntable tail swing
0.86 m
Transport length (jib folded)
6.80 m
Drive speed (stowed / raised)
7.7 / 1.1 km/h
Gradeability (4WD)
40%
Dimensional drawing

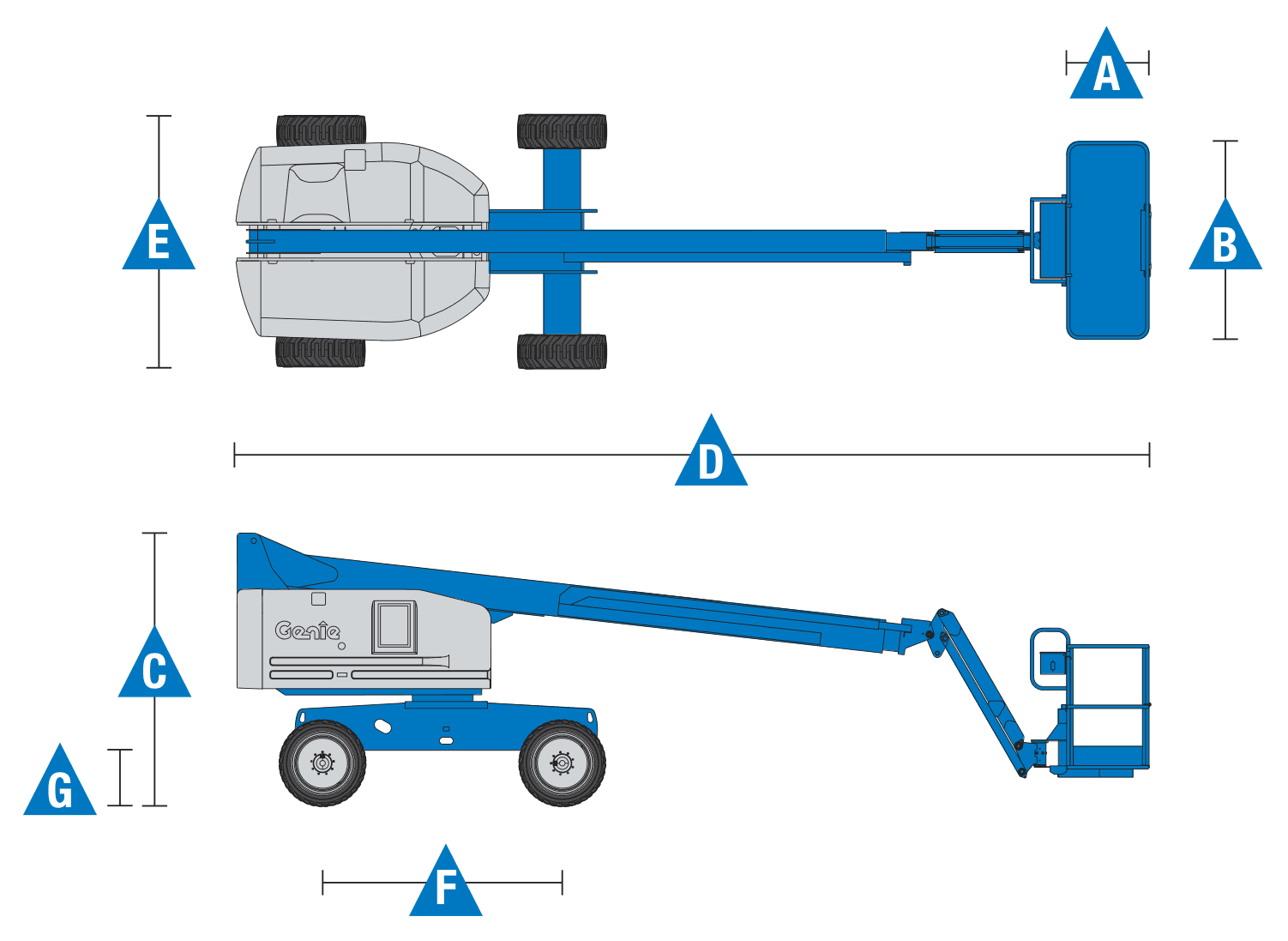

Genie S-45: dimensional drawing with labelled dimensions
Machine dimensions

What are the dimensions of the Genie S-45?

APlatform length
0.91 m
BPlatform width
2.44 / 1.83 m
CHeight (stowed position)
2.49 m
DLength (stowed position)
8.48 m
EMachine width
2.30 m
FWheelbase
2.20 m
GGround clearance under chassis
0.32 m
About the machine

What is the Genie S-45 used for?

The Genie S-45 is a telescopic boom lift with a jib at the end of the boom. The main boom extends the platform up to 11.18 m horizontally, and the 1.52 m jib (135° vertical rotation) lets you position the platform precisely at the end, at a cornice, eaves or a steel structure joint. Two people with tools work on the 0.91 × 2.44 m platform within the 227 kg capacity. It is a typical cherry picker for sheet-metal flashing work, façade installation, installations on façades and tree pruning.

The machine weighs approx. 6,930 kg and has 4×4 drive, rough terrain tyres, 0.32 m of ground clearance and 40% gradeability, so it is most at home on construction sites, gravel and compacted ground. The Deutz diesel engine (36.5 kW) lets it work away from a power supply; it is a machine for outdoor use. Before driving onto block paving, a ramp or a floor slab, check that the ground can bear the machine's weight.

When choosing, take into account the 0.86 m turntable tail swing: when slewing, the counterweight extends beyond the chassis, so next to a wall or in a traffic lane the work zone must be fenced off. For transport the jib folds under the boom, and the machine's length drops to 6.80 m. Among telescopic booms of similar height, the S-45 is chosen when the jib and the ability to lower the platform below the driving level matter. If a larger crew with heavier materials is to work on the platform, it is worth comparing it with the JLG 460SJ.

  • Sheet-metal flashing and gutters
  • Work under eaves using the jib
  • Façade cladding installation
  • Steel structure maintenance
  • Work on quaysides and embankments
  • Roadside tree pruning
Rental at RK Rental

What does renting the Genie S-45 include?

  • We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
  • Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
  • Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
RK Rental · fajnepodnosniki.pl · Brzoza near Bydgoszcz · wynajem@fajnepodnosniki.plTechnical data according to the manufacturer, indicative values · updated: · RK-W/GENIE-S-45

16 m · similar machines

What can replace the Genie S-45? Machines with similar specifications

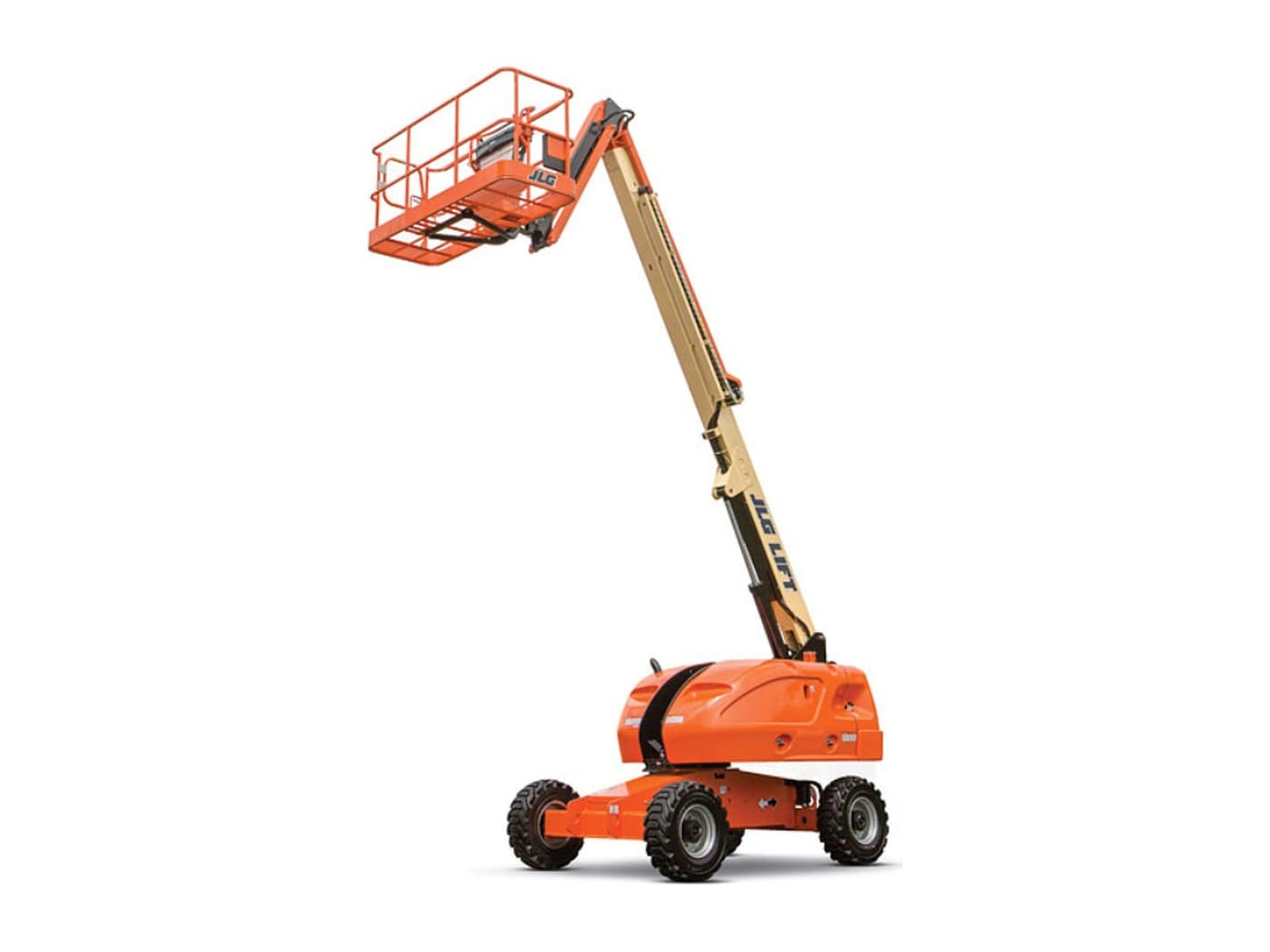

JLG 400SJ for rent

JLG

JLG 400SJ

Height
16.02 m
Capacity
227 kg
Weight
7,189 kg
Data sheet

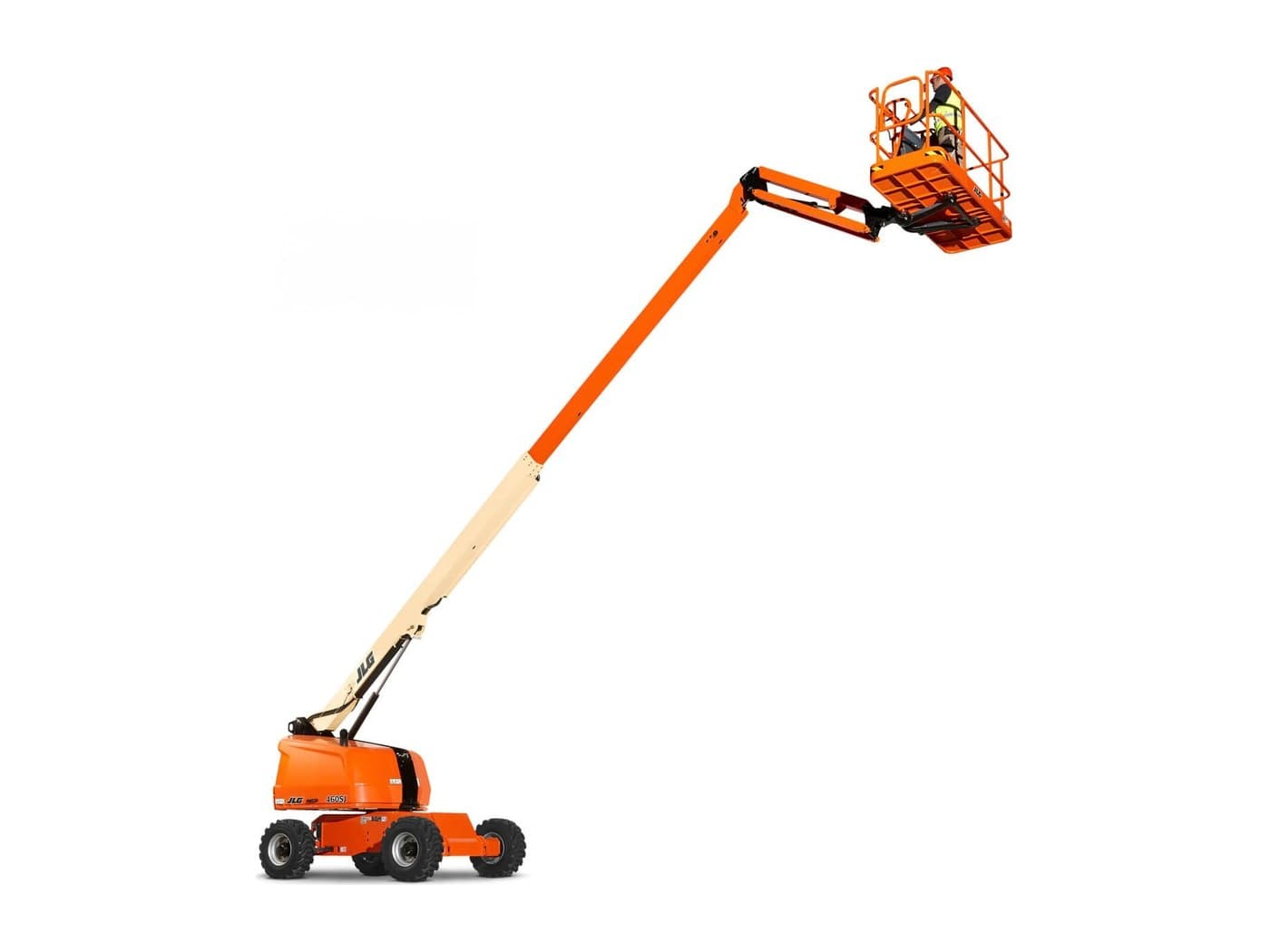

JLG 460SJ for rent

JLG

JLG 460SJ

Height
16.1 m
Capacity
270 kg
Weight
7,975 kg
Data sheet

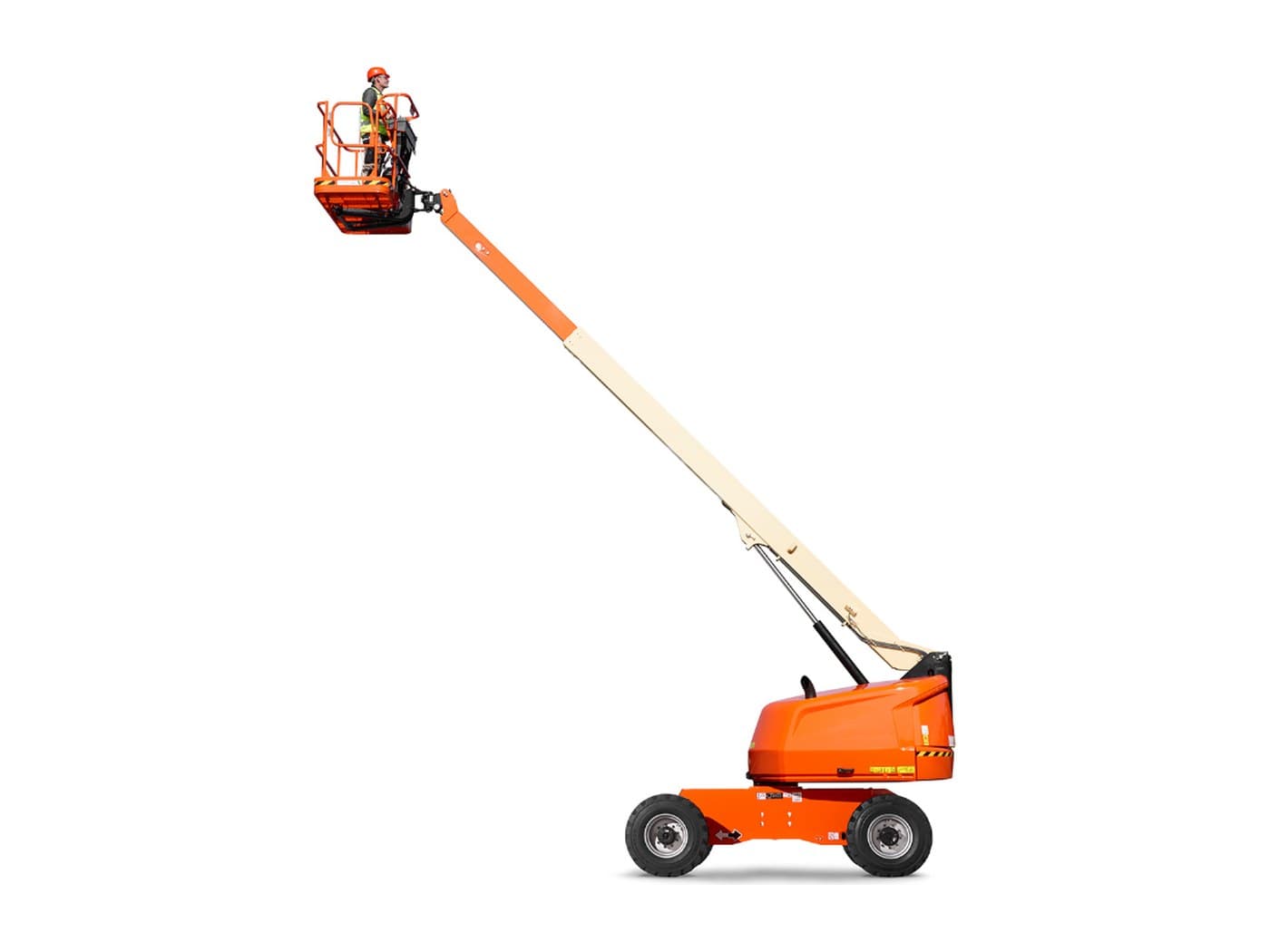

JLG 400S for rent

JLG

JLG 400S

Height
14.36 m
Capacity
270 kg
Weight
6,680 kg
Data sheet
Genie S-40 for rent

Genie

Genie S-40

Height
14.2 m
Capacity
227 kg
Weight
5,420 kg
Data sheet
Comparison of the Genie S-45 with equivalent machines
ModelWorking heightCapacityOutreachWidthWeightPower source
Genie S-45 · this sheet15.72 m227 kg11.18 m2.3 m6,926 kgDiesel
JLG 400SJ16.02 m227 kg12.49 m2.3 m7,189 kgDiesel
JLG 460SJ16.1 m270 kg12.72 m2.31 m7,975 kgDiesel
JLG 400S14.36 m270 kg10.78 m2.3 m6,680 kgDiesel
Genie S-4014.2 m227 kg9.65 m2.3 m5,420 kgDiesel

Genie S-45: frequently asked questions

How many people fit on the Genie S-45 platform?

Two people can work on the 0.91 × 2.44 m platform. The combined weight of people, tools and materials must not exceed 227 kg.

Can the Genie S-45 platform reach below the level the machine stands on?

Yes, the reach below ground level is 1.5 m. This makes work on quaysides, embankments and excavation walls easier when the machine stands on the crest.

Is the Genie S-45 suitable for uneven construction site terrain?

Yes, it has 4×4 drive, rough terrain tyres and 0.32 m of ground clearance, so it can travel over gravel and compacted ground. For work with the boom raised, the ground must be load-bearing and level within the limits permitted by the manufacturer.

What is the working height of the Genie S-45?

The working height of the Genie S-45 is 15.72 m. Working height is the platform height plus the reach of the person working on it (2 m is assumed), so a machine is chosen for the work location, not for your own height.

What is the capacity of the Genie S-45?

The capacity of the Genie S-45 is 227 kg. The figure includes the operator, tools and material taken onto the platform: everything that goes up counts towards the capacity.

What is the horizontal outreach of the Genie S-45?

The horizontal outreach of the Genie S-45 is 11.18 m. This is how far the machine reaches sideways from its chassis, that is, over an obstacle such as a stockpile, ditch, greenery, fence or parked car.

Is the Genie S-45 suitable for use inside a building?

The Genie S-45 has diesel 4x4 drive, so it is intended for work outdoors and on rough ground. For enclosed spaces we choose an electric machine, because a diesel engine releases exhaust fumes where people breathe.

What are the dimensions of the Genie S-45 and how much does it weigh?

The Genie S-45 measures 8.48×2.3×2.49 m (L × W × H) and weighs 6,926 kg. These figures decide access to the work location: the width of the gate and route, the load-bearing capacity of the floor or ground, and the means of transport.

Do I need a UDT licence to operate the Genie S-45?

Yes. Operating a self-propelled mobile elevating work platform independently requires a UDT qualification certificate (UDT is the Polish Office of Technical Inspection). RK Rental runs its own training courses with an official examination. You can ask about renting with an operator when you request a quote; this is possible when one of our service technicians qualified as an operator is free on that date.

Do you deliver the Genie S-45 to the work site?

Yes, we arrange transport and deliver machines across Poland, from our base in Brzoza near Bydgoszcz, most often around Bydgoszcz, Toruń and Poznań. The machine arrives on site after inspection, with a current UDT inspection.

Can I buy the Genie S-45 after renting it?

Yes, this is our “Buy the rented machine” scheme. If the Genie S-45 works well for you, you can buy the machine you rented, and part of the rental cost can be deducted from the purchase price. We agree the details in the quote.

How much does it cost to rent the Genie S-45?

Renting the Genie S-45 (the 16 m working height class) costs from PLN 200 + VAT per day. A day costs PLN 350–500 for a rental of 1–3 days, PLN 300 up to 7 days, PLN 250 up to 14 days and PLN 200 over 14 days. Rates are net per day, excluding transport (transport is quoted separately, from PLN 250 net). The lowest rate applies to rentals of more than 14 days. We confirm the final price when you book, because it depends on the model, the rental period and the delivery location.
