Genie · Telescopic boom lift
Genie S-65
Telescopic boom lift rental · working height 21.8 m · capacity 227 kg · 4×4 drive
- Working height
- 21.8m
- Capacity
- 227kg
- Horizontal outreach
- 17.1m
- Width
- 2.49m
- Weight
- 10,102kg
Renting the Genie S-65 diesel telescopic boom lift gives you 21.8 m of working height, 17.1 m of horizontal outreach and a capacity of 227 kg: a cherry picker for tall façades, industrial buildings and structures when you need to work far from the chassis. Compared with straight telescopic booms, it stands out for its 1.52 m jib for precise basket positioning and its reach of 2.72 m below ground level. We deliver it to Bydgoszcz, Toruń, Poznań and across the country.
Genie
Rental
Genie S-65: from PLN 250 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price New version for sale: Genie S-65 XCBuy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Genie S-65?
- Working height
- 21.8 m
- Platform height
- 19.8 m
- Capacity
- 227 kg
- Horizontal outreach
- 17.1 m
- Platform occupants
- 2
- Unladen weight
- 10,102 kg
- Power source
- Diesel
- Engine type
- Diesel
- Drive
- 4WD
- Tyres
- Rough terrain
- Intended use
- Outdoor
- Below-ground reach
- 2.72 m
- Jib length
- 1.52 m
- Jib vertical articulation
- 135°
- Platform rotation
- 160°
- Turntable rotation
- 360° continuous
- Turntable tail swing
- 1.22 m
- Transport length (jib folded)
- 7.60 m
- Drive speed (stowed / raised)
- 4.8 / 1.1 km/h
- Gradeability (4WD)
- 45%

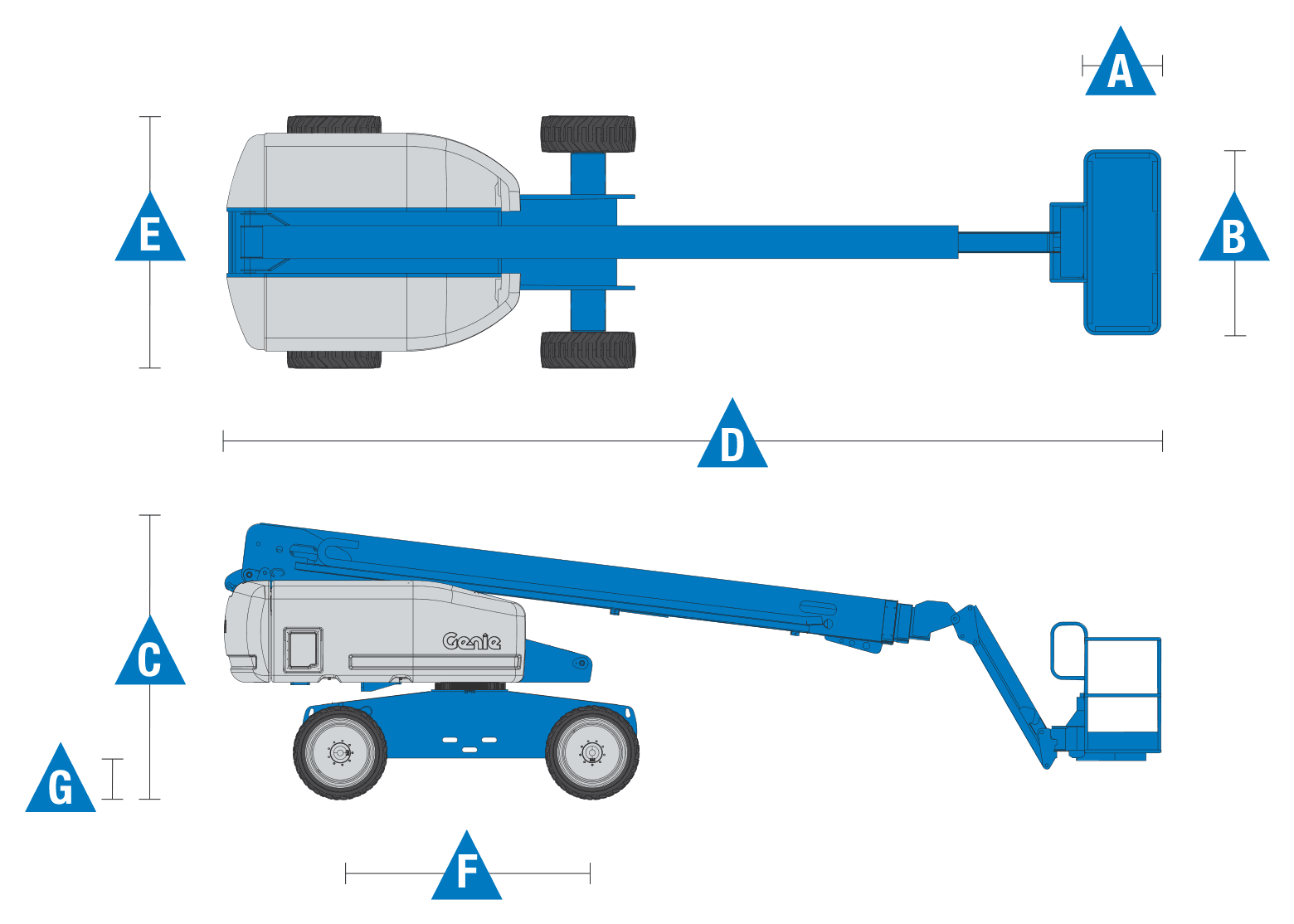

What are the dimensions of the Genie S-65?
- APlatform length
- 0.91 m
- BPlatform width
- 2.44 m
- CHeight (stowed position)
- 2.72 m
- DLength (stowed position)
- 9.50 m
- EMachine width
- 2.49 m
- FWheelbase
- 2.51 m
- GGround clearance under chassis
- 0.37 m
What is the Genie S-65 used for?
The Genie S-65 combines a long telescopic boom with a 1.52 m jib. The boom raises the platform to 19.8 m and extends it 17.1 m horizontally, while the jib lets you fine-tune the basket position at a cornice, a gutter or a structural joint without moving the chassis. The specification provides for two platform variants: 0.91 × 2.44 m for installation work with longer materials and 0.76 × 1.83 m for working between structural members.
Rough terrain tyres, 4×4 drive, 0.37 m of ground clearance and 45% gradeability let it travel across an unpaved construction site. Its weight of 10,102 kg requires load-bearing ground: before driving onto a floor slab, a ramp or block paving, their permissible load must be confirmed. A width of 2.49 m means transport on a low-loader trailer and access through a sufficiently wide gate; for transport the jib folds under the boom, reducing the length to 7.60 m.
When choosing, remember the 1.22 m turntable tail swing: when the turntable rotates, the counterweight extends beyond the chassis, so the working area must be fenced off. Compared with the related Genie S-60, this aerial work platform reaches higher and has a jib, which you will appreciate when working on façade details, while the S-60 is lighter. The 132 l fuel tank reduces refuelling breaks during long shifts.
- Details on tall façades
- Work under cornices using the jib
- Work below ground level
- Erecting industrial building structures
- Tall tree care
What does renting the Genie S-65 include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
