Haulotte · Telescopic boom lift
Haulotte H25 TPX
Telescopic boom lift rental · working height 25.3 m · capacity 230 kg · 4×4 drive
- Working height
- 25.3m
- Capacity
- 230kg
- Horizontal outreach
- 16.9m
- Width
- 2.48m
- Weight
- 13,720kg
Renting the Haulotte H25 TPX diesel telescopic boom lift gives you a working height of 25.3 m, a horizontal outreach of 16.9 m and a capacity of 230 kg for two people: a cherry picker for work on tall industrial buildings, façades and structures that have to be reached from a distance. It has a 2.20 m jib with 140° of movement and 4×4 drive, and this unit works in RK Rental's own fleet. We arrange its transport to Bydgoszcz, Toruń, Poznań and across Poland.
Haulotte
Rental
Haulotte H25 TPX: from PLN 350 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Buy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Haulotte H25 TPX?
- Working height
- 25.3 m
- Platform height
- 23.3 m
- Capacity
- 230 kg
- Horizontal outreach
- 16.9 m
- Unladen weight
- 13,720 kg
- Power source
- Diesel
- Engine type
- Diesel
- Drive
- 4WD
- Tyres
- Rough terrain
- Intended use
- Outdoor
- Max. horizontal outreach
- 16.90 m
- Platform occupants
- 2
- Jib vertical articulation
- 140° (-70° / +70°)
- Jib length
- 2.20 m
- Platform rotation (hydraulic)
- 180°

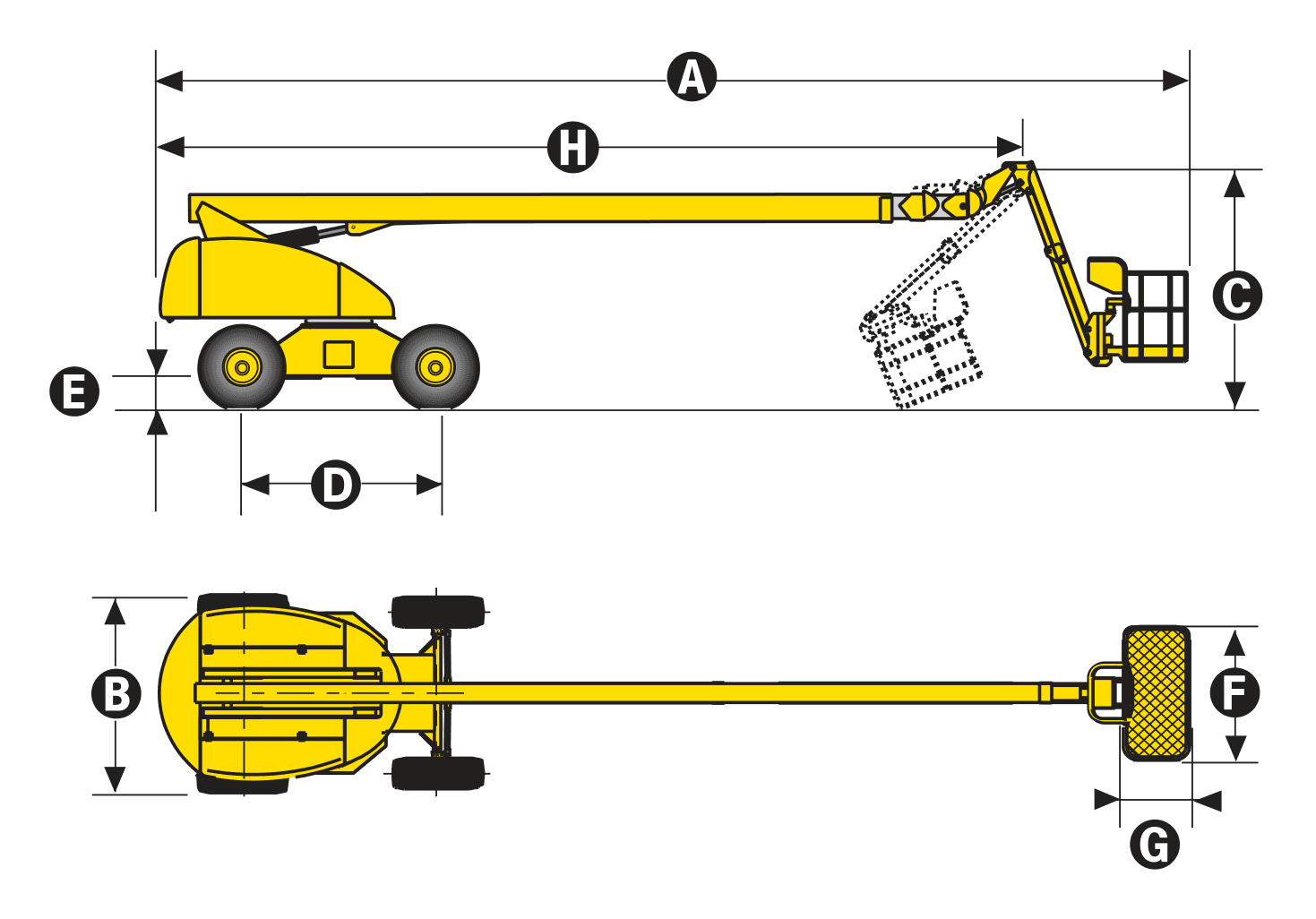

What are the dimensions of the Haulotte H25 TPX?
- AOverall length (stowed)
- 13.10 m
- BOverall width
- 2.48 m
- CStowed height
- 3.00 m
- DWheelbase
- 2.49 m
- EGround clearance
- 0.35 m
- FPlatform length
- 1.80 m
- GPlatform width
- 0.80 m
- HTransport length
- 10.80 m
What is the Haulotte H25 TPX used for?
The Haulotte H25 TPX is a 25 m class aerial work platform with a telescopic boom and jib, designed for rough terrain work. The 0.80 × 1.80 m platform holds two people, and the basket rotates hydraulically through 180°. The 16.9 m horizontal outreach lets you position the machine far from the building, beyond an excavation, scaffolding or a strip of greenery, and still reach the façade, the roof or the roof structure of an industrial building.
4×4 drive, rough terrain tyres and 40% gradeability let it travel across a construction site, but with a weight of 13,720 kg and a wheel load of up to 6,960 kg, the load-bearing capacity of the ground is critical. Work is permitted in wind speeds of up to 45 km/h and at a tilt of up to 5°. The 32.1 kW Hatz diesel engine makes it primarily a machine for outdoor use; in industrial buildings, good ventilation is required.

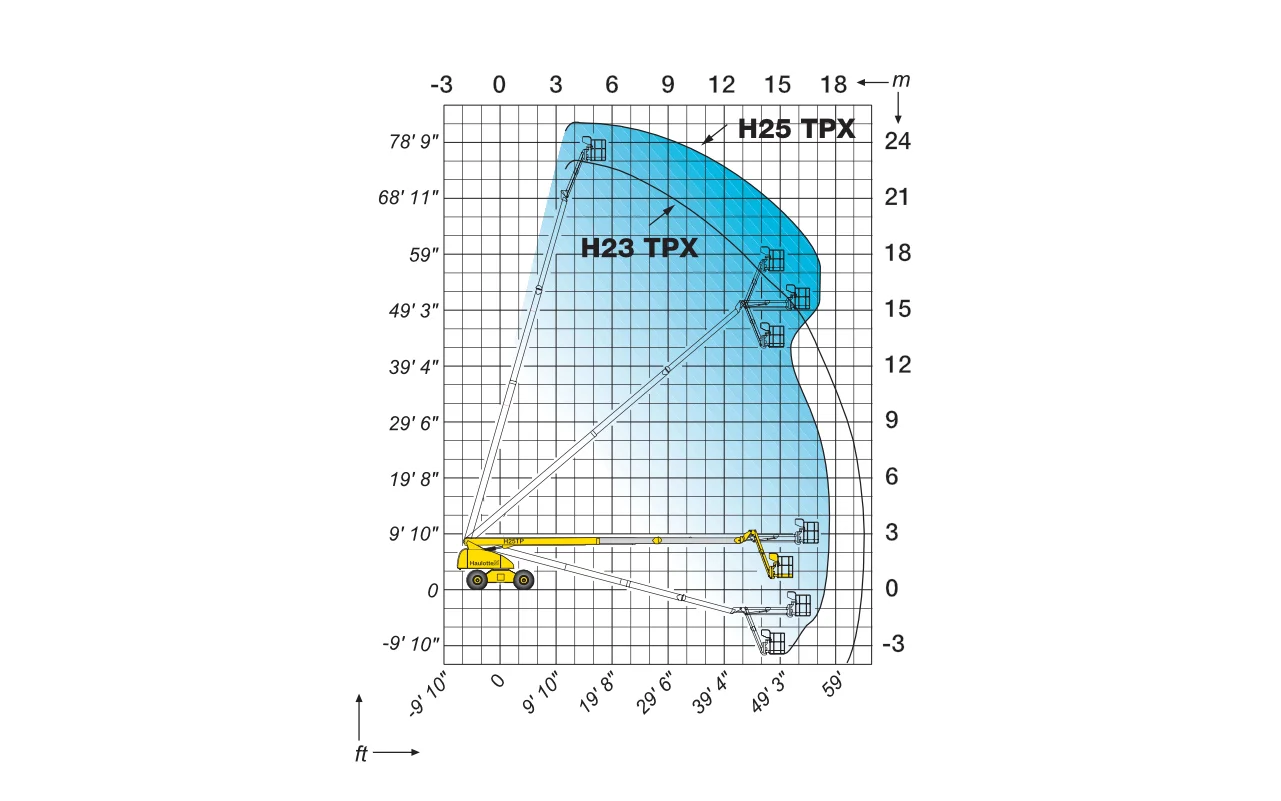

When planning access, length matters: 13.10 m in the stowed position and 10.80 m for transport, with a width of 2.48 m and a height of 3.00 m. The tail swing is 1.10 m, so when the turret rotates next to a road or a wall you need to leave a margin. Compared with the lower H23 TPX, it gives more height (25.3 m against 22.6 m) but less sideways reach (16.9 m against 19.5 m), so when distance from the structure matters the H23 TPX is often the better choice. The 2.20 m jib helps you get around cornices and structural members.
- Industrial building roof structures
- Façades of multi-storey buildings
- Installing large-format advertising
- Bridge and viaduct inspections
- Tall tree trimming
- Working from a distance over obstacles
What does renting the Haulotte H25 TPX include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
