Genie · Telescopic boom lift
Genie S-85
Telescopic boom lift rental · working height 27.9 m · capacity 227 kg · 4×4 drive
- Working height
- 27.9m
- Capacity
- 227kg
- Horizontal outreach
- 23.3m
- Width
- 2.49m
- Weight
- 17,237kg
Renting the Genie S-85 diesel telescopic boom lift gives you 27.9 m of working height, 23.3 m of horizontal outreach and a capacity of 227 kg: a machine for jobs where you need to reach far over an obstacle. It stands out for its 1.52 m jib and a reach of 2.90 m below ground level, useful at quaysides, excavations and slopes. We deliver the Genie S-85 from the RK Rental fleet to Bydgoszcz, Toruń, Poznań and any location in Poland.
Genie
Rental
Genie S-85: from PLN 350 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price New version for sale: Genie S-85 XCBuy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Genie S-85?
- Working height
- 27.9 m
- Platform height
- 25.9 m
- Capacity
- 227 kg
- Horizontal outreach
- 23.3 m
- Platform occupants
- 2
- Unladen weight
- 17,237 kg
- Power source
- Diesel
- Engine type
- Diesel
- Drive
- 4WD
- Tyres
- Rough terrain
- Intended use
- Outdoor
- Below-ground reach
- 2.90 m
- Jib length
- 1.52 m
- Jib vertical articulation
- 135°
- Platform rotation
- 160°
- Turntable rotation
- 360° continuous
- Turntable tail swing
- 1.42 m
- Transport length (jib folded)
- 11.60 m
- Drive speed (stowed / raised)
- 5.3 / 1.0 km/h
- Gradeability (4WD)
- 45%

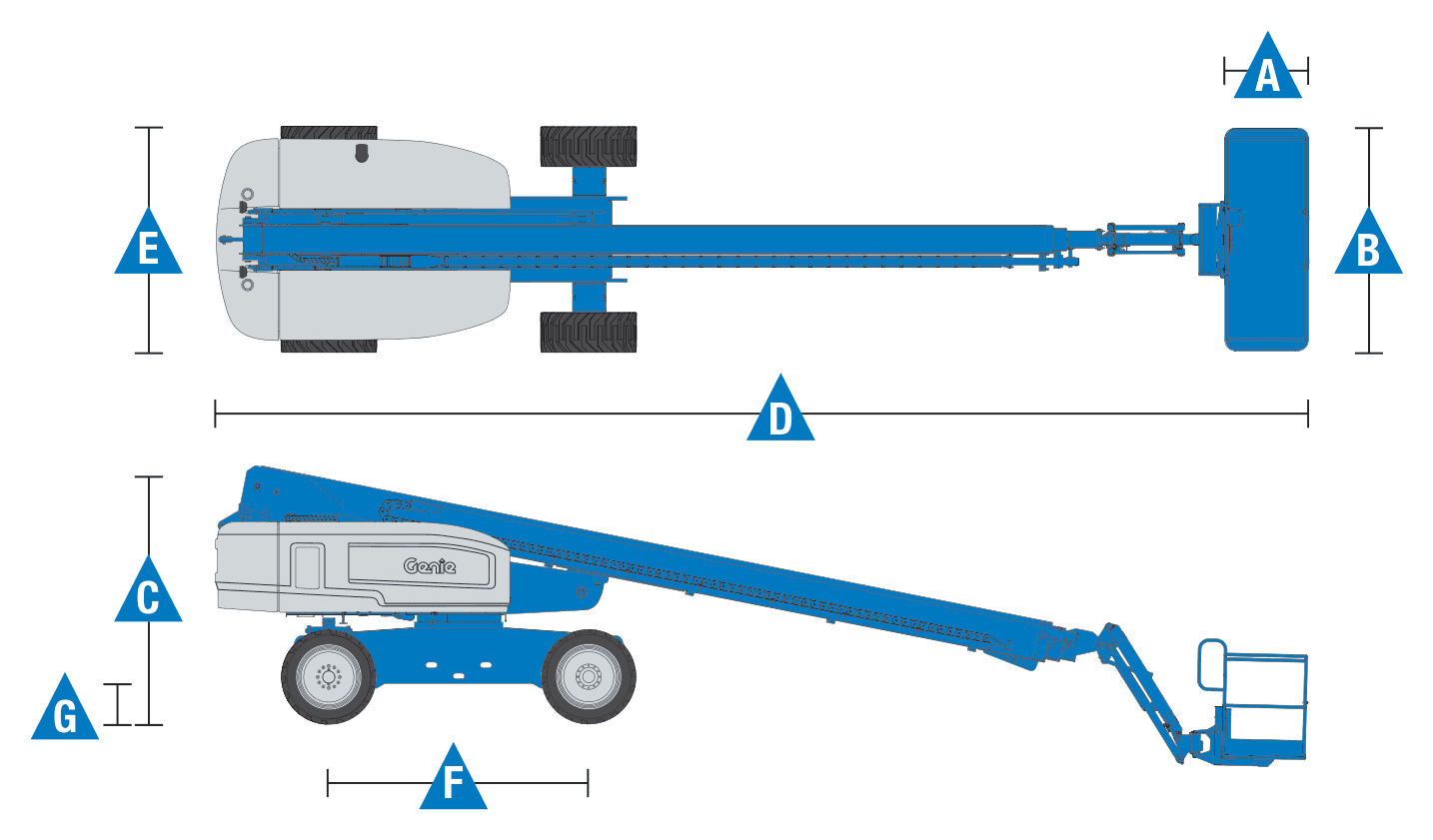

What are the dimensions of the Genie S-85?
- APlatform length
- 0.91 / 0.76 m
- BPlatform width
- 2.44 / 1.83 m
- CHeight (stowed position)
- 2.80 m
- DLength (stowed position)
- 12.20 m
- EMachine width
- 2.49 m
- FWheelbase
- 2.80 m
- GGround clearance under chassis
- 0.40 m
What is the Genie S-85 used for?
The Genie S-85 is a large telescopic aerial work platform for outdoor use: on building construction sites, on steel structures and bridges and on the roofs of extensive industrial buildings. A horizontal outreach of 23.3 m at a platform height of 25.9 m means the machine can stand far from the structure while the basket still reaches over the parapet or deep into the structure. The 1.52 m jib makes it easier to position the platform precisely at a detail.
The chassis, with 4WD, 0.40 m of ground clearance, rough terrain tyres and 45% gradeability, copes with an unpaved site, but its unladen weight of 17,237 kg requires load-bearing ground: before driving onto a floor slab, block paving or an embankment, their permissible load must be checked. When the turntable rotates, the 1.42 m turntable tail swing must be taken into account, especially next to a wall or a busy road.
When choosing, compare three parameters: height, outreach and overall dimensions. The S-85 is 12.20 m long in the stowed position and 11.60 m with the jib folded under the boom, which makes manoeuvring and transport easier. The manufacturer offers a 0.91 × 2.44 m or 0.76 × 1.83 m basket; we will confirm the version of the unit in the RK Rental fleet when you enquire.
- Steel structure erection
- Work on bridges and viaducts
- Work on quaysides and slopes
- Roofs of extensive industrial buildings
- Glass façade installation
- Working over obstacles from a distance
What does renting the Genie S-85 include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
