JLG · Telescopic boom lift
JLG 860SJ
Telescopic boom lift rental · working height 28.21 m · capacity 230 kg · 4×4 drive
- Working height
- 28.21m
- Capacity
- 230kg
- Horizontal outreach
- 22.86m
- Width
- 2.49m
- Weight
- 16,732kg
Renting the JLG 860SJ diesel telescopic boom lift gives you 28.21 m of working height, 22.86 m of horizontal outreach and a capacity of 230 kg: a cherry picker for tall structures and work over obstacles. It stands out for its 1.83 m jib with a 130° working range and its 180° hydraulic basket rotator, which let you position the platform precisely at a detail. We bring the JLG 860SJ from the RK Rental fleet from our base in Brzoza to Bydgoszcz, Toruń, Poznań and to construction sites across Poland.
JLG
Rental
JLG 860SJ: from PLN 350 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Prefer to buy? JLG 860SJ, newBuy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the JLG 860SJ?
- Working height
- 28.21 m
- Platform height
- 26.2 m
- Capacity
- 230 kg
- Platform occupants
- 2
- Unladen weight
- 16,732 kg
- Power source
- Diesel
- Engine type
- Diesel
- Drive
- 4WD
- Tyres
- Rough terrain
- Intended use
- Outdoor
- Horizontal outreach
- 22.86 m
- Turntable rotation
- 360° (continuous)
- Platform rotator
- 180° (hydraulic)
- Jib length
- 1.83 m
- Jib articulation
- 130° (+70° / −60°)
- Drive speed
- 5.6 km/h
- Gradeability (2WD / 4WD)
- 25% / 45%
- Inside turning radius
- 3.81 m
- Outside turning radius
- 6.02 m
- Fuel tank
- 117 L

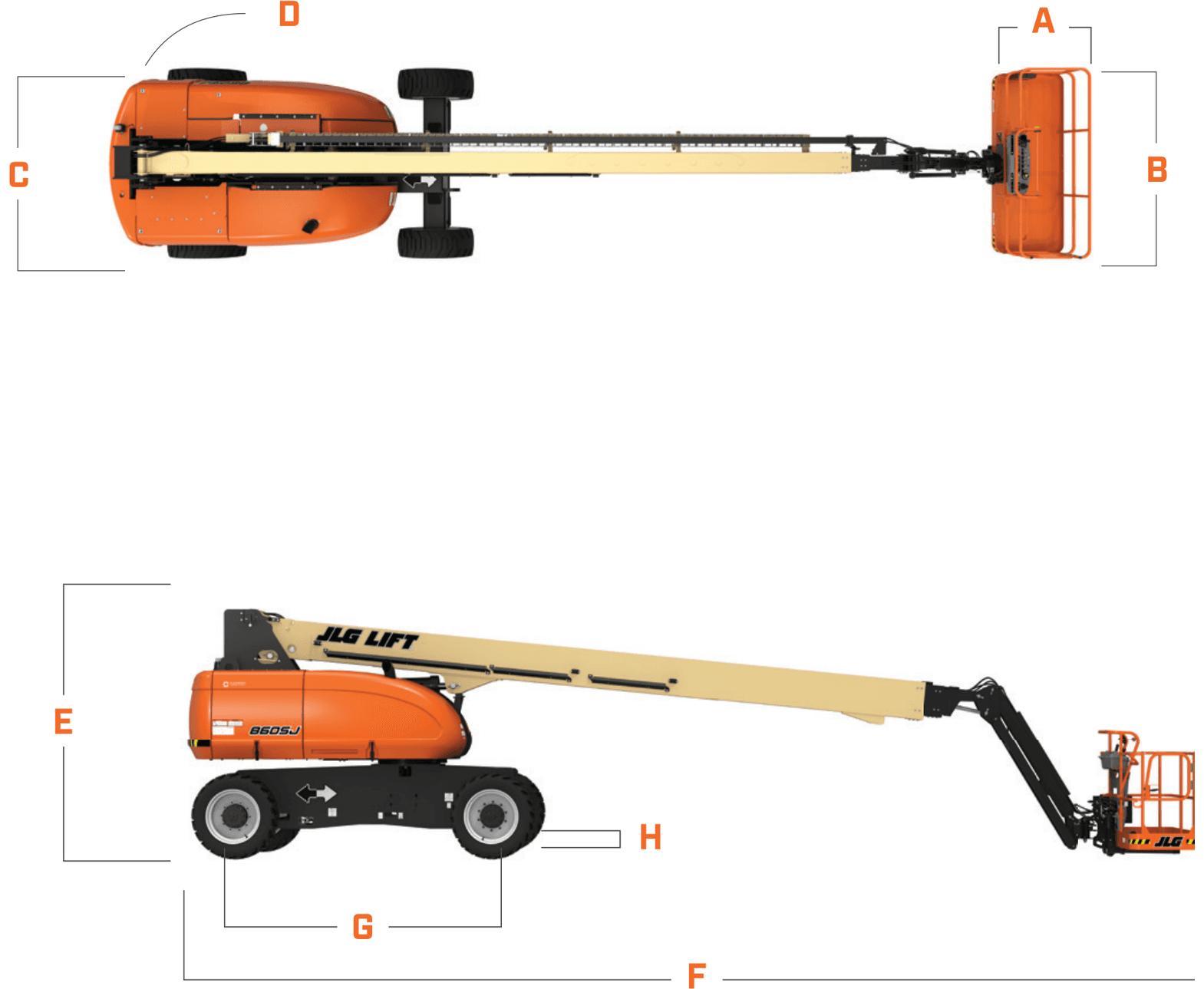

What are the dimensions of the JLG 860SJ?
- APlatform width
- 0.91 m
- BPlatform length
- 2.44 m
- CMachine width
- 2.49 m
- DZwis tylny (tailswing)
- 1.42 m
- EMachine height
- 3.05 m
- FMachine length
- 12.19 m
- GWheelbase
- 3.05 m
- HGround clearance
- 0.28 m
What is the JLG 860SJ used for?
The JLG 860SJ is a telescopic aerial work platform with an articulating jib, combining great height with precise basket positioning. The 1.83 m jib works through a range of +70° / −60°, the rotator turns the platform through 180°, and the turntable offers continuous 360° rotation. The operator can therefore approach a beam, services or a window from different sides without repositioning the machine, and the 0.91 × 2.44 m basket holds tools and materials.
The Deutz D2.9L4 Tier 4 Final engine rated at 50 kW (67 hp), 4WD and rough terrain tyres make the machine ideally suited to outdoor work. With 4WD it climbs gradients of up to 45%, with 2WD up to 25%, and the maximum ground pressure is 5.69 kg/cm². With a weight of 16,732 kg and 0.28 m of ground clearance, the access route should be compacted, load-bearing and free of deep ruts.
When planning the work position, take into account its width of 2.49 m, length of 12.19 m, tail swing of 1.42 m and turning radius of 3.81 m inside and 6.02 m outside. Compared with articulating cherry pickers, a telescopic boom achieves a large outreach more quickly, and the jib partly takes over their advantage, namely the ability to approach the target from above or from the side.
- Steel structure erection
- Work on beams and trusses
- Bridge and flyover inspections
- Mast and lighting installation
- Installations on industrial sites
- Repairs to tall façades
What does renting the JLG 860SJ include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
