Genie · Electric articulating boom lift
Genie Z-45/25J DC
Electric articulating boom lift rental · working height 15.94 m · capacity 227 kg
- Working height
- 15.94m
- Capacity
- 227kg
- Horizontal outreach
- 7.65m
- Width
- 1.79m
- Weight
- 7,400kg
The Genie Z-45/25J DC electric articulating boom lift, available for rental, gives you 15.94 m of working height, 7.65 m of horizontal outreach and 227 kg of capacity: a cherry picker for precision work in halls, where the basket has to clear services and structural elements. It stands out for its 1.52 m jib and zero turntable tail swing, so it can work next to walls and racking without the risk of the counterweight striking them. We deliver it in Bydgoszcz, Toruń, Poznań and anywhere in Poland.
Genie
Rental
Genie Z-45/25J DC: from PLN 220 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Prefer to buy? Genie Z-45/25J DC, newBuy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Genie Z-45/25J DC?

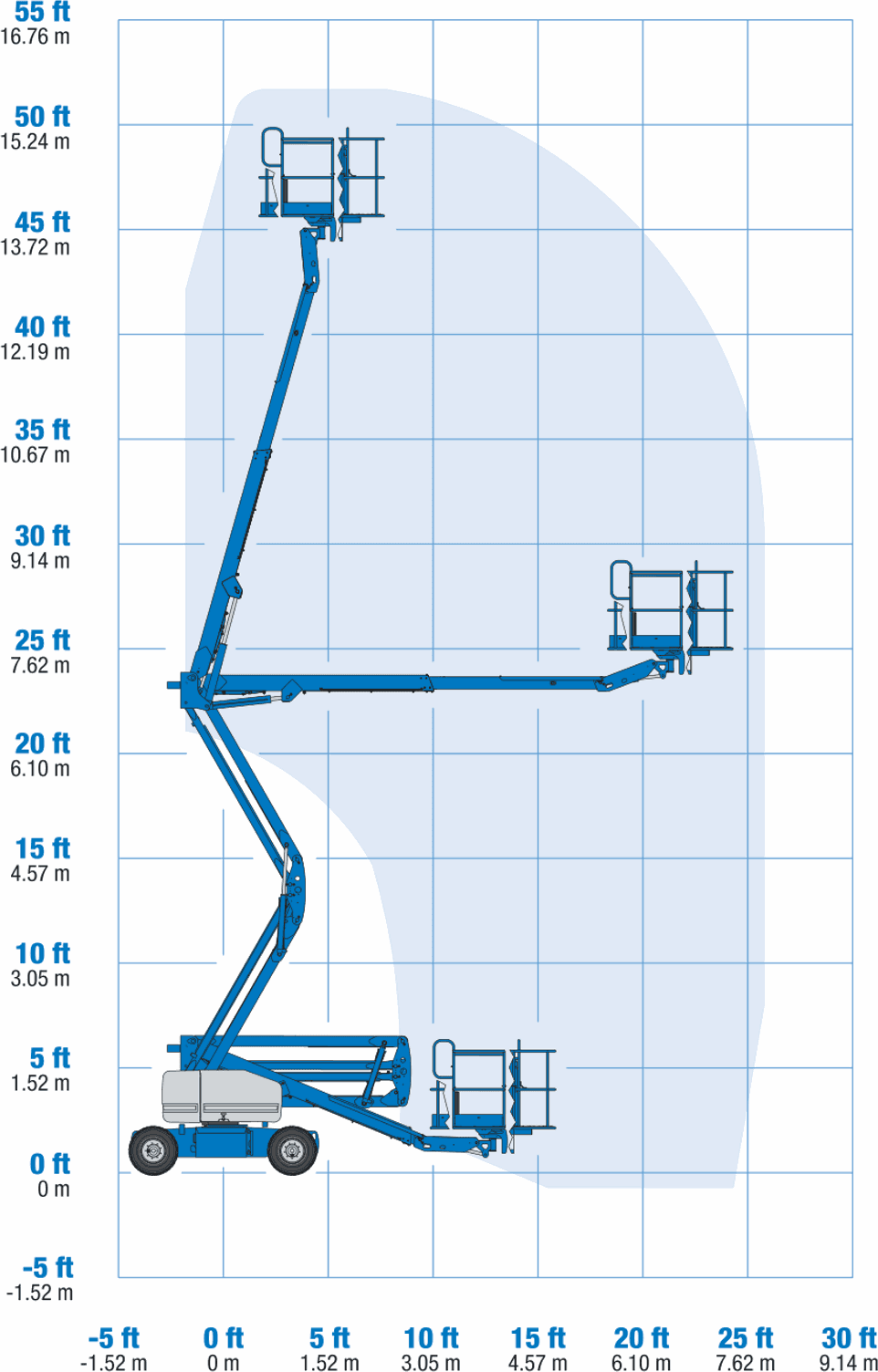

- Working height
- 15.94 m
- Platform height
- 13.94 m
- Capacity
- 227 kg
- Horizontal outreach
- 7.65 m
- Platform occupants
- 2
- Unladen weight
- 7,400 kg
- Power source
- Electric
- Drive
- 2WD
- Tyres
- Non-marking
- Intended use
- Indoor
- Up-and-over height
- 7.24 m
- Jib length
- 1.52 m
- Drive speed (stowed position)
- 4.8 km/h
- Drive speed (platform raised)
- 1.0 km/h
- Turning radius (inside / outside)
- 1.8 m / 4.27 m
- Tyre contact pressure
- 689 kPa
- Floor pressure (tyres)
- 15.08 kPa
- Vibration (platform)
- 2.5 m/s²
- Hydraulic tank capacity
- 30.3 L

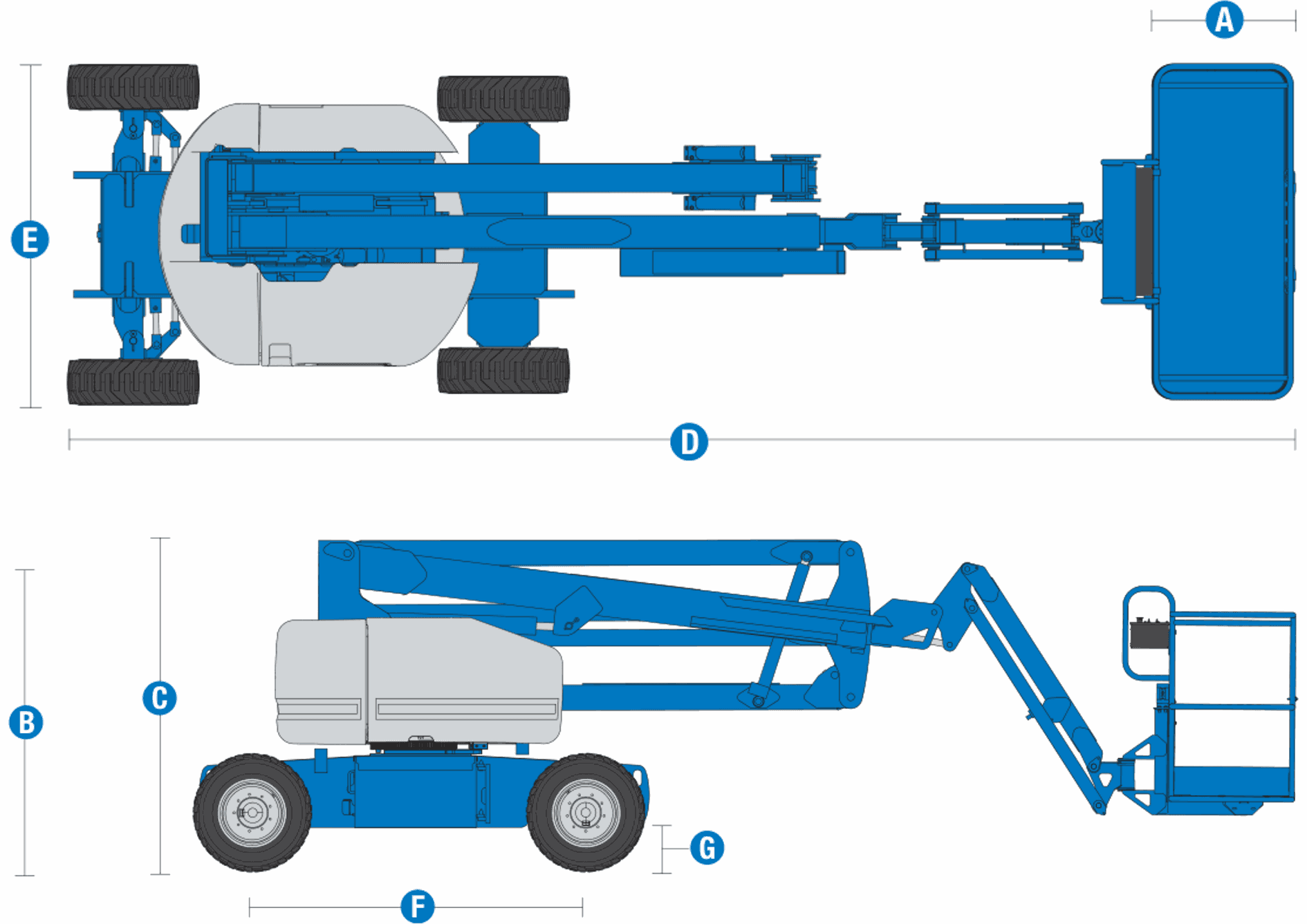

What are the dimensions of the Genie Z-45/25J DC?
- APlatform length
- 0.76 m
- BPlatform width
- 1.83 m
- CHeight (stowed position)
- 2.00 m
- DLength (stowed position)
- 6.83 m
- EMachine width
- 1.79 m
- FWheelbase
- 2.03 m
- GGround clearance under chassis
- 0.24 m
What does renting the Genie Z-45/25J DC include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
What is the Genie Z-45/25J DC used for?
The Genie Z-45/25J DC is a fully electric aerial work platform with an articulating boom and an additional 1.52 m jib. A platform height of 13.94 m and an up-and-over clearance of 7.24 m let it reach over production machinery, racking or pipework and position the basket precisely at the ceiling. The 0.76 × 1.83 m platform is designed for 2 people with tools.
The machine is designed for indoor use. Stowed, it measures 6.83 m in length, 1.79 m in width and 2.00 m in height, and its unladen weight is 7,400 kg. Occupied floor pressure is 15.08 kPa and tyre contact pressure is 689 kPa; these figures are worth checking against the load capacity of the floor slab or floor. A turning radius of 1.8 m (inside) and 4.27 m (outside), together with non-marking tyres, makes manoeuvring in halls easier.

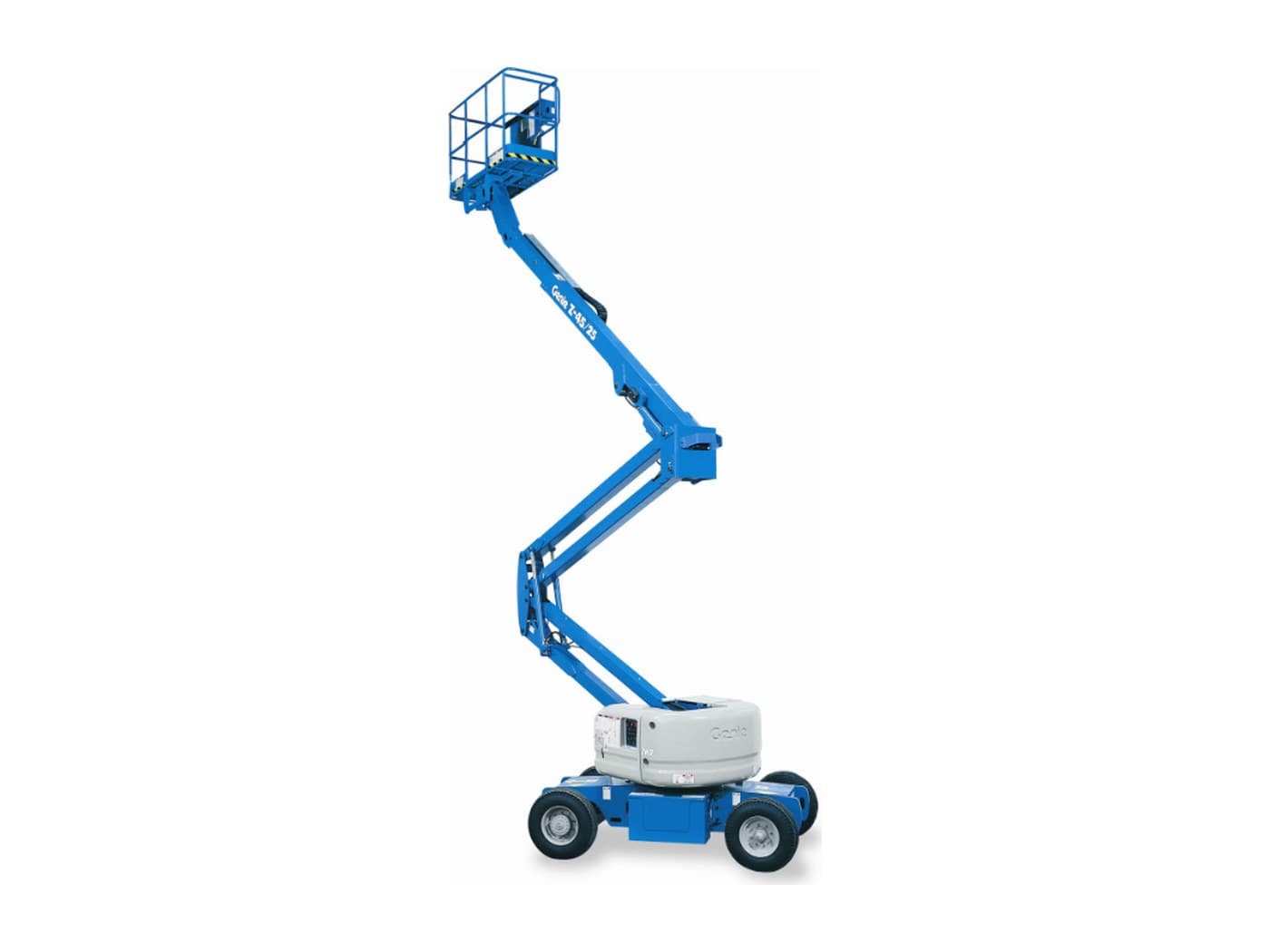

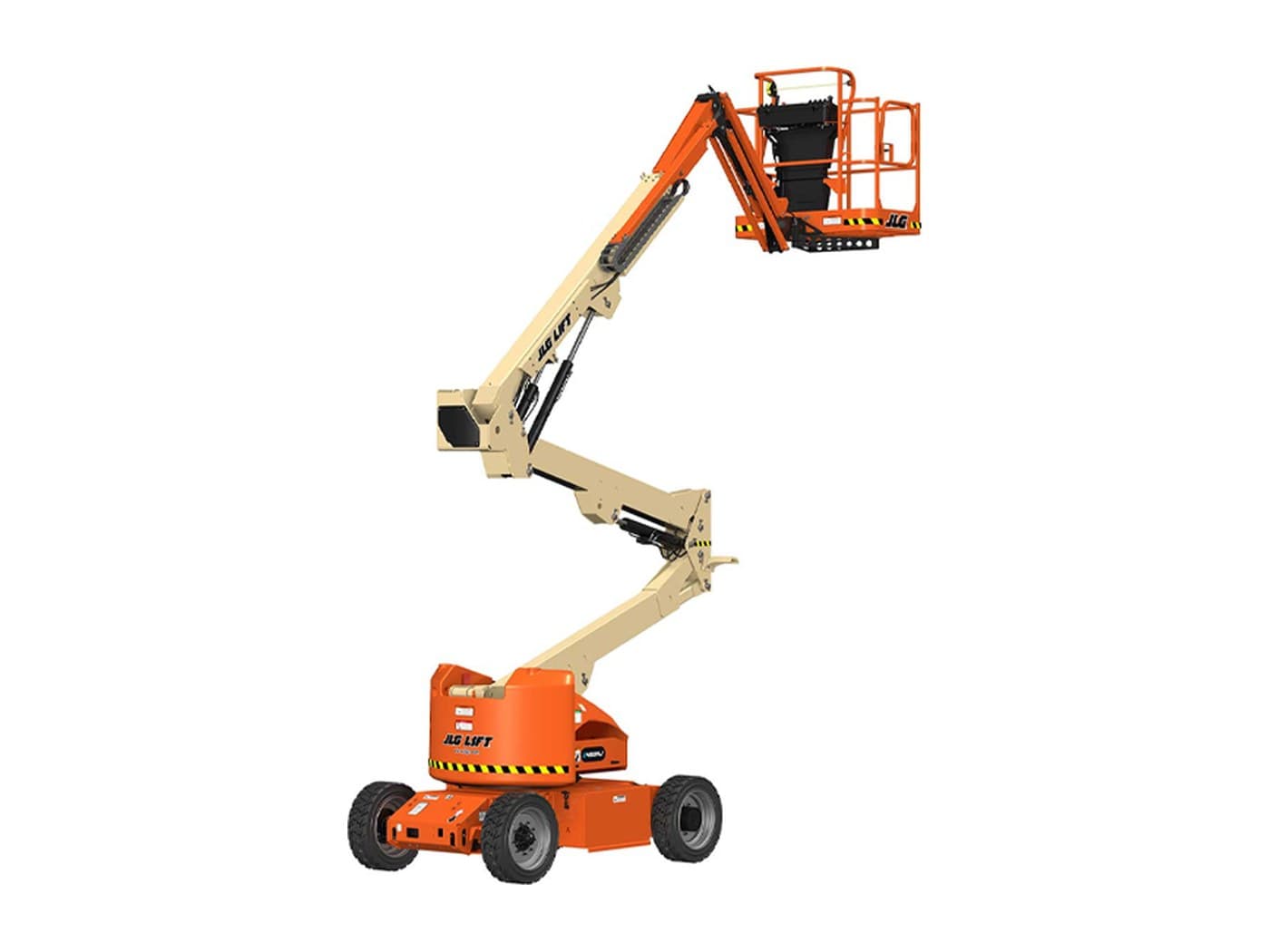

Zero turntable tail swing means that when the turret rotates, the counterweight does not extend beyond the chassis footprint, which matters in narrow aisles and when working right next to a wall. Within the 15-metre class, the Z-45/25J DC offers slightly greater working height and outreach than the JLG E450AJ, but it is heavier. If the site has no charging facilities, the Bi-Energy version will be a better choice.
- Work at hall ceilings
- Installations above production lines
- Work right next to walls
- Installing sprinklers and ducting
- Maintenance of overhead cranes and structures
