Haulotte · Electric articulating boom lift
Haulotte HA12 CJ+
Electric articulating boom lift rental · working height 11.68 m · capacity 230 kg

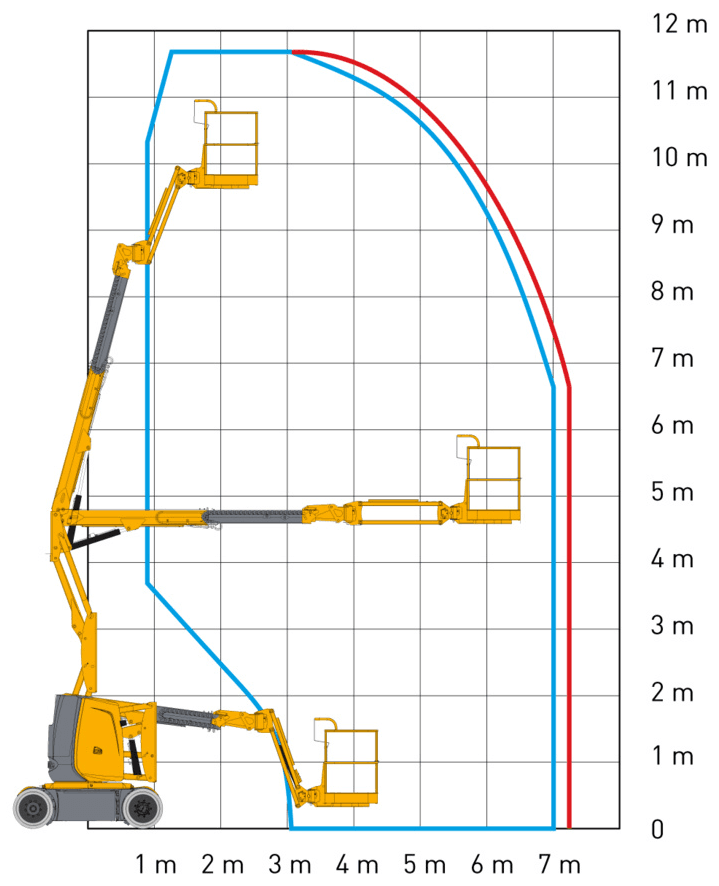

- Working height
- 11.68m
- Capacity
- 230kg
- Horizontal outreach
- 7.22m
- Width
- 1.2m
- Weight
- 7,110kg
Renting the Haulotte HA12 CJ+ electric articulating boom lift gives you 11.68 m of working height and 7.22 m of horizontal outreach with a capacity of 230 kg, a versatile cherry picker for work in industrial buildings and outdoors, including over obstacles. It stands out for a jib that swings through 132.2° vertically and 180° horizontally, and for zero tail swing. RK Rental delivers it to Bydgoszcz, Toruń, Poznań and anywhere in Poland.
Haulotte
Rental
Haulotte HA12 CJ+: from PLN 200 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Prefer to buy? Haulotte HA12 CJ+, newBuy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Haulotte HA12 CJ+?
- Working height
- 11.68 m
- Platform height
- 9.68 m
- Capacity
- 230 kg
- Horizontal outreach
- 7.22 m
- Platform occupants
- 2
- Unladen weight
- 7,110 kg
- Power source
- Electric
- Drive
- 2WD
- Tyres
- Non-marking
- Intended use
- Indoor and outdoor
- Maximum articulation height
- 4.74 m
- Jib vertical articulation angle
- 132.2° (+63.5/-68.7)
- Jib horizontal rotation angle
- 180° (-90/+90)
- Platform rotation angle
- 180° (-90/+90)
- Turntable rotation angle
- 355 °
- Permissible tilt angle
- 3 °
- Drive speed
- 0.68 - 6 km/h
- Outdoor use up to a maximum wind speed of
- 45 km/h
- Maximum gradeability
- 25%
- Outside turning radius
- 3.65 m

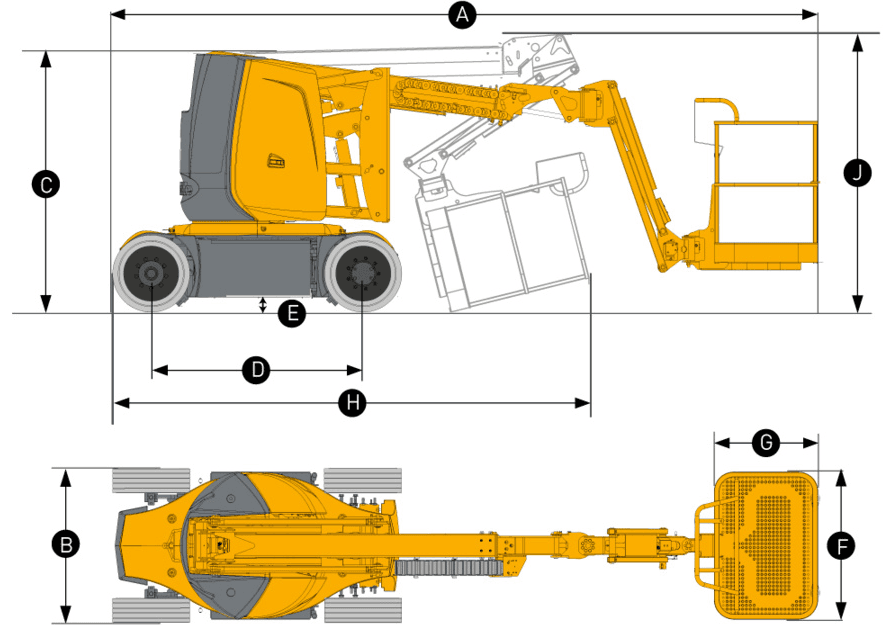

What are the dimensions of the Haulotte HA12 CJ+?
- AOverall length
- 5.64 m
- BWidth
- 1.2 m
- CHeight
- 1.99 m
- DWheelbase
- 1.65 m
- EGround clearance
- 10.7 cm
- FPlatform width
- 0.8 m
- GPlatform length
- 1.14 m
- HTransport length
- 4.2 m
- JTransport height
- 2.6 m
What is the Haulotte HA12 CJ+ used for?
The Haulotte HA12 CJ+ is an electric aerial work platform with a highly agile jib: 132.2° of vertical articulation, 180° of horizontal swing and 180° basket rotation let you approach the work point precisely. The articulation point rises to 4.74 m, so the basket passes over machinery, racking or installations. It is a good choice for lighting installation, installation work below ceilings, work on steel structures and façade maintenance on the courtyard side.
The machine is approved for indoor and outdoor use in wind speeds up to 45 km/h, climbs gradients of up to 25%, and the permitted tilt is 3°. Its width of 1.2 m and height of 1.99 m make it easier to pass through gates, and non-marking tyres protect floors. A weight of 7,110 kg and ground clearance of 10.7 cm mean the ground must be hard and have a verified load-bearing capacity. Power comes from a 48 V battery with a capacity of 320 Ah.
Among 12-metre electric articulating booms, the HA12 CJ+ has the greatest horizontal outreach in our catalogue: 7.22 m against 6.6 m on the Haulotte HA12 IP and 5.57 m on the Genie Z-33/18. The price for this is a higher weight, so for floor slabs and mezzanines it is worth considering a lighter machine. The 1.14 × 0.8 m basket holds 2 people, and the 355° turret rotation and zero tail swing make work close to walls easier.
- Industrial building lighting installation
- Installations below ceilings
- Work on steel structures
- Façade maintenance
- Work above production lines
- Installing advertising and signage
What does renting the Haulotte HA12 CJ+ include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
