Genie · Electric articulating boom lift
Genie Z-34/22N
Electric articulating boom lift rental · working height 12.52 m · capacity 227 kg
- Working height
- 12.52m
- Capacity
- 227kg
- Horizontal outreach
- 6.78m
- Width
- 1.47m
- Weight
- 5,178kg
Renting the Genie Z-34/22N electric articulating boom lift gives you access to a working height of 12.52 m, horizontal outreach of 6.78 m and a capacity of 227 kg with a width of 1.47 m, a compact cherry picker for installation and maintenance work in industrial buildings, warehouses and atriums. What sets it apart in its class is a 1.22 m jib, zero turntable tail swing and approval for both indoor and outdoor use. RK Rental delivers it to Bydgoszcz, Toruń, Poznań and anywhere in Poland.
Genie
Rental
Genie Z-34/22N: from PLN 200 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Prefer to buy? Genie Z-34/22N, newBuy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Genie Z-34/22N?
- Working height
- 12.52 m
- Platform height
- 10.52 m
- Capacity
- 227 kg
- Horizontal outreach
- 6.78 m
- Platform occupants
- 2
- Unladen weight
- 5,178 kg
- Power source
- Electric
- Drive
- 2WD
- Tyres
- Non-marking
- Intended use
- Indoor and outdoor
- Up-and-over height
- 4.65 m
- Jib length
- 1.22 m
- Drive speed (stowed position)
- 6.4 km/h
- Drive speed (platform raised)
- 1.1 km/h
- Tyre contact pressure
- 710 kPa
- Floor pressure (tyres)
- 14.75 kPa
- Vibration (platform)
- 2.5 m/s²
- Hydraulic tank capacity
- 15.1 L

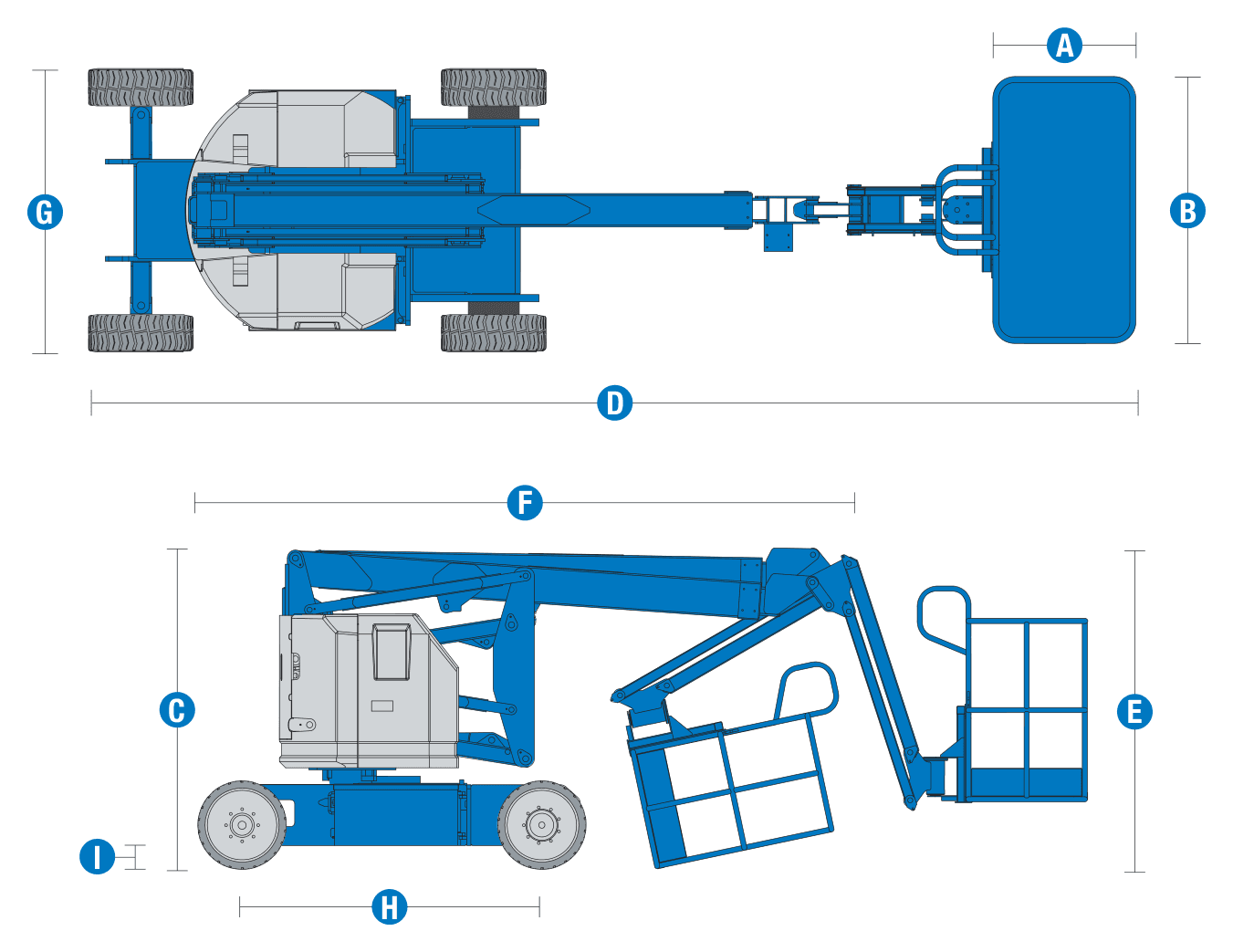

What are the dimensions of the Genie Z-34/22N?
- APlatform length
- 0.76 m
- BPlatform width
- 1.42 m
- CHeight (stowed position)
- 2.00 m
- DLength (stowed position)
- 5.72 m
- EStorage height
- 2.26 m
- FStorage length
- 4.19 m
- GMachine width
- 1.47 m
- HWheelbase
- 1.88 m
- IGround clearance under chassis
- 0.14 m
What is the Genie Z-34/22N used for?
The Genie Z-34/22N is a compact aerial work platform with an articulating boom that lets you get around an obstacle and approach the work point from the side; the up-and-over clearance is 4.65 m. The machine is well suited to installation work below ceilings, lighting replacement, finishing work and racking maintenance. The 1.42 × 0.76 m platform is designed for 2 people, and the 1.22 m jib makes it easier to position the basket precisely between beams and ducts.
A width of 1.47 m, a stowed height of 2.00 m and a length of 5.72 m determine the minimum gate opening through which the cherry picker can enter a building. The unladen weight is 5,178 kg and the tyre ground pressure is 710 kPa, so it is worth confirming the load-bearing capacity of a floor slab, ramp or mezzanine before driving onto it. Zero tail swing lets you rotate the upper structure next to a wall without the risk of striking it, and non-marking tyres protect resin and industrial floors.
When choosing a MEWP, bear in mind that the Z-34/22N is lighter and shorter than larger electric articulating booms, which makes manoeuvring easier in tight industrial buildings and service corridors. In the stowed position it travels at 6.4 km/h, and with the platform raised at 1.1 km/h, so it can move safely to the next work point. 2WD drive and 0.14 m of ground clearance point to level, hard surfaces such as floors, block paving and asphalt.
- Industrial building lighting installation
- Electrical installations below ceilings
- Warehouse racking maintenance
- Work above production lines
- Finishing work in atriums and galleries
- Work right next to walls
What does renting the Genie Z-34/22N include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
