Manitou · Electric articulating boom lift
Manitou 120 AETJ-C
Electric articulating boom lift rental · working height 11.95 m · capacity 200 kg
- Working height
- 11.95m
- Capacity
- 200kg
- Horizontal outreach
- 7m
- Width
- 1.2m
- Weight
- 6,660kg
Renting the Manitou 120 AETJ-C electric articulating boom lift gives you 11.95 m of working height, 7 m of horizontal outreach and 200 kg capacity with a width of 1.2 m, an aerial work platform for zero-emission work in industrial buildings, warehouses and non-residential buildings. It stands out for long side reach on a compact chassis 1.99 m high and a wide 0.92 × 1.2 m basket. RK Rental delivers it to Bydgoszcz, Toruń, Poznań and anywhere in Poland.
Manitou
Rental
Manitou 120 AETJ-C: from PLN 200 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Buy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Manitou 120 AETJ-C?
- Working height
- 11.95 m
- Platform height
- 9.95 m
- Capacity
- 200 kg
- Horizontal outreach
- 7 m
- Unladen weight
- 6,660 kg
- Power source
- Electric
- Drive
- 2WD
- Tyres
- Non-marking
- Intended use
- Indoor
- Platform entry height
- 0.40 m
- Outreach over obstacle (overhang)
- 6.40 m
- Articulation height
- 4.77 m
- Platform occupants (indoor / outdoor)
- 2 / 2
- Turntable rotation
- 355°
- Platform rotation (right / left)
- 66° / 59°
- Jib vertical articulation (up / down)
- +70° / −70°
- Jib horizontal rotation (left / right, 3D option)
- 70° / 70°
- Jib length
- 1.26 m
- Ground clearance with pothole guards deployed
- 0.02 m
- Turning radius (inside / outside)
- 1.55 m / 3.34 m

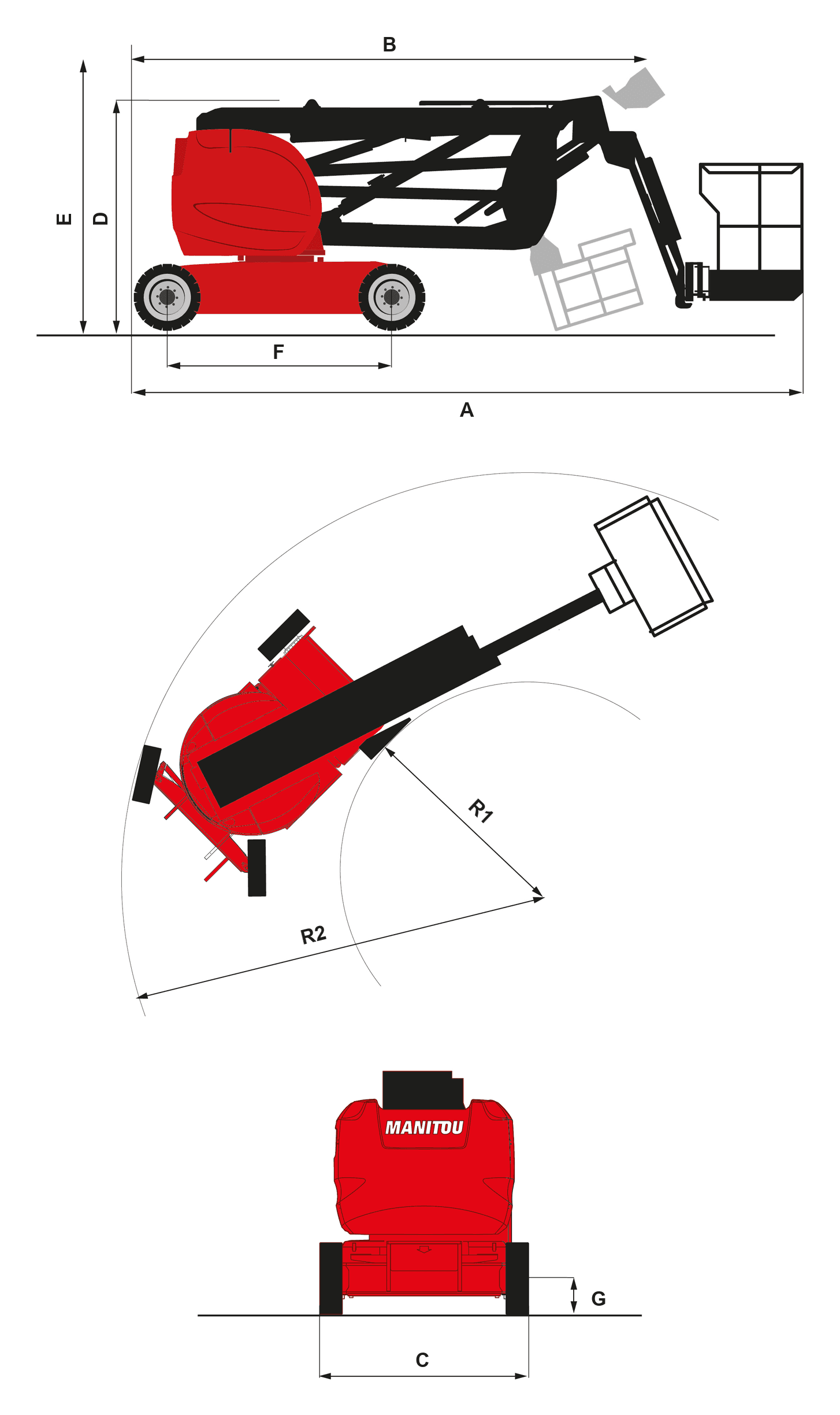

What are the dimensions of the Manitou 120 AETJ-C?
- AOverall length
- 5.48 m
- BOverall length (platform folded)
- 3.74 m
- COverall width
- 1.20 m
- DOverall height (transport)
- 1.99 m
- EOverall height (platform folded)
- 2.16 m
- FWheelbase
- 1.65 m
- GGround clearance (centre of wheelbase)
- 0.10 m
- R1Inside turning radius
- 1.55 m
- R2Outside turning radius
- 3.34 m
What does renting the Manitou 120 AETJ-C include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
What is the Manitou 120 AETJ-C used for?
The Manitou 120 AETJ-C is a compact articulating cherry picker for use inside buildings. A platform height of 9.95 m and 7 m of horizontal outreach let you reach installations located above the production floor, stands or racking without placing the chassis directly beneath the work point. The 0.92 × 1.2 m basket comfortably holds an operator with tools when installing lighting, cable trays, ventilation and sprinkler systems or painting ceilings.
Electric power produces no exhaust fumes and runs quietly, and non-marking tyres protect floors, so the machine is suitable for shops, office buildings and production plants that remain in operation. In the stowed position it is 5.48 m long, 1.2 m wide and 1.99 m high, which lets it pass through typical gates and wider passages. With a weight of 6,660 kg, the load-bearing capacity of the structure must be confirmed before driving onto a mezzanine or floor slab.

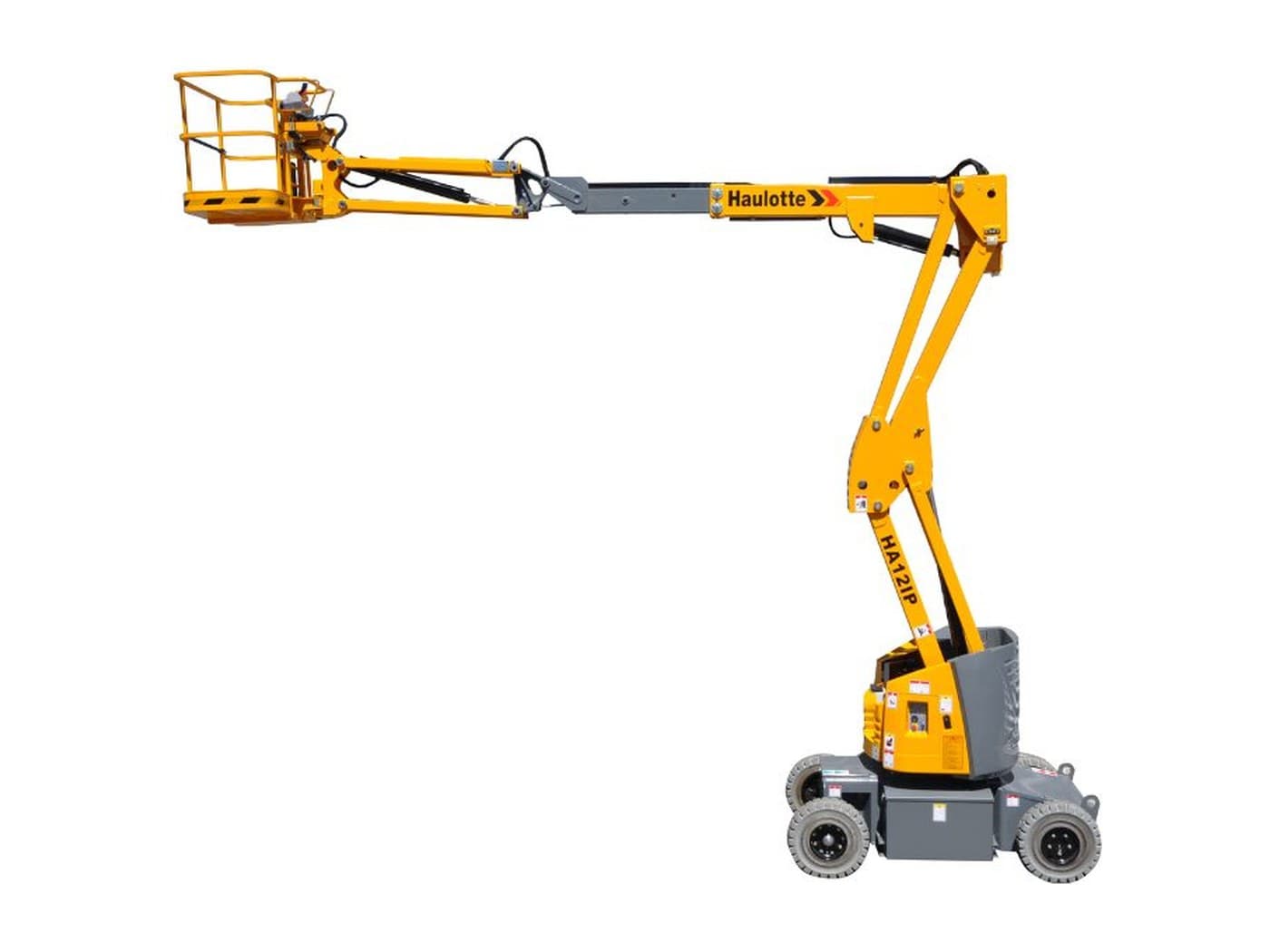

Compared with other 12-metre electric articulating booms in our catalogue, the Manitou 120 AETJ-C combines a long horizontal outreach of 7 m with a narrow width of 1.2 m; by comparison, the Haulotte HA12 IP has 6.6 m of outreach with a width of 1.35 m. The 200 kg capacity is enough for an operator with tools, but for two-person work with materials it is worth calculating the load or choosing a model with a higher capacity.
- Electrical installations in industrial buildings
- Ventilation and air conditioning installation
- Ceiling painting
- Lighting replacement
- Work in retail premises that remain open
