Genie · Electric articulating boom lift
Genie Z-33/18
Electric articulating boom lift rental · working height 12 m · capacity 200 kg
- Working height
- 12m
- Capacity
- 200kg
- Horizontal outreach
- 5.57m
- Width
- 1.5m
- Weight
- 3,665kg
Renting the Genie Z-33/18 electric articulating boom lift gives you 12 m of working height, 5.57 m of horizontal outreach and 200 kg capacity at a weight of just 3,665 kg, the choice where the load-bearing capacity of a floor, floor slab or mezzanine matters. It stands out for a short 4.17 m chassis that makes manoeuvring in tight industrial buildings easier. We deliver this cherry picker with RK Rental transport to Bydgoszcz, Toruń, Poznań and anywhere in Poland.
Genie
Rental
Genie Z-33/18: from PLN 200 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Buy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Genie Z-33/18?
- Working height
- 12 m
- Platform height
- 10 m
- Capacity
- 200 kg
- Horizontal outreach
- 5.57 m
- Unladen weight
- 3,665 kg
- Power source
- Electric
- Drive
- 2WD
- Tyres
- Non-marking
- Intended use
- Indoor
- Platform occupants
- 2
- Horizontal outreach
- 5.57 m
- Up-and-over height
- 4.28 m
- Platform levelling
- automatic (self-levelling)
- Turntable rotation
- 400° (non-continuous)
- Turning radius (inside / outside)
- 1.90 m / 3.07 m
- Drive speed (machine stowed)
- 5.2 km/h
- Drive speed (boom raised)
- 0.86 km/h (boom raised, not extended) / 0.23 km/h (extended)
- Gradeability
- 30%
- Permissible lateral slope (driving)
- 25%
- Tilt sensor activation
- 2.5°–4.5° (front–rear) / 4.5° (side-to-side)

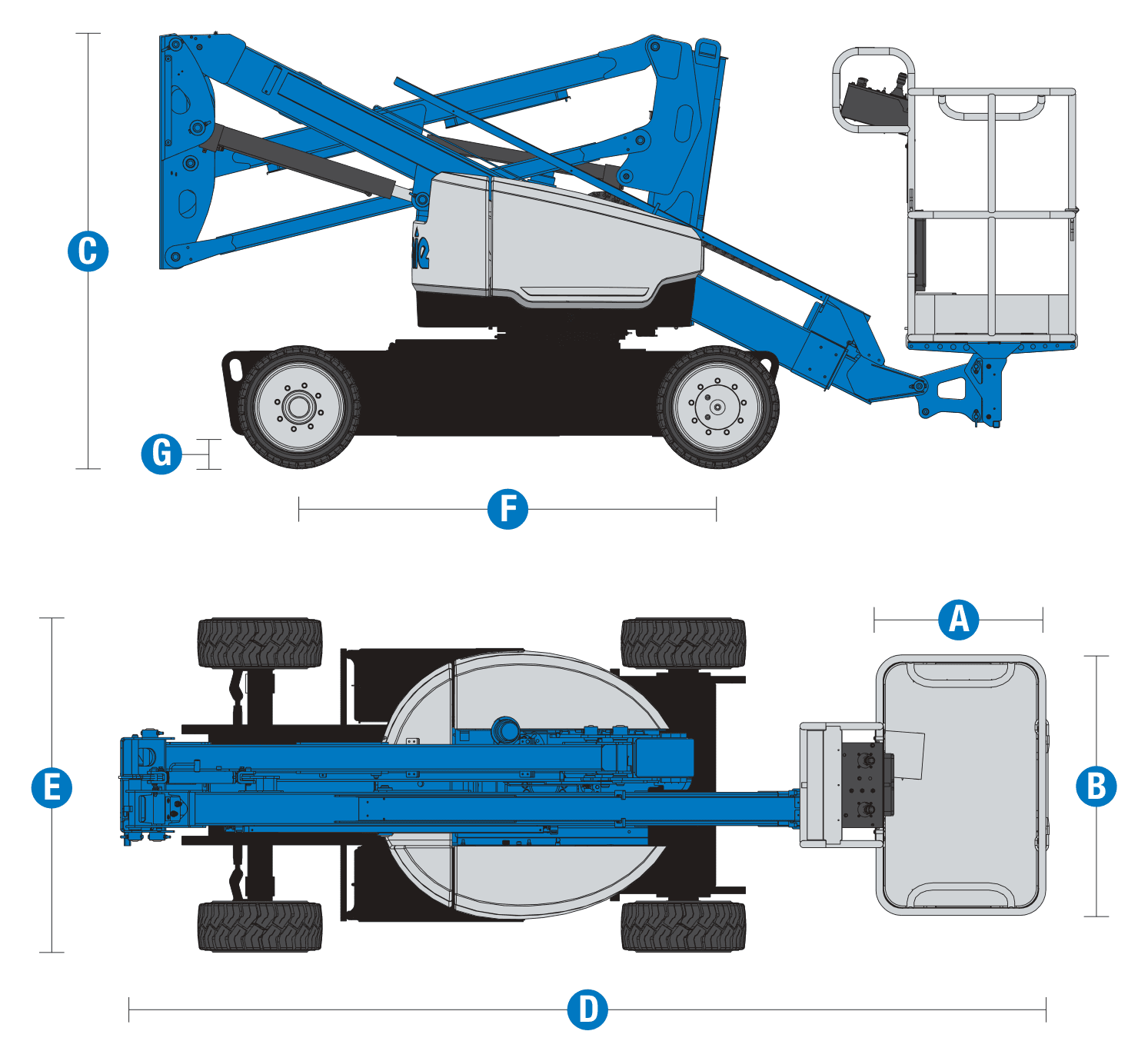

What are the dimensions of the Genie Z-33/18?
- APlatform length
- 0.76 m
- BPlatform width
- 1.17 m
- CStowed height (transport)
- 1.98 m
- DStowed length (transport)
- 4.17 m
- EOverall width
- 1.50 m
- FWheelbase
- 1.90 m
- GGround clearance (centre)
- 0.15 m
What does renting the Genie Z-33/18 include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
What is the Genie Z-33/18 used for?
The Genie Z-33/18 is a lightweight 12 m class aerial work platform. Its unladen weight of 3,665 kg is nearly half that of the Haulotte HA12 CJ+ (7,110 kg), which opens up access to sites that heavier articulating booms cannot enter: mezzanines, storeys with limited floor slab load capacity and floors in older buildings. Typical tasks are electrical installations, lighting, ventilation and maintenance work below the ceiling.
The machine is for indoor use: electric power produces no exhaust fumes, and non-marking tyres protect floors. In the stowed position it is 4.17 m long, 1.5 m wide and 1.98 m high. The short chassis makes it easier to turn just inside a gate and to manoeuvre between workstations, but its 1.5 m width rules out passing through ordinary doors, so a gate or a wide service passage is needed.
When choosing a machine, remember that low weight comes with shorter side reach: 5.57 m against 7 m on the Manitou 120 AETJ-C or 6.6 m on the Haulotte HA12 IP. The 0.76 × 1.17 m basket and 200 kg capacity are designed for an operator with tools. If ground load-bearing capacity and manoeuvrability are the priority, the Z-33/18 will be a better fit than heavier cherry pickers of similar height.
- Work on mezzanines
- Installations in older buildings
- Lighting maintenance below ceilings
- Ventilation installation in industrial buildings
- Work in tight industrial buildings
