JLG · Electric articulating boom lift

JLG M400AJPN

Electric articulating boom lift rental · working height 14.19 m · capacity 230 kg · 4×4 drive

Working height
14.19m
Capacity
230kg
Horizontal outreach
6.83m
Width
1.5m
Weight
6,863kg

Renting the JLG M400AJPN hybrid articulating boom lift gives you a working height of 14.19 m, horizontal outreach of 6.83 m and a capacity of 230 kg, a MEWP for long-running installation work inside industrial buildings and large-volume buildings. It stands out for its combination of Bi-Energy (hybrid) power and 4WD, which is not standard among narrow articulating booms 1.5 m wide. RK Rental arranges delivery of the machine to Bydgoszcz, Toruń, Poznań and anywhere in Poland.

JLG M400AJPN, electric articulating boom lift for rentJLG
Working range
JLG M400AJPN: working range chart (reach and capacity)

Rental

JLG M400AJPN: from PLN 220 + VAT per day

The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.

See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price
wynajem@fajnepodnosniki.pl
4.9 on Google
Buy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.
Technical specifications

What are the specifications of the JLG M400AJPN?

Working height
14.19 m
Platform height
12.19 m
Capacity
230 kg
Horizontal outreach
6.83 m
Unladen weight
6,863 kg
Power source
Hybrid (Bi-Energy)
Drive
4WD
Tyres
Non-marking
Intended use
Indoor and outdoor
Horizontal outreach
6.83 m
Up-and-over height
6.55 m
Turntable rotation
360° (non-continuous)
Platform rotation (hydraulic)
180°
Jib length
1.24 m
Jib vertical articulation
144° (+84° / −60°)
JibPLUS horizontal rotation
180°
Inside turning radius
0.86 m
Outside turning radius
3.15 m
Drive speed
4.8 km/h
Gradeability
30%
Dimensional drawing
JLG M400AJPN: dimensional drawing with labelled dimensions
Machine dimensions

What are the dimensions of the JLG M400AJPN?

APlatform dimensions (W × L)
0.76 × 1.22 m
BOverall width
1.50 m
CTail swing (in working position)
0.10 m
DStowed height (transport)
1.97 m
EStowed length (transport)
6.71 m
FWheelbase
2.01 m
GGround clearance
0.13 m
Rental at RK Rental

What does renting the JLG M400AJPN include?

  • We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
  • Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
  • Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
About the machine

What is the JLG M400AJPN used for?

The JLG M400AJPN is an articulating cherry picker with a 0.76 × 1.22 m platform, designed for indoor use: in production halls, logistics centres, retail premises and buildings at the fit-out stage. A platform height of 12.19 m and horizontal outreach of 6.83 m let you service installations suspended below the ceiling, ventilation ducts and lighting without erecting scaffolding. Non-marking tyres leave no marks on resin and concrete floors.

Bi-Energy hybrid power combines battery operation with a combustion engine unit that can recharge the batteries, so the machine needs to stand idle at a charger less often. 4WD improves traction on dusty floors, driveways and ramps. When planning access, take into account the transport dimensions of 6.71 × 1.5 × 1.97 m and the unladen weight of 6,863 kg; this figure determines whether a floor slab, ramp or raised access floor can carry the machine.

When choosing an aerial work platform in this class, it is worth comparing not only height but also the power source. Purely electric articulating booms have to be charged from the mains regularly, whereas the M400AJPN gives greater independence on sites without easy access to sockets. If the lowest weight or the shortest chassis is the priority, a smaller articulating model with a simpler power system may be a more sensible choice.

  • HVAC installations below ceilings
  • Lighting installation in industrial buildings
  • Work in logistics centres
  • Fit-out of large-volume buildings
  • Sites without access to power
RK Rental · fajnepodnosniki.pl · Brzoza near Bydgoszcz · wynajem@fajnepodnosniki.plTechnical data according to the manufacturer, indicative values · updated: · RK-W/JLG-M400AJPN

14 m · similar machines

What can replace the JLG M400AJPN? Machines with similar specifications

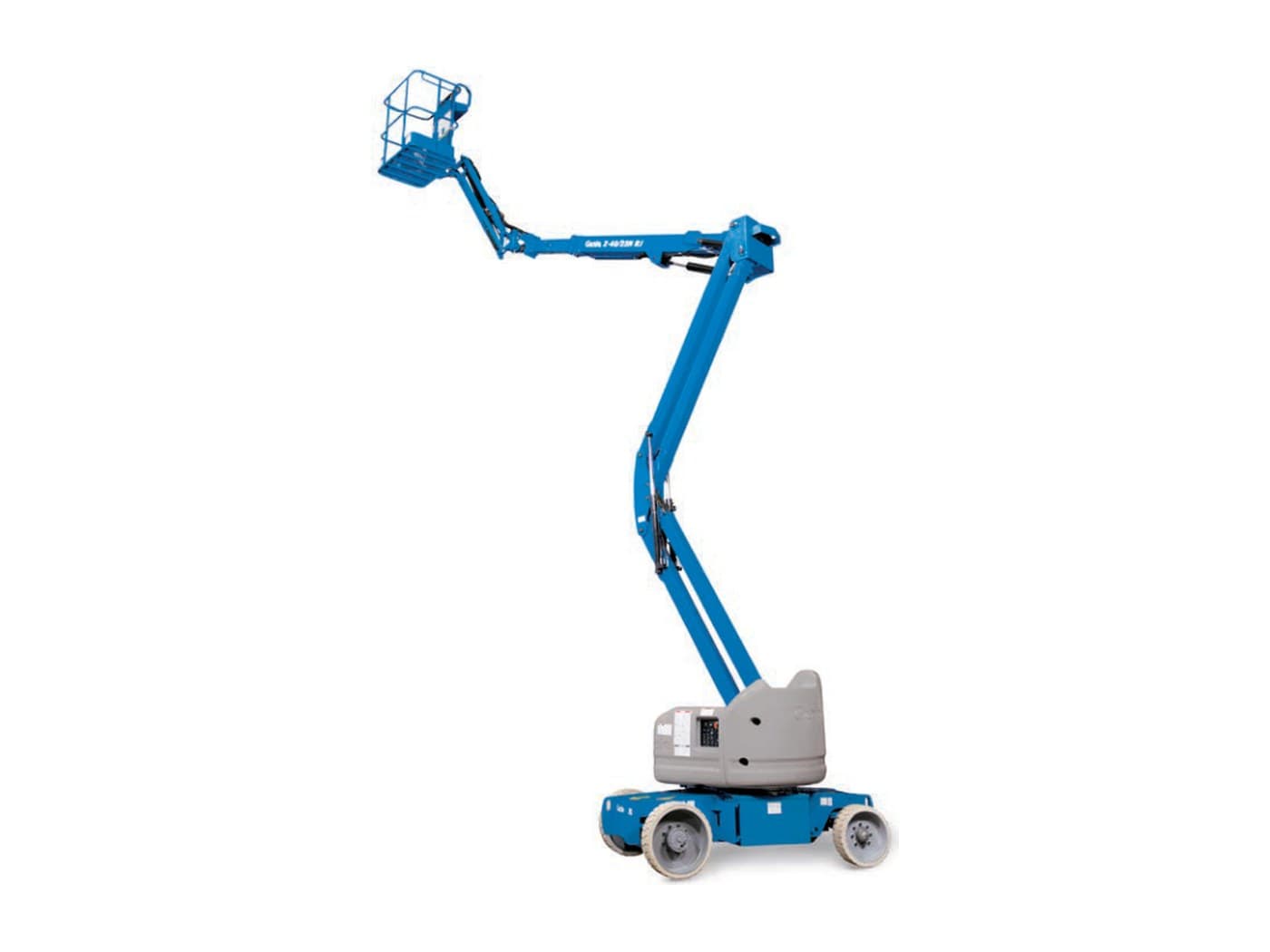

Genie Z-40/23N RJ for rent

Genie

Genie Z-40/23N RJ

Height
14.32 m
Capacity
227 kg
Weight
6,940 kg
Data sheet
Manitou 150 AET2 for rent

Manitou

Manitou 150 AET2

Height
14.85 m
Capacity
230 kg
Weight
7,085 kg
Data sheet
Haulotte HA15 IP for rent

Haulotte

Haulotte HA15 IP

Height
14.87 m
Capacity
230 kg
Weight
7,230 kg
Data sheet
Manitou 150 AETJ-C for rent

Manitou

Manitou 150 AETJ-C

Height
15 m
Capacity
200 kg
Weight
6,700 kg
Data sheet
Comparison of the JLG M400AJPN with equivalent machines
ModelWorking heightCapacityOutreachWidthWeightPower source
JLG M400AJPN · this sheet14.19 m230 kg6.83 m1.5 m6,863 kgHybrid (Bi-Energy)
Genie Z-40/23N RJ14.32 m227 kg6.91 m1.5 m6,940 kgElectric
Manitou 150 AET214.85 m230 kg8.86 m1.5 m7,085 kgElectric
Haulotte HA15 IP14.87 m230 kg8.65 m1.52 m7,230 kgElectric
Manitou 150 AETJ-C15 m200 kg7.6 m1.5 m6,700 kgElectric

JLG M400AJPN: frequently asked questions

How does Bi-Energy power work on the JLG M400AJPN?

The machine combines battery power with a combustion engine unit that recharges the batteries. Inside a building you work on battery power, and recharging with the engine is best done in a well-ventilated area; this reduces downtime at the charger.

What should I check before driving the JLG M400AJPN into a building?

In the transport position the machine is 1.5 m wide, 1.97 m high and 6.71 m long, so the gate must be larger than these dimensions, with room to manoeuvre. The unladen weight of 6,863 kg requires confirmation of the load-bearing capacity of the floor slab, ramp or goods lift.

Why does the JLG M400AJPN have 4WD?

Four-wheel drive improves traction on dusty or damp floors, on ramps and when crossing a hard-surfaced yard. Among articulating booms 1.5 m wide, this is a less common feature.

What is the working height of the JLG M400AJPN?

The working height of the JLG M400AJPN is 14.19 m. Working height is the platform height plus the reach of the person working on it (2 m is assumed), so a machine is chosen for the work location, not for your own height.

What is the capacity of the JLG M400AJPN?

The capacity of the JLG M400AJPN is 230 kg. The figure includes the operator, tools and material taken onto the platform: everything that goes up counts towards the capacity.

What is the horizontal outreach of the JLG M400AJPN?

The horizontal outreach of the JLG M400AJPN is 6.83 m. This is how far the machine reaches sideways from its chassis, that is, over an obstacle such as a stockpile, ditch, greenery, fence or parked car.

Is the JLG M400AJPN suitable for use inside a building?

Yes. The JLG M400AJPN has hybrid (bi-energy) drive: in battery mode it works with no exhaust fumes, so it is suitable for halls; run the diesel engine only outdoors or with good ventilation. Before driving into a hall, check the load-bearing capacity of the floor and the width of gates and aisles.

What are the dimensions of the JLG M400AJPN and how much does it weigh?

The JLG M400AJPN measures 6.71×1.5×1.97 m (L × W × H) and weighs 6,863 kg. These figures decide access to the work location: the width of the gate and route, the load-bearing capacity of the floor or ground, and the means of transport.

Do I need a UDT licence to operate the JLG M400AJPN?

Yes. Operating a self-propelled mobile elevating work platform independently requires a UDT qualification certificate (UDT is the Polish Office of Technical Inspection). RK Rental runs its own training courses with an official examination. You can ask about renting with an operator when you request a quote; this is possible when one of our service technicians qualified as an operator is free on that date.

Do you deliver the JLG M400AJPN to the work site?

Yes, we arrange transport and deliver machines across Poland, from our base in Brzoza near Bydgoszcz, most often around Bydgoszcz, Toruń and Poznań. The machine arrives on site after inspection, with a current UDT inspection.

Can I buy the JLG M400AJPN after renting it?

Yes, this is our “Buy the rented machine” scheme. If the JLG M400AJPN works well for you, you can buy the machine you rented, and part of the rental cost can be deducted from the purchase price. We agree the details in the quote.

How much does it cost to rent the JLG M400AJPN?

Renting the JLG M400AJPN (the 15 m working height class) costs from PLN 220 + VAT per day. A day costs PLN 400–500 for a rental of 1–3 days, PLN 350–400 up to 7 days, PLN 250 up to 14 days and PLN 220 over 14 days. Rates are net per day, excluding transport (transport is quoted separately, from PLN 250 net). The lowest rate applies to rentals of more than 14 days. We confirm the final price when you book, because it depends on the model, the rental period and the delivery location.
