JLG · Electric scissor lift

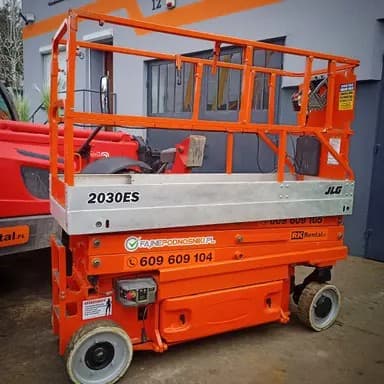

JLG 2030ES
Electric scissor lift rental · working height 8.1 m · capacity 360 kg
- Working height
- 8.1m
- Capacity
- 360kg
- Platform height
- 6.1m
- Width
- 0.76m
- Weight
- 2,065kg
Renting the JLG 2030ES electric scissor lift gives you 8.1 m of working height and 360 kg of capacity with a width of just 0.76 m, making it a scissor lift for work with materials where access is through narrow doors. This combination of capacity and a narrow chassis sets it apart in its class, and the platform with deck extension is 3.2 m long. We deliver this lift from the RK Rental fleet in Bydgoszcz, Toruń, Poznań and anywhere in Poland.
JLG
Rental
JLG 2030ES: from PLN 80 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Buy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the JLG 2030ES?
- Working height
- 8.1 m
- Platform height
- 6.1 m
- Capacity
- 360 kg
- Outdoor capacity (1 person)
- 160 kg
- Capacity on deck extension
- 120 kg
- Unladen weight
- 2,065 kg
- Power source
- Electric
- Maximum drive height
- 6.10 m (drivable at full height)
- Platform occupants (indoor / outdoor)
- 2 / 1
- Permissible wind speed (outdoor use)
- 12.5 m/s
- Transport height (guardrails up)
- 2.20 m
- Turning radius (inside / outside)
- 0 m / 2.06 m
- Drive speed (stowed)
- 4.4 km/h
- Drive speed (raised)
- 0.8 km/h
- Lifting / lowering time
- 30 / 40 s
- Gradeability
- 25%
- Max. ground pressure
- 6.33 kg/cm²
- Batteries
- 4 × 6 V, 220 Ah
What are the dimensions of the JLG 2030ES?
- APlatform height (raised)
- 6.10 m
- BPlatform height (lowered)
- 1.10 m
- CGuardrail height
- 1.10 m
- DStowed height (guardrails folded)
- 1.82 m
- EPlatform dimensions (W × L)
- 0.76 × 2.30 m
- FDeck extension
- 0.90 m
- GOverall width
- 0.76 m
- HOverall length
- 2.30 m
- IWheelbase
- 1.88 m
- JGround clearance
- 0.09 m
What is the JLG 2030ES used for?
The JLG 2030ES is an electric scissor lift for installers and finishing crews who need high capacity but work in buildings with narrow passages. The 0.76 × 2.30 m platform with a 0.90 m deck extension provides space for tools and materials, and the guardrails are 1.10 m high. The machine can drive at the full platform height of 6.10 m at 0.8 km/h.
A width of 0.76 m lets it pass through standard doors, and with the guardrails folded the height drops from 2.20 m to 1.82 m. Bear in mind, however, the unladen weight of 2,065 kg: before driving onto a floor slab or floor with limited load capacity, check the permissible load; the maximum ground pressure is 6.33 kg/cm². A zero inner turning radius makes manoeuvring in tight rooms easier.
Outdoors, this scissor lift can work with one person on the platform in winds of up to 12.5 m/s; indoors there is room for two people. A 3 kW pump motor raises the platform in 30 s, and the four 6 V, 220 Ah batteries are charged by an automatic 20 A charger. Compared with the JLG 1930ES, the 2030ES offers noticeably higher capacity and a longer platform at the same width.
- Installing suspended ceilings
- Installing cable routes
- Installation work with materials
- Refurbishment of office buildings
- Work in hospitals and schools
- Servicing hall lighting
What does renting the JLG 2030ES include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
