Genie GS-1930 service: faults and error codes

The most common faults of the Genie GS-1930 (scissor lift) with the likely cause and the way to diagnose them, and below the Genie error codes with explanations. RK Rental services the Genie GS-1930: repairs, maintenance inspections and preparation for UDT inspections (UDT is the Polish Office of Technical Inspection), parts and service life assessment.

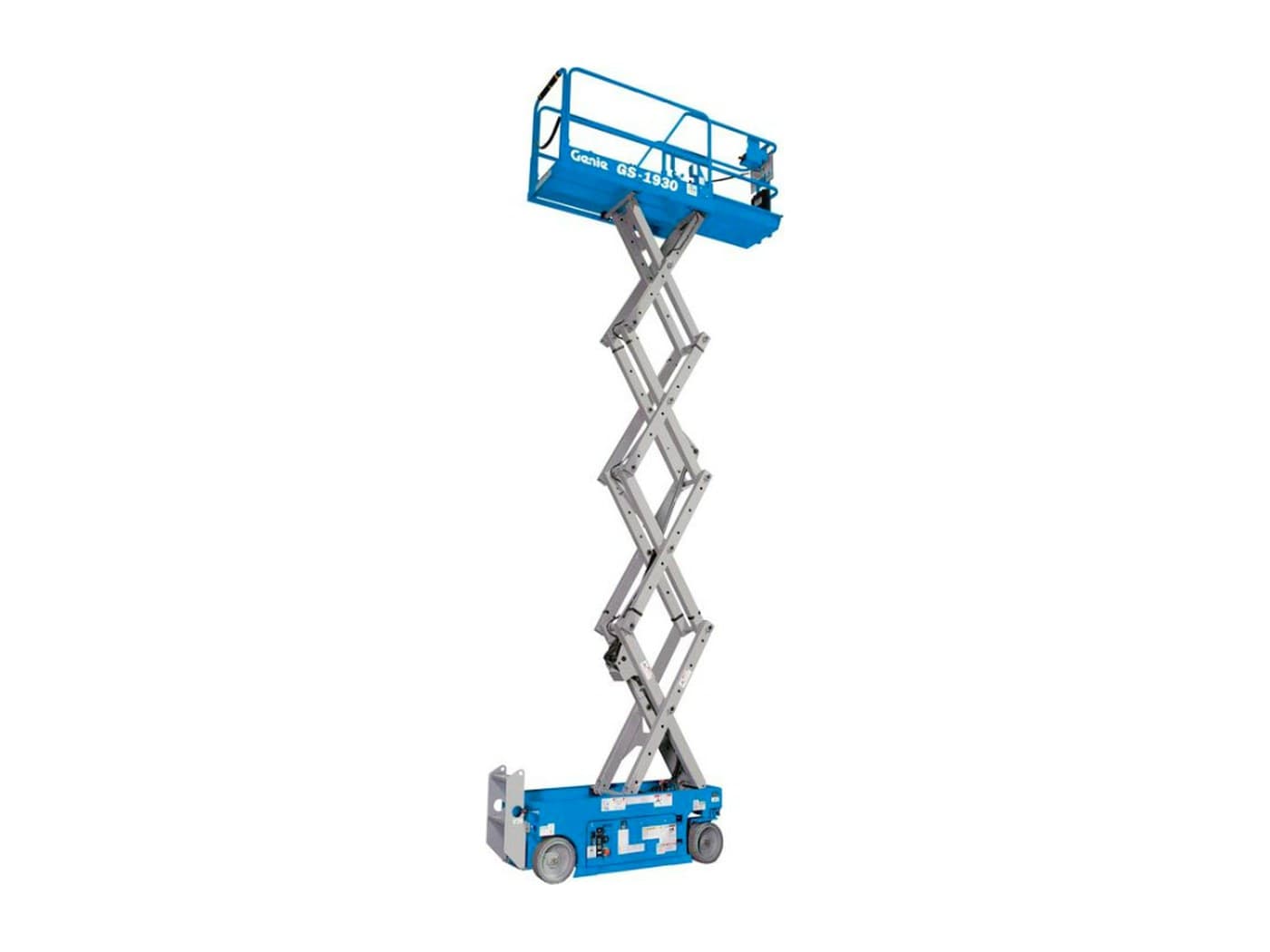

Genie GS-1930: scissor lift

Genie GS-1930: machine data

Type
scissor lift
Working height
7.85 m
Platform capacity
227 kg
Drive
Electric
Error codes in the database
333

GS-1930 machine card →GS-1930 manuals and parts catalogue →Genie parts →

The information below is diagnostic and indicative. Repairs, calibrations and clearing of fault codes are carried out by a qualified service technician, according to the manual for the specific serial number of the machine. A machine with an active fault code must not be used until the cause has been removed.

Genie GS-1930 technical data useful for service

Weight and dimensions decide how the machine is transported to a workshop, while the tyres, battery and drive decide which parts are needed. When you report a service job, please also give the serial number from the rating plate.

Machine weight
1,456 kg
Platform dimensions
1.64 × 0.76 m
Machine dimensions (L × W × H)
1.83×0.76×2.16 m

Most common Genie GS-1930 faults

Platform will not raise or lower

Likely cause
Discharged battery, an active fault code blocking the function, platform overload or a faulty valve or solenoid valve of the pump.
Diagnosis / how to fix it
Check the battery voltage, read the fault code and remove any excess load from the platform.

Machine will not drive

Likely cause
Joystick not in neutral at start-up, an active tilt sensor blocking driving at height, or a controller communication error.
Diagnosis / how to fix it
Set the joystick to neutral, lower the platform, level the machine and read the fault code.

Tilt alarm

Likely cause
Working on uneven ground, or a mis-adjusted or damaged tilt sensor.
Diagnosis / how to fix it
Place the machine on level ground; if the alarm does not clear, a service technician calibrates or replaces the sensor.

Platform overload

Likely cause
Capacity exceeded or a load sensor out of calibration.
Diagnosis / how to fix it
Remove the excess load; if the error remains, the load cell must be calibrated at a service centre.

Weak or short run time on the battery

Likely cause
Sulphated or worn cells, a faulty charger, corroded or loose terminals.
Diagnosis / how to fix it
Measure the cell voltages, check the charger and terminals and replace the batteries if necessary.

Will not extend to full height (pothole protection)

Likely cause
The pothole protection bars have not deployed, or the deployment sensor is damaged.
Diagnosis / how to fix it
Inspect the pothole protection mechanism and its sensors.

No control from the upper control box

Likely cause
Loss of communication between the platform and the chassis: a chafed cable, corroded connectors or a faulty controller.
Diagnosis / how to fix it
Test from the lower control box and check the coiled cable and the connectors.

Soft hydraulics, or the platform slowly descends

Likely cause
Worn cylinder seals, air in the system, contaminated oil or a leaking holding valve.
Diagnosis / how to fix it
Check the oil level and condition and the tightness of the system; repair at a service centre.

Genie GS-1930 error codes: 333 codes explained

Genie uses the on-board GSDS diagnostic system (Genie SmartLink). Codes are divided into DTC (a detected device or circuit fault) and OIC (an unusual operating condition, e.g. overload). On scissor lifts, DTCs are marked with a letter for the system type and a number; on boom lifts (Z and S series) there is also a two-digit flash code (red LED = source, yellow LED = type).

Below you see the code and the original manufacturer's message. Open a code for the likely cause, what you can check yourself and when to call service.

Source: Genie Service and Repair Manual GS-30/32/46/47 (Part No. 1272217GT), section Fault Codes.

All Genie codes of this control system: list and search →
