Genie · Diesel articulating boom lift

Genie Z-45/25J RT

Diesel articulating boom lift rental · working height 15.86 m · capacity 227 kg · 4×4 drive

Working height
15.86m
Capacity
227kg
Horizontal outreach
7.52m
Width
2.29m
Weight
6,515kg

The Genie Z-45/25J RT diesel articulating boom lift, available for rental, provides 15.86 m of working height, 7.52 m of horizontal outreach and 227 kg of capacity, and its up-and-over clearance of 7.14 m makes work over roofs, canopies and installations easier. The model stands out for its 1.52 m jib and zero turntable tail swing, which means the rear of the upper structure does not project beyond the chassis. Delivery covers Bydgoszcz, Toruń, Poznań and the whole of Poland.

Genie Z-45/25J RT, diesel articulating boom lift for rentGenie
Working range

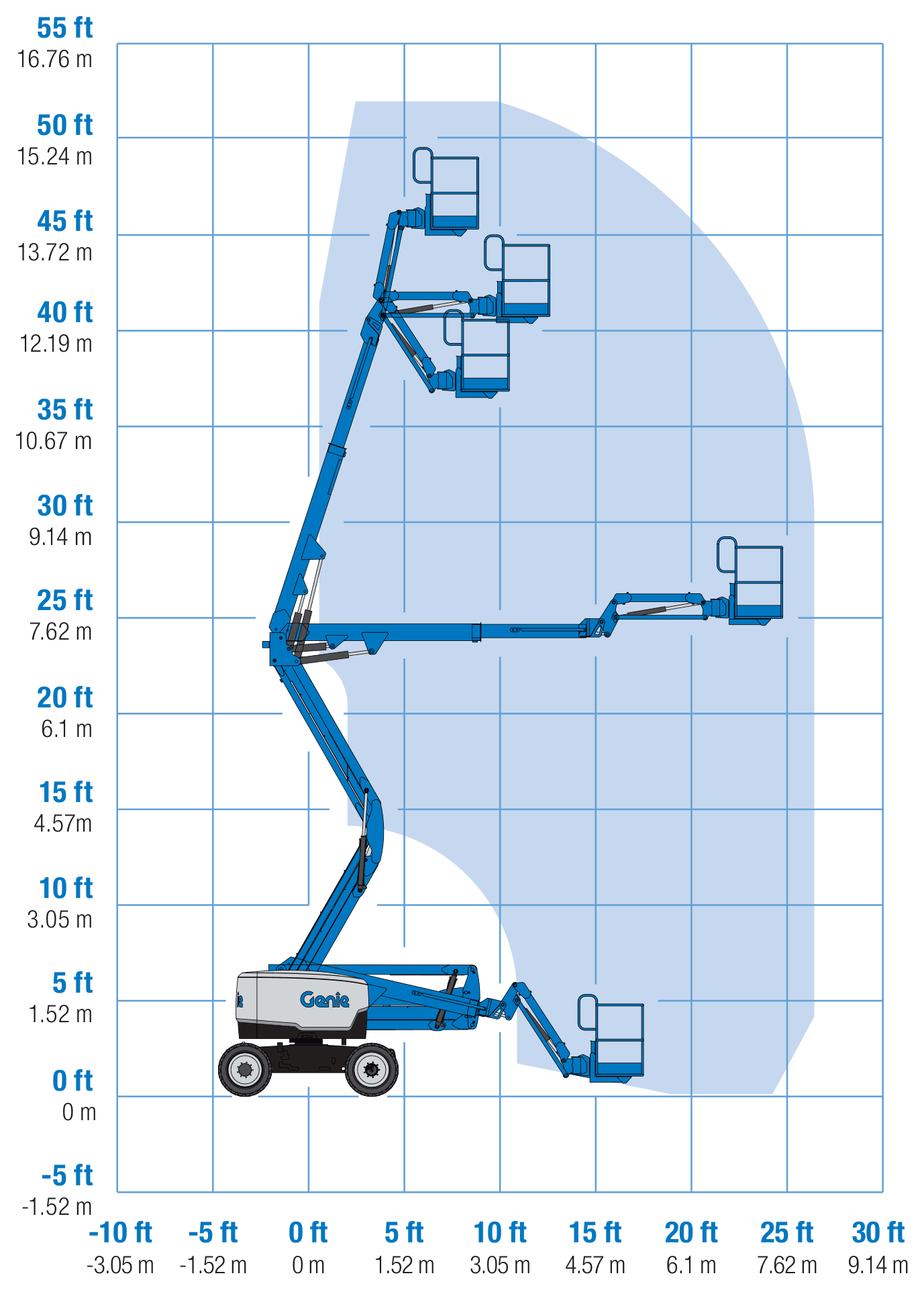

Genie Z-45/25J RT: working range chart (reach and capacity)

Rental

Genie Z-45/25J RT: from PLN 200 + VAT per day

The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.

See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price
wynajem@fajnepodnosniki.pl
4.9 on Google
Prefer to buy? Genie Z-45/25J RT, newBuy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.
Technical specifications

What are the specifications of the Genie Z-45/25J RT?

Working height
15.86 m
Platform height
13.86 m
Capacity
227 kg
Horizontal outreach
7.52 m
Platform occupants
2
Unladen weight
6,515 kg
Power source
Diesel
Engine type
Diesel
Drive
4WD
Tyres
Rough terrain
Intended use
Outdoor
Up-and-over height
7.14 m
Jib length
1.52 m
Drive speed (stowed position)
5 km/h
Drive speed (platform raised)
1.1 km/h
Tyre contact pressure
414 kPa
Floor pressure (tyres)
9.12 kPa
Vibration (platform)
2.5 m/s²
Fuel tank
64 L
Hydraulic tank capacity
83 L
Dimensional drawing
Genie Z-45/25J RT: dimensional drawing with labelled dimensions
Machine dimensions

What are the dimensions of the Genie Z-45/25J RT?

APlatform length
0.76 m
BPlatform width
1.83 m
CHeight (stowed position)
2.13 m
DLength (stowed position)
6.65 m
EMachine width
2.29 m
FWheelbase
2.03 m
GGround clearance under chassis
0.37 m
Rental at RK Rental

What does renting the Genie Z-45/25J RT include?

  • We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
  • Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
  • Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
About the machine

What is the Genie Z-45/25J RT used for?

The Z-45/25J RT is a rough terrain articulating cherry picker with a short 1.52 m jib at the end of the boom. The jib lets you position the basket precisely at a beam, pipeline or eaves without repositioning the whole machine. The 0.76 × 1.83 m platform holds 2 people, and the boom clears obstacles up to 7.14 m, which is useful when working behind a fence, over a canopy or over the roof of a lower building.

4WD, rough terrain tyres and 0.37 m of ground clearance let it reach work points across a construction site, and zero turntable tail swing allows the upper structure to rotate next to a wall or within a road lane without the counterweight extending beyond the chassis footprint. With the platform raised the lift travels at 1.1 km/h, and when stowed at up to 5 km/h. The combustion engine requires good ventilation when working in halls.

Before driving into a building, check the dimensions: 6.65 m length, 2.29 m width and 2.13 m height when stowed, with an unladen weight of 6,515 kg. Tyre contact pressure is 414 kPa and floor pressure is 9.12 kPa, and these should be compared with the load capacity of the floor slab or car park. Among articulating boom lifts of similar height, the Genie stands out for its compact slewing footprint.

  • Work over obstacles
  • Installations under eaves and cornices
  • Work right next to walls
  • Servicing pipelines and pipe racks
  • Work within the road reserve
  • Tree care
RK Rental · fajnepodnosniki.pl · Brzoza near Bydgoszcz · wynajem@fajnepodnosniki.plTechnical data according to the manufacturer, indicative values · updated: · RK-W/GENIE-Z-45-25J

16 m · similar machines

What can replace the Genie Z-45/25J RT? Machines with similar specifications

JLG 450AJ SII for rent

JLG

JLG 450AJ SII

Height
15.72 m
Capacity
230 kg
Weight
7,400 kg
Data sheet
Haulotte HA16 PX for rent

Haulotte

Haulotte HA16 PX

Height
16 m
Capacity
230 kg
Weight
6,950 kg
Data sheet
Haulotte HA16 RTJ for rent

Haulotte

Haulotte HA16 RTJ

Height
16 m
Capacity
230 kg
Weight
6,095 kg
Data sheet
Manitou 160 ATJ for rent

Manitou

Manitou 160 ATJ

Height
16.02 m
Capacity
230 kg
Weight
6,160 kg
Data sheet
Comparison of the Genie Z-45/25J RT with equivalent machines
ModelWorking heightCapacityOutreachWidthWeightPower source
Genie Z-45/25J RT · this sheet15.86 m227 kg7.52 m2.29 m6,515 kgDiesel
JLG 450AJ SII15.72 m230 kg7.47 m2.08 m7,400 kgDiesel
Haulotte HA16 PX16 m230 kg9.2 m2.3 m6,950 kgDiesel
Haulotte HA16 RTJ16 m230 kg8.3 m2.3 m6,095 kgDiesel
Manitou 160 ATJ16.02 m230 kg8.3 m2.32 m6,160 kgDiesel

from our sites

Where has the Genie Z-45/25J RT worked? RK Rental projects

Photos from our rentals, transports and servicing of this model: a machine from the RK Rental fleet, not a catalogue render.

Rented Genie Z-45 diesel articulating boom lift (16 m, 4×4) from RK Rental during maintenance of a building façade in Chojnice
ChojniceRental

Façade maintenance: Genie Z-45 articulating boom lift

Rental of a rough terrain articulating boom lift: a Genie Z-45 (diesel articulating, working height approx. 16 m, 4×4 drive) in Chojnice during maintenance work on a building façade. The articulating boom with a jib lets the basket be guided precisely along the wall and reach over obstacles, such as shrubs, a fence or a canopy, without taking up the whole plot. The rough terrain chassis allows the machine to be set up on grass and unpaved ground around the building. Renting a Genie Z-45 cherry picker works well for washing and painting façades, renovation, fitting gutters and rainwater systems and roofing work: safely and without scaffolding.

All RK Rental projects

Genie Z-45/25J RT: frequently asked questions

What does zero tail swing mean on the Genie Z-45/25J RT?

Turntable tail swing is 0 cm, so when the upper structure rotates its rear does not extend beyond the chassis footprint. This makes work easier next to walls, in narrow passages and within a traffic lane, and reduces the zone that has to be secured behind the machine.

At what height does the Genie Z-45/25J RT clear an obstacle?

Up-and-over clearance is 7.14 m, and the 1.52 m jib lets you fine-tune the basket position further. Maximum horizontal outreach is 7.52 m.

Can the Genie Z-45/25J RT drive onto a floor slab or into a multi-storey car park?

That depends on the load-bearing capacity of the structure: the machine's unladen weight is 6,515 kg, tyre contact pressure is 414 kPa and floor pressure is 9.12 kPa. These figures must be compared with the permissible load of the floor slab before driving onto it.

What is the working height of the Genie Z-45/25J RT?

The working height of the Genie Z-45/25J RT is 15.86 m. Working height is the platform height plus the reach of the person working on it (2 m is assumed), so a machine is chosen for the work location, not for your own height.

What is the capacity of the Genie Z-45/25J RT?

The capacity of the Genie Z-45/25J RT is 227 kg. The figure includes the operator, tools and material taken onto the platform: everything that goes up counts towards the capacity.

What is the horizontal outreach of the Genie Z-45/25J RT?

The horizontal outreach of the Genie Z-45/25J RT is 7.52 m. This is how far the machine reaches sideways from its chassis, that is, over an obstacle such as a stockpile, ditch, greenery, fence or parked car.

Is the Genie Z-45/25J RT suitable for use inside a building?

The Genie Z-45/25J RT has diesel 4x4 drive, so it is intended for work outdoors and on rough ground. For enclosed spaces we choose an electric machine, because a diesel engine releases exhaust fumes where people breathe.

What are the dimensions of the Genie Z-45/25J RT and how much does it weigh?

The Genie Z-45/25J RT measures 6.65×2.29×2.13 m (L × W × H) and weighs 6,515 kg. These figures decide access to the work location: the width of the gate and route, the load-bearing capacity of the floor or ground, and the means of transport.

Do I need a UDT licence to operate the Genie Z-45/25J RT?

Yes. Operating a self-propelled mobile elevating work platform independently requires a UDT qualification certificate (UDT is the Polish Office of Technical Inspection). RK Rental runs its own training courses with an official examination. You can ask about renting with an operator when you request a quote; this is possible when one of our service technicians qualified as an operator is free on that date.

Do you deliver the Genie Z-45/25J RT to the work site?

Yes, we arrange transport and deliver machines across Poland, from our base in Brzoza near Bydgoszcz, most often around Bydgoszcz, Toruń and Poznań. The machine arrives on site after inspection, with a current UDT inspection.

Can I buy the Genie Z-45/25J RT after renting it?

Yes, this is our “Buy the rented machine” scheme. If the Genie Z-45/25J RT works well for you, you can buy the machine you rented, and part of the rental cost can be deducted from the purchase price. We agree the details in the quote.

How much does it cost to rent the Genie Z-45/25J RT?

Renting the Genie Z-45/25J RT (the 16 m working height class) costs from PLN 200 + VAT per day. A day costs PLN 350–500 for a rental of 1–3 days, PLN 300 up to 7 days, PLN 250 up to 14 days and PLN 200 over 14 days. Rates are net per day, excluding transport (transport is quoted separately, from PLN 250 net). The lowest rate applies to rentals of more than 14 days. We confirm the final price when you book, because it depends on the model, the rental period and the delivery location.
