JLG · Diesel articulating boom lift
JLG 510AJ
Diesel articulating boom lift rental · working height 17.81 m · capacity 230 kg · 4×4 drive
- Working height
- 17.81m
- Capacity
- 230kg
- Horizontal outreach
- 9.48m
- Width
- 2.26m
- Weight
- 7,650kg
Renting the JLG 510AJ articulating boom lift provides 17.81 m of working height, 9.48 m of horizontal outreach and 230 kg of capacity. It is a versatile diesel cherry picker for construction sites and work on industrial facilities. It combines long horizontal reach with a transport length of 7.68 m, and 4WD with rough terrain tyres lets it reach the job across unsurfaced ground. We deliver it to Bydgoszcz, Toruń, Poznań and anywhere in Poland.
JLG
Rental
JLG 510AJ: from PLN 210 + VAT per day
The lowest rate applies to rentals of more than 14 days; for shorter rentals the daily rate is higher. We arrange delivery across Poland.
See the price list: rates for 1–3, 7 and 14 daysAsk about availability and price Buy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the JLG 510AJ?
- Working height
- 17.81 m
- Platform height
- 15.81 m
- Capacity
- 230 kg
- Horizontal outreach
- 9.48 m
- Unladen weight
- 7,650 kg
- Power source
- Diesel
- Engine type
- Diesel
- Drive
- 4WD
- Tyres
- Rough terrain
- Intended use
- Outdoor
- Horizontal outreach
- 9.48 m
- Up-and-over height
- 7.67 m
- Turntable rotation
- 360° (non-continuous)
- Platform rotation (hydraulic)
- 180°
- Jib length
- 1.24 m
- Jib articulation
- 145° (+78° / −67°)
- Optional platforms
- 0.76 × 1.22 m; 0.76 × 1.52 m
- Tail swing
- zero (zero tailswing)
- Inside turning radius
- 2.00 m
- Outside turning radius
- 5.00 m

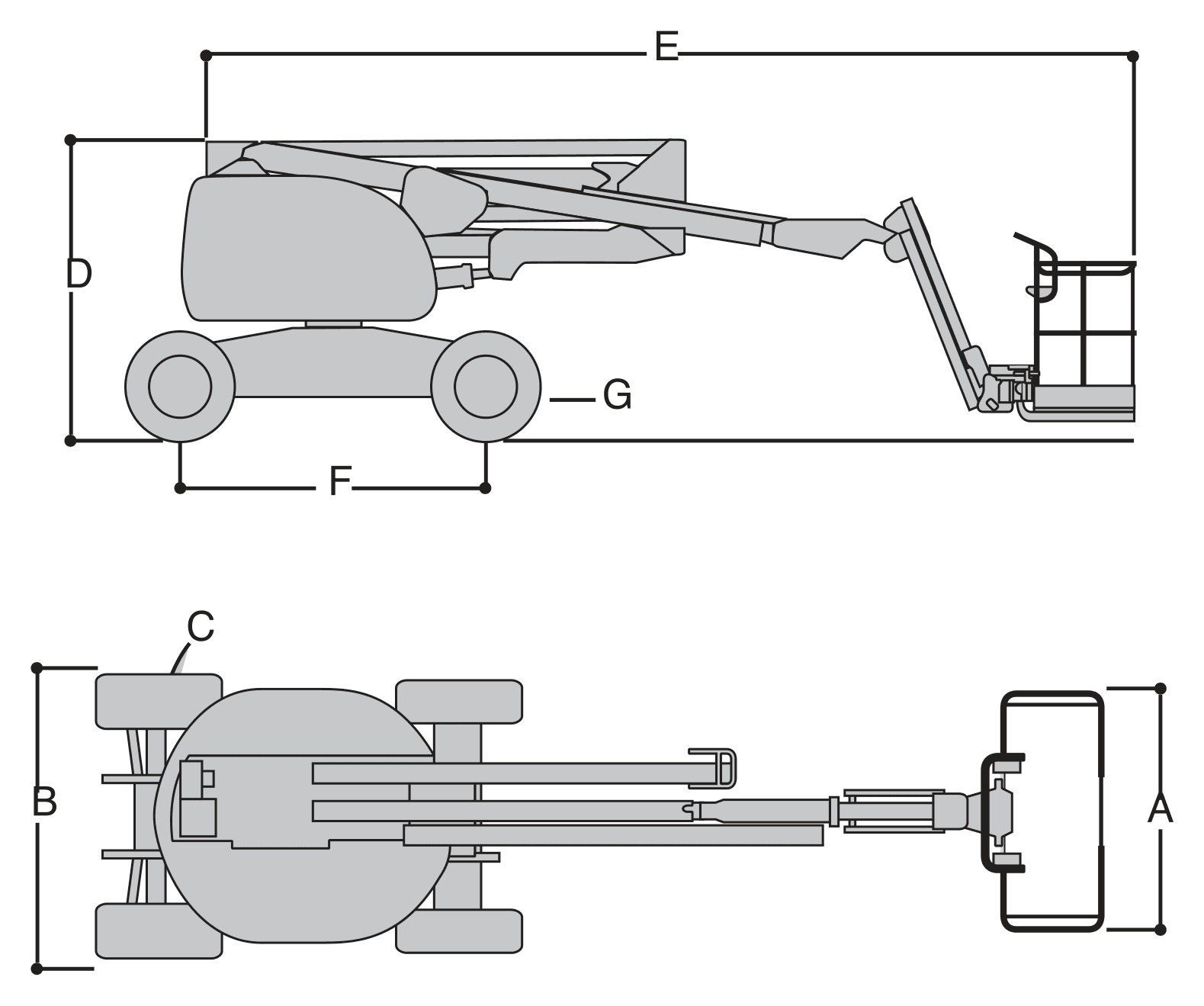

What are the dimensions of the JLG 510AJ?
- APlatform dimensions (W × L)
- 0.76 m × 1.83 m
- BOverall width
- 2.26 m
- CTail swing (in working position)
- 0 m (zero tailswing)
- DStowed height (transport)
- 2.26 m
- EOverall length (stowed)
- 7.68 m
- FWheelbase
- 2.34 m
- GGround clearance
- 0.36 m
What does renting the JLG 510AJ include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
What is the JLG 510AJ used for?
The JLG 510AJ is an articulating MEWP with a diesel engine, 4WD and rough terrain tyres. It performs well wherever the platform has to be brought over an obstacle or between structural members: erecting industrial halls, façade installations, roofing work and maintenance of industrial facilities. The articulating boom lets you bring the platform to the work point without frequently repositioning the whole machine.
Access to the work position is determined by the stowed dimensions of 7.68 × 2.26 × 2.26 m and the weight of 7,650 kg. Before driving onto a floor slab, newly laid block paving or a car park surface, check its permissible load. As a diesel machine it works primarily outdoors; indoors only in large, well-ventilated halls.
In the class of around 18 m, the JLG 510AJ is a good choice when horizontal reach matters and the chassis dimensions need to stay moderate. The 1.83 × 0.76 m platform holds workers with tools and materials within the 230 kg capacity. The model operates in the RK Rental fleet, has a current UDT inspection and, if needed, our mobile service team comes out to the site.
- Steel hall erection
- Roofing work and gutters
- Façade installations
- Maintenance of industrial facilities
- Installation of signage and lighting
