Manitou · Telehandler
Manitou MT 1740 SLT
Telehandler rental · lifting height 16.65 m · capacity 4,000 kg · 4×4 drive
- Lifting height
- 16.65m
- Capacity
- 4,000kg
- Max. outreach
- 12.35m
- Width
- 2.42m
- Weight
- 11,220kg
Renting the Manitou MT 1740 SLT telehandler gives you 16.65 m lift height, 4,000 kg capacity and 12.35 m outreach, making it the choice for lifting materials onto roofs, higher floor slabs and scaffolding, including over an excavation. It stands out for its boom with three telescopic sections, ±7° frame levelling and generous off-road angles: a 45.5° ramp angle and a 50° departure angle. We deliver this machine from the RK Rental fleet to Bydgoszcz, Toruń, Poznań and across Poland.
Manitou
Rental
Manitou MT 1740 SLT: availability and price on request
We quote the rate for this machine on request: it depends on the rental period and the work location. We arrange delivery across Poland.
Ask about availability and price Buy the rented machine: will it prove itself on the job? You can buy it from us, with the possibility of deducting part of the rental costs from the price of the machine.What are the specifications of the Manitou MT 1740 SLT?
- Lift height
- 16.65 m
- Capacity
- 4,000 kg
- Maximum outreach
- 12.3 m
- Unladen weight
- 11,220 kg
- Power source
- Diesel
- Engine type
- Diesel
- Drive
- 4WD
- Fork length
- 1200 mm
- Intended use
- Outdoor
- Max. outreach (on outriggers)
- 12.35 m
- Tipping load at max. outreach (on outriggers)
- 957 kg
- Breakout force (bucket, ISO 8313)
- 7,000 daN
- Lifting / lowering time (unladen / laden)
- 15/16 s / 10/9 s
- 1st and 2nd section extension time (unladen / laden)
- 21.8 / 24.4 s
- 3rd section extension time, on outriggers only (unladen / laden)
- 10.4 / 11.5 s
- 1st and 2nd section retraction time (unladen / laden)
- 17.7 / 17.4 s
- 3rd section retraction time (unladen / laden)
- 9.7 / 8.7 s
- Carriage tilt-back / tilt-forward time
- 5.3 s / 8.4 s
- Carriage rotation
- 124° (12° / 112°)
- Forks (length × width × thickness)
- 1,200 × 125 × 50 mm

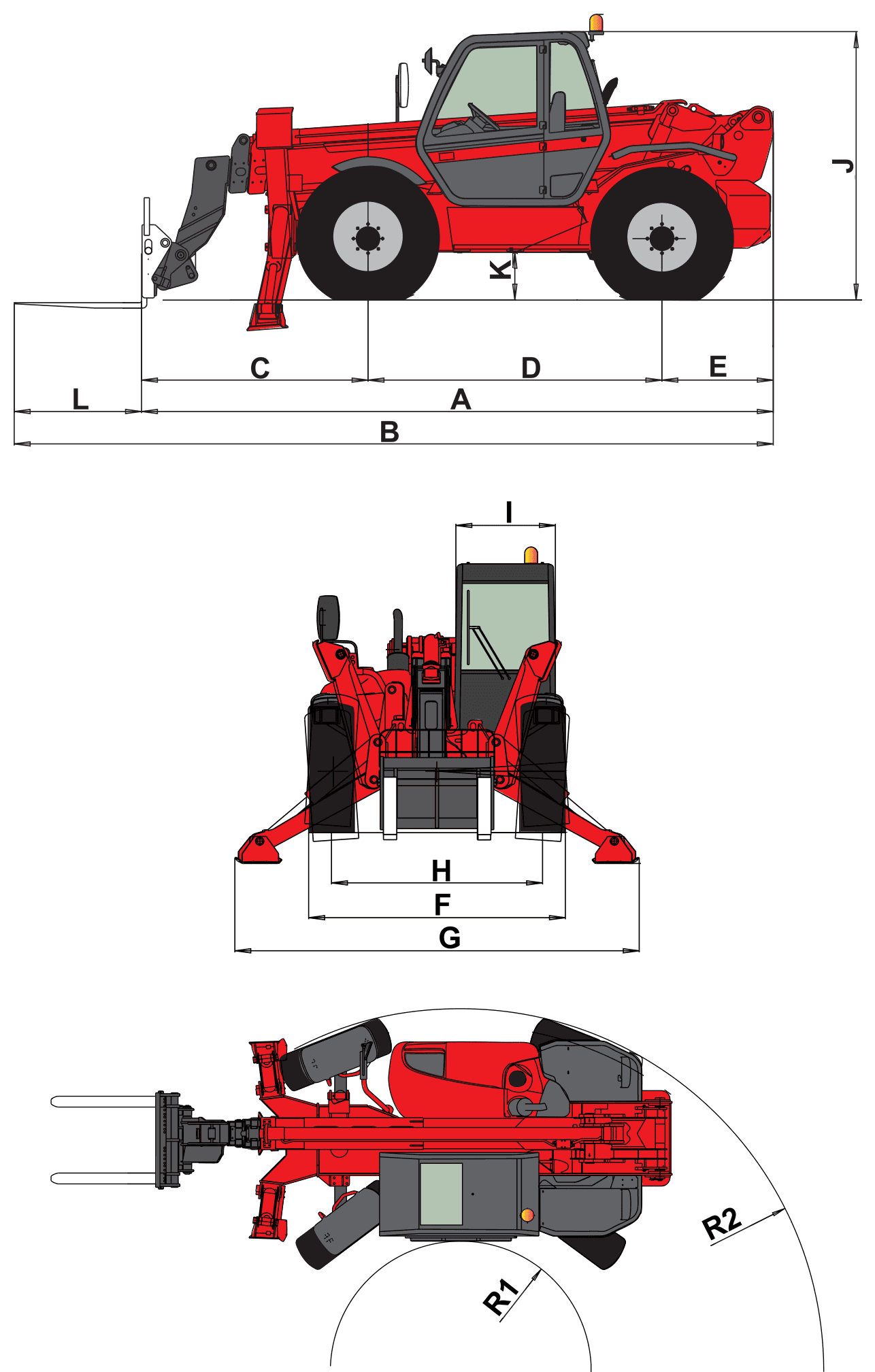

What are the dimensions of the Manitou MT 1740 SLT?
- AOverall length to carriage face
- 5.98 m
- BOverall length with forks
- 7.18 m
- CDistance from front axle to carriage face (fork heel)
- 2.16 m
- DWheelbase
- 2.77 m
- EDistance from rear axle to rear of machine
- 1.05 m
- FOverall width (over wheels)
- 2.425 m
- GWidth with outriggers lowered
- 3.82 m
- HFront track width
- 1.99 m
- ICab width
- 0.95 m
- JOverall height (to cab roof)
- 2.605 m
- KGround clearance under chassis centre
- 0.475 m
- LFork length
- 1.20 m
- R1Inside turning radius
- 1.47 m
- R2Outside turning radius over wheels
- 4.168 m
What does renting the Manitou MT 1740 SLT include?
- We arrange transportDelivery and collection of the machine: Bydgoszcz, Toruń, Poznań and all over Poland.
- Current UDT inspectionThe machine arrives after inspection, with a valid UDT inspection (UDT is the Polish Office of Technical Inspection) and full documentation.
- Mobile serviceRepair on site at the customer's location, on the construction site, in the hall or warehouse; if needed, a replacement machine from a fleet of over 250 machines.
What is the Manitou MT 1740 SLT used for?
The MT 1740 SLT is one of the taller telehandlers in the Manitou range, designed for sites where loads have to be placed on high floor slabs, the roofs of industrial buildings or the decks of façade scaffolding. The boom raises the carriage to 16.65 m and reaches 12.35 m horizontally, so a pallet can be set down well back from the edge of an excavation or over an obstacle. The 1,200 × 125 × 50 mm forks and a carriage with a 124° rotation range handle pallets, reinforcing steel and lighter precast elements.
4×4 drive, 0.48 m of ground clearance, a 45.5° ramp angle and a 50° departure angle allow the machine to cross embankments and churned-up construction sites. Hydraulic outriggers (3.82 m spread) and ±7° frame levelling make it possible to work on uneven ground. This telehandler is 2.42 m wide and 2.60 m high (2.785 m with the warning beacon) and weighs 11,220 kg; these figures are worth checking before driving through a door or onto a floor slab.

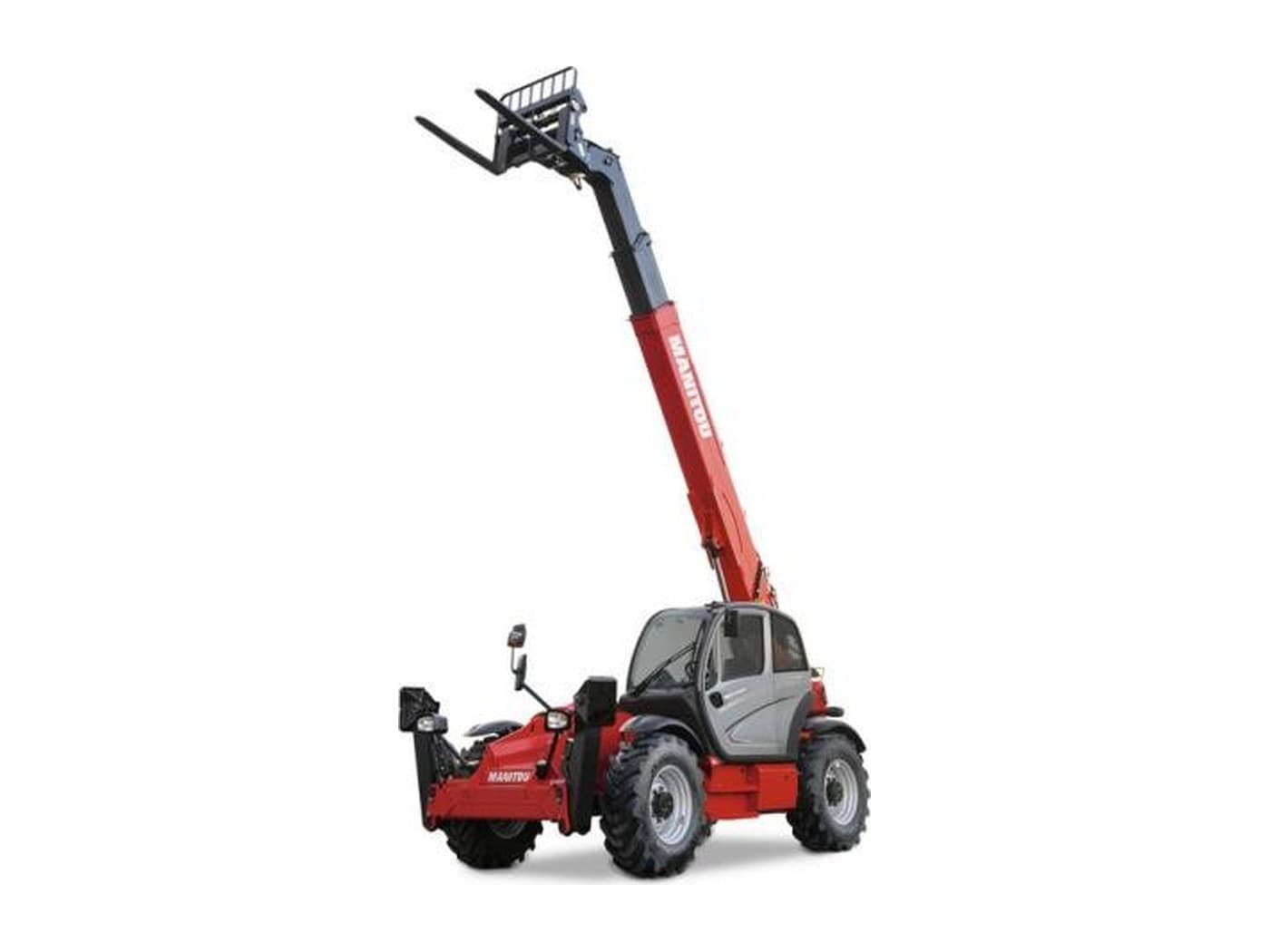

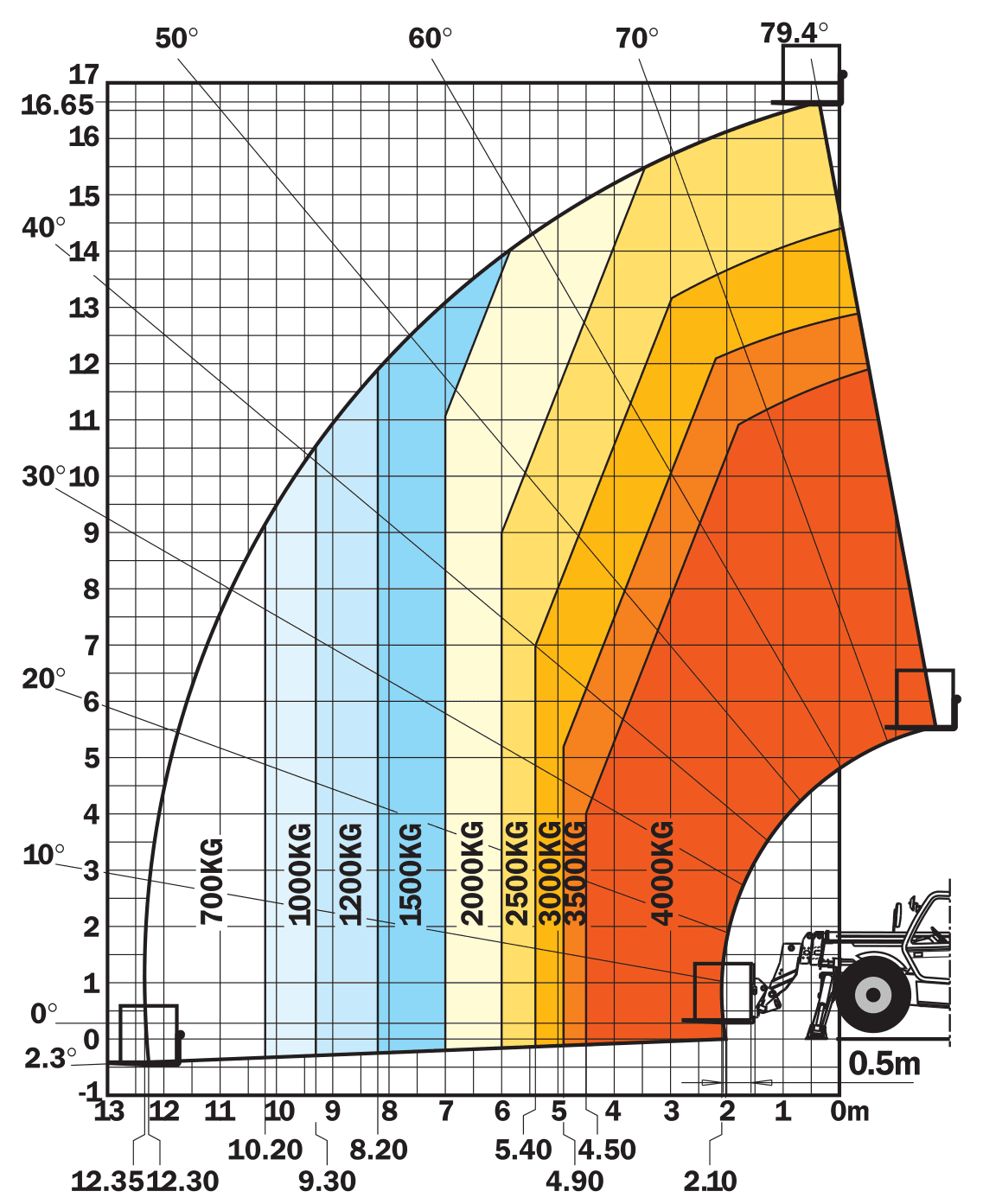

The key factor when choosing is the load chart to EN 1459: the full 4,000 kg applies at short outreach, while at maximum outreach on outriggers the spec sheet gives a tipping load of 957 kg; this is the stability limit, and the permitted load in that position is read from the load chart. The 100 hp Perkins 1104C-44 Turbo engine and 9,700 daN of drawbar pull provide reserve power when travelling around the site. Where height is not critical, the lower MT 1440 SLT model is often sufficient.
- Lifting materials onto roofs
- Supplying façade scaffolding
- Placing loads over an excavation
- Installing light precast elements
- Unloading deliveries on site
- Working on a churned-up site
